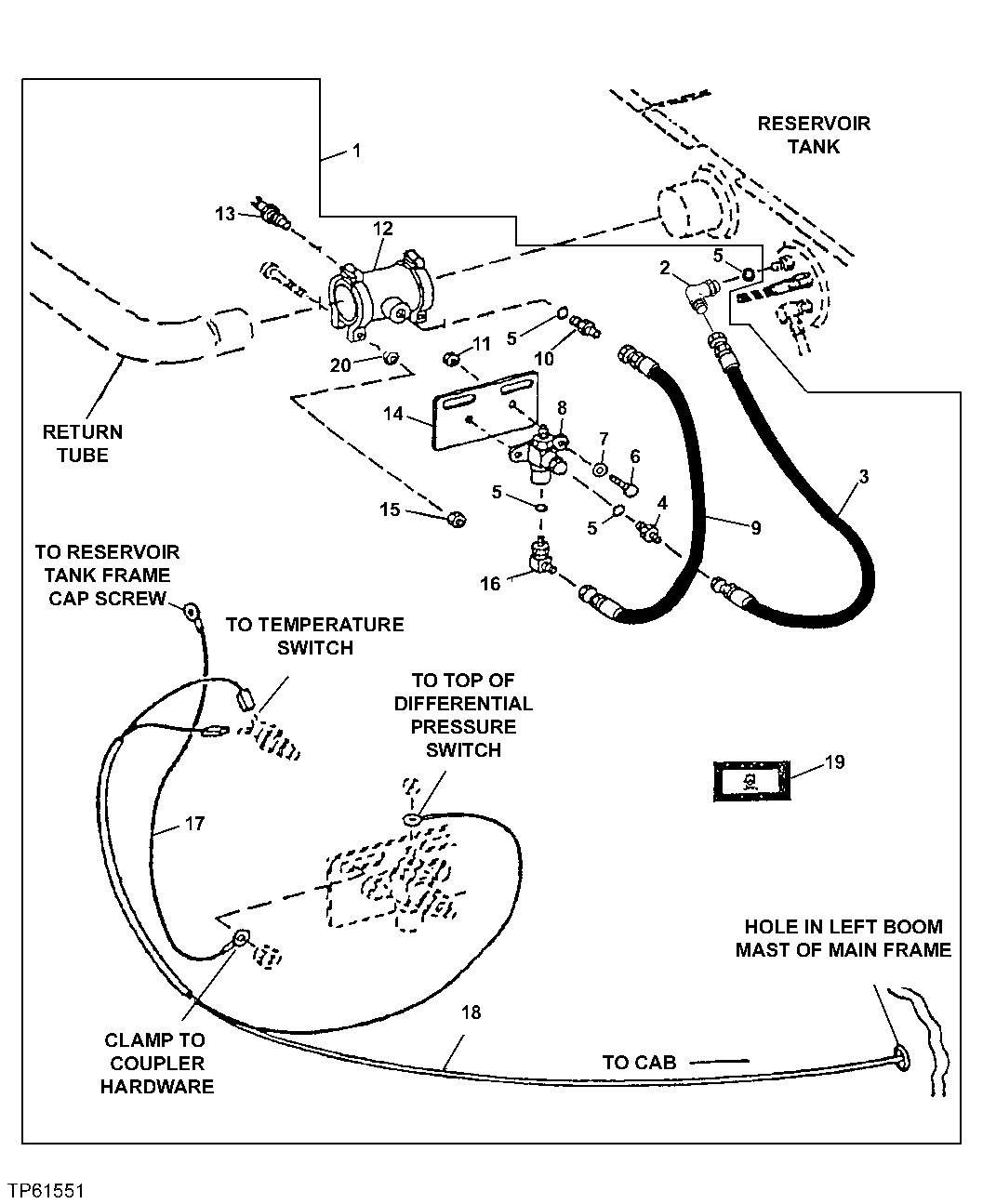

Запчасти John Deere 30LCR 292 - HYDRAULIC FILTER RESTRICTION INDICATOR 2160 Vehicle Hydraulics

1

Field Installation Kit

(INCLUDES AE24616 AND A T134346)( AT189640 NLA)

1шт.

2

4154670

Elbow Fitting

(SUB FOR TH100951)

1шт.

3

AH97777

Hydraulic Hose

11.1252" X 406 mm (16") X 11.1252"

1шт.

4

H75414

Adapter Fitting

1шт.

5

M800650

Packing

4шт.

6

19H1919

Cap Screw

1/4" X 5/8"

2шт.

7

24H1286

Washer

9/32" X 1/2" X 1/16"

2шт.

8

AT131436

Pressure Switch

1шт.

9

AT38628

Hydraulic Hose

9/16" X 381 mm (15") X 9/16"

1шт.

10

R27212

Fitting

1шт.

11

14M7273

Nut

M8

2шт.

12

AT134346

Coupling

1шт.

13

AT131437

Switch

"NOT USED ON HYEX EXCAVATOR"

1шт.

14

T138910

Bracket

1шт.

15

14M7274

Nut

M10

2шт.

16

AT35121

Elbow Fitting

1шт.

17

AR76140

Wiring Lead

1шт.

18

AT196334

Wiring Harness

(SUB FOR AT157668)

1шт.

19

T153187

Label

(AMBER) (SUB FOR T143272 CLEAR LABEL)

1шт.

20

24M7036

Washer

9 X 16 X 1.600 mm

4шт.

21

R44302

Tie Band

(NOT ILLUSTRATED)

7шт.

22

14H786

Nut

1/4" (NOT ILLUSTRATED)

2шт.
