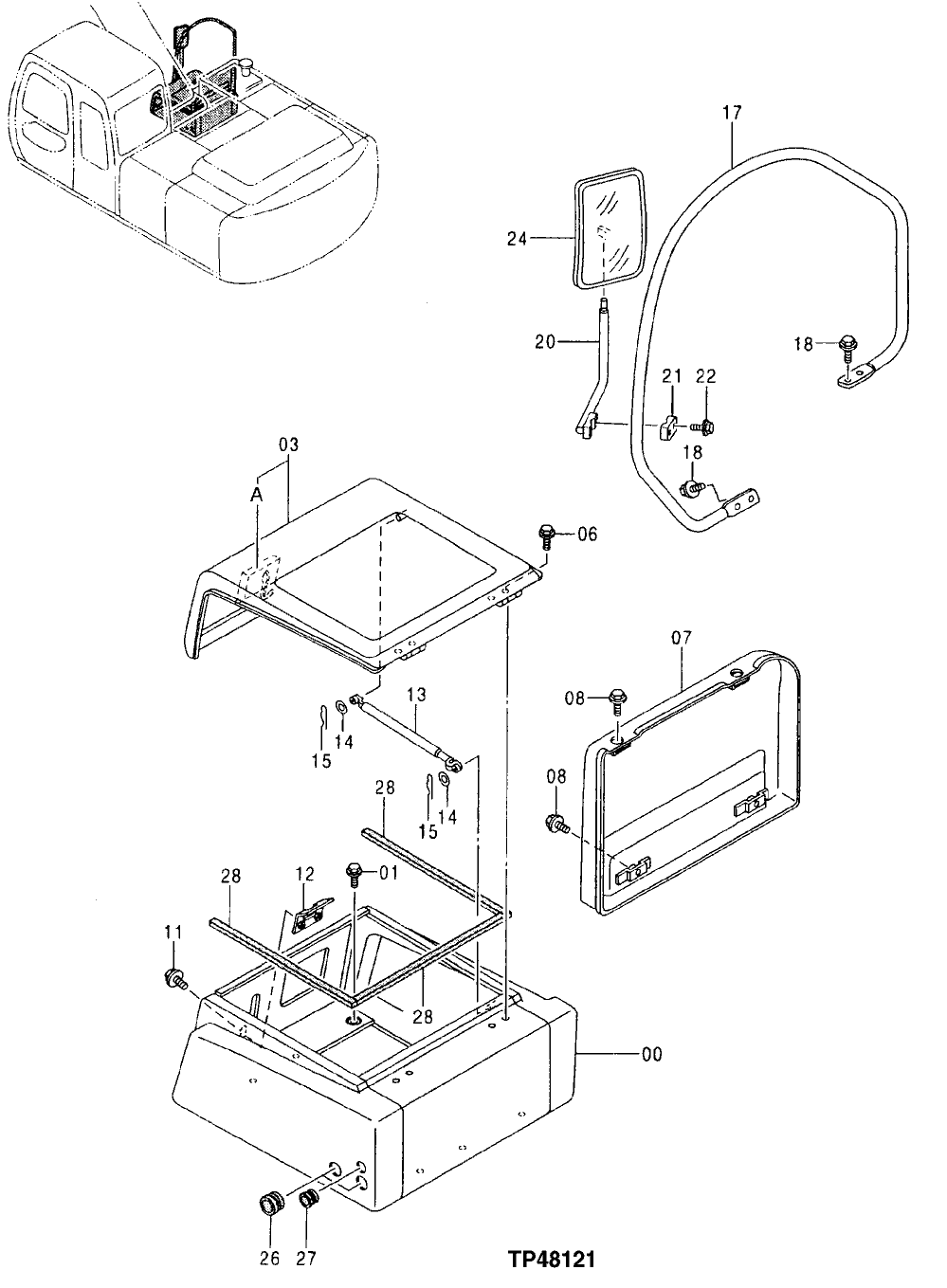

Запчасти John Deere 30LCR 270 - TOOL BOX COVER 1910 Hood Or Engine Enclosure

0

6015188J

Toolbox

SUB FOR AT214328 OR 6015188

1шт.

1

12M7066

Lock Washer

10 mm

6шт.

19M7402

Cap Screw

M10 X 25

6шт.

24M7028

Washer

10.500 X 20 X 2 mm

6шт.

3

6015244J

Cover

SUB FOR AT214329 OR 6015244

1шт.

3A

4363915

Latch

SUB FOR AT215944

1шт.

6

12M7066

Lock Washer

10 mm

4шт.

19M7402

Cap Screw

M10 X 25

4шт.

7

7030510J

Cover

SUB FOR AT214341 OR 7030510

1шт.

8

19M7662

Cap Screw

M10 X 30

4шт.

24M7346

Washer

11 X 20 X 2 mm

4шт.

12M7058

Lock Washer

12 mm SUB FOR 12M7067

4шт.

11

19M7402

Cap Screw

M10 X 25

2шт.

24M7346

Washer

11 X 20 X 2 mm

2шт.

12M7058

Lock Washer

12 mm SUB FOR 12M7067

2шт.

12

9745798

Catch

SUB FOR AT214409

1шт.

13

4352457

Cylinder

SUB FOR AT213967

1шт.

14

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

15

H132922

Cotter Pin

2шт.

17

8070627

Rail

1шт.

8070627

Rail

1шт.

18

12M7058

Lock Washer

12 mm SUB FOR 12M7067

4шт.

19M8011

Cap Screw

M12 X 30

4шт.

20

Arm

AT218211 NO LONGER AVAILABLE

1шт.

8076066

Arm

1шт.

21

AT219494

Clamp

SUB FOR P63173

1шт.

4201441

Clamp

SUB FOR AT131743

1шт.

22

19M8359

Cap Screw

M8 X 45

2шт.

Washer

12M7065 NLA

2шт.

24

4317906

Rear View Mirror

1шт.

4420724

Rear View Mirror

1шт.

26

4276215

Grommet

SUB FOR AT155307

2шт.

27

4613243

Grommet

SUB FOR AT122152, 94-2807

1шт.

28

4357933

Isolator

SUB FOR AT215527

3шт.
