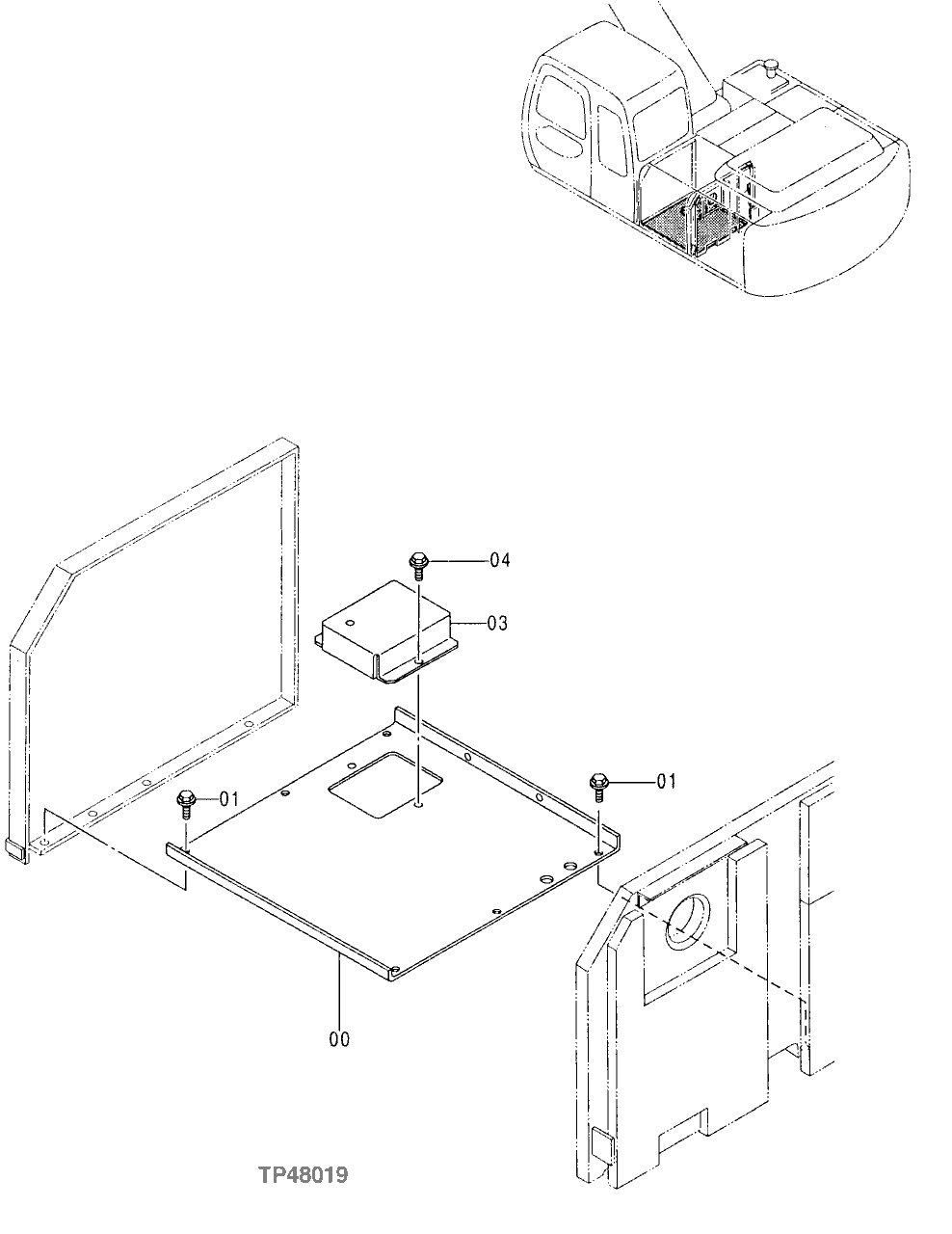

Запчасти John Deere 30LCR 267 - COVER 1910 Hood Or Engine Enclosure

0

7030287

Cover

(SUB FOR AT217853)

1шт.

1

19M7402

Cap Screw

M10 X 25

6шт.

24M7346

Washer

11 X 20 X 2 mm

6шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

6шт.

3

3068869

Cover

(SUB FOR AT213754)

1шт.

4

19M7662

Cap Screw

M10 X 30

2шт.

24M7346

Washer

11 X 20 X 2 mm

2шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

2шт.
