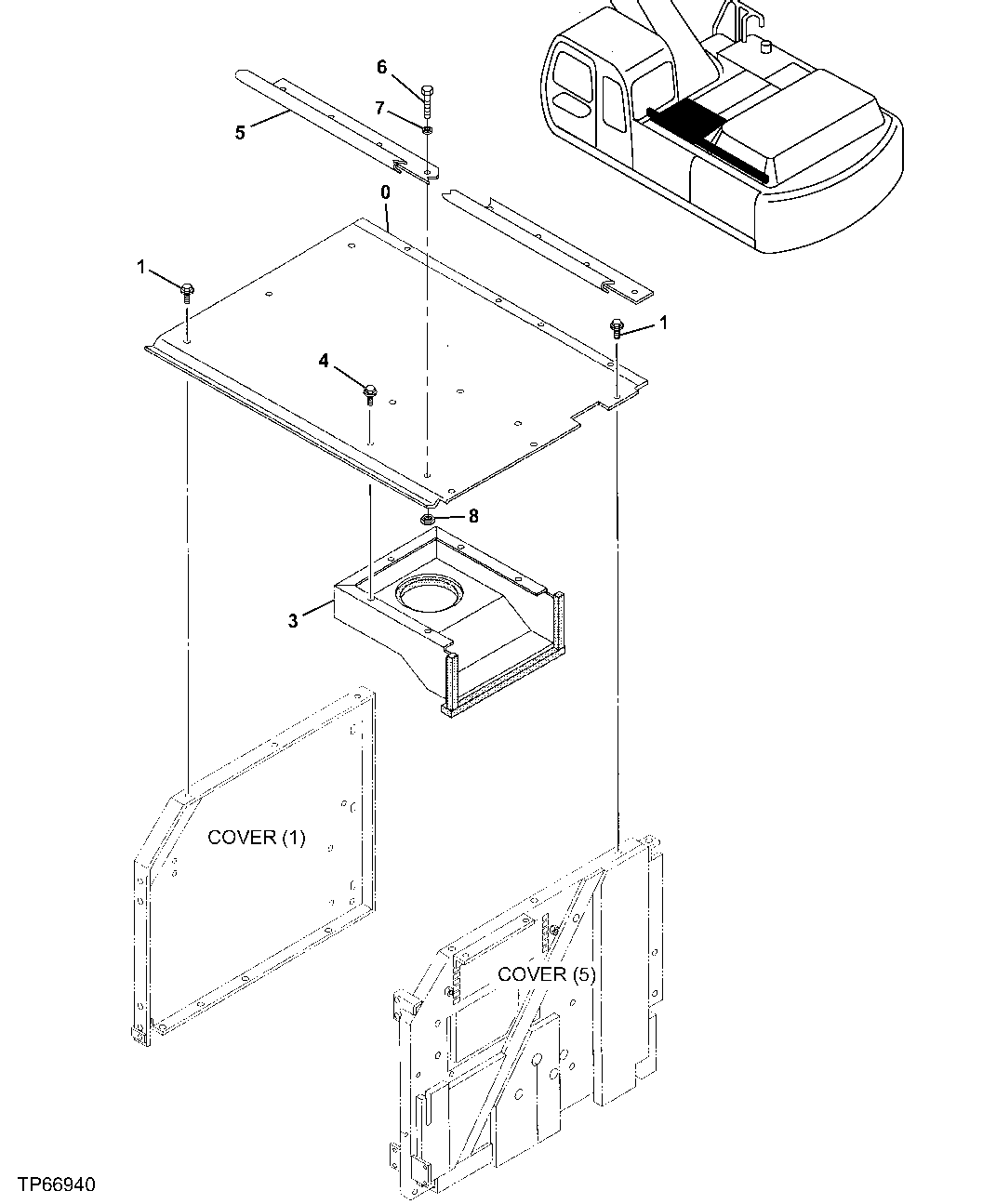

Запчасти John Deere 30LCR 263 - COVER 1910 Hood Or Engine Enclosure

0

7033184

Cover

(SUB FOR AT218192)

1шт.

1

19M7662

Cap Screw

M10 X 30

6шт.

24M7028

Washer

10.500 X 20 X 2 mm

6шт.

12M7066

Lock Washer

10 mm

6шт.

3

7032021

Cover

(SUB FOR AT215584)

1шт.

4

19M7402

Cap Screw

M10 X 25

5шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

5шт.

24M7346

Washer

11 X 20 X 2 mm

5шт.

5

500610

Handrail

LH-SHOWN (90"), RH-NOT ILLUSTRATED (120"), GR MANUFACTURING PART, OR DER DIRECTLY FROM GR MANUFACTURING

2шт.

6

19M7358

Cap Screw

M10 X 40

6шт.

19M7658

Cap Screw

M10 X 50

7шт.

7

24M7028

Washer

10.500 X 20 X 2 mm

14шт.

8

14M7152

Nut

M10

7шт.
