Запчасти John Deere 30LCR 254 - AIR CONDITIONER HOUSING UNIT COMPONENTS 1830 Heating & Air Conditioning

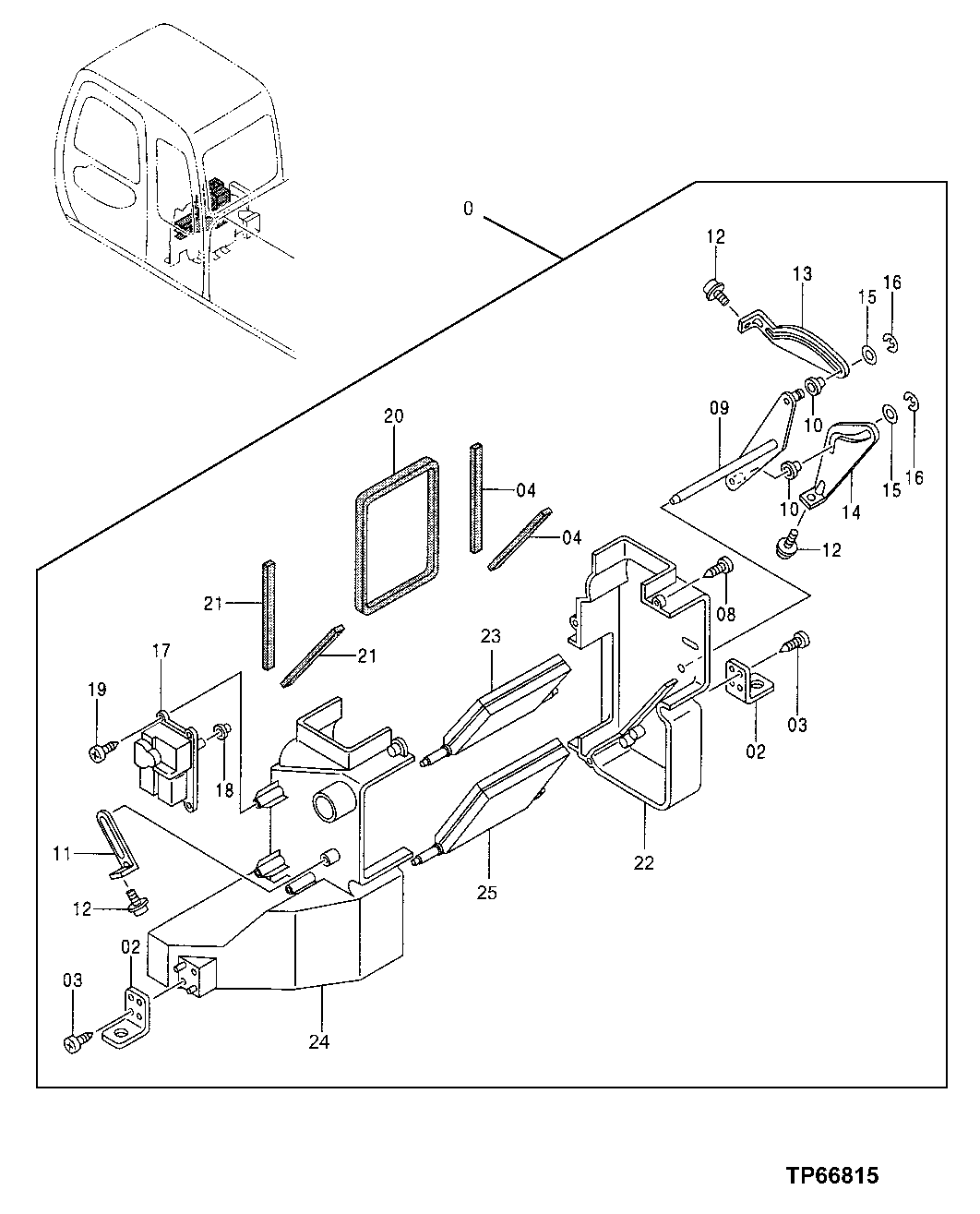

Схема запчастей John Deere 30LCR - 254 - AIR CONDITIONER HOUSING UNIT COMPONENTS 1830 Heating & Air Conditioning

Артикул

Название

Примечание

Количество

0

4361107

Housing

(SUB FOR AT215531)

1шт.

2

4382865

Angle

(SUB FOR AT181056)

2шт.

3

4236448

Screw

(SUB FOR AT181024)

4шт.

4

4382866

Isolator

(SUB FOR AT181057)

2шт.

8

4382883

Screw

(SUB FOR AT181011)

4шт.

9

4382870

Lever

(SUB FOR AT181059)

1шт.

10

4382871

Bushing

(SUB FOR AT181060)

2шт.

11

4382872

Lever

(SUB FOR AT181061)

1шт.

12

J460308

Screw With Washer

(SUB FOR AT181025)

3шт.

13

4382873

Lever

(SUB FOR AT181062)

1шт.

14

4382874

Lever

(SUB FOR AT181063)

1шт.

15

4382875

Bushing

(SUB FOR AT181064)

2шт.

16

4382876

Snap Ring

(SUB FOR AT181066)

2шт.

17

4382877

Electric Motor

(SUB FOR AT181067)

1шт.

18

4382878

Bushing

(SUB FOR AT181068)

1шт.

19

4382859

Screw

(SUB FOR AT181069)

3шт.

20

4382880

Isolator

(SUB FOR AT181070)

1шт.

21

4382881

Isolator

(SUB FOR AT181071)

2шт.

22

4382864

Housing

(SUB FOR AT218134)

1шт.

23

4382867

Door

(SUB FOR AT218135)

1шт.

24

4382869

Housing

(SUB FOR AT218137)

1шт.

25

4382868

Door

(SUB FOR AT218136)

1шт.

Выбрано товаров: 22
