Запчасти John Deere 30LCR 249 - AIR CONDITIONER PIPINGS 1830 Heating & Air Conditioning

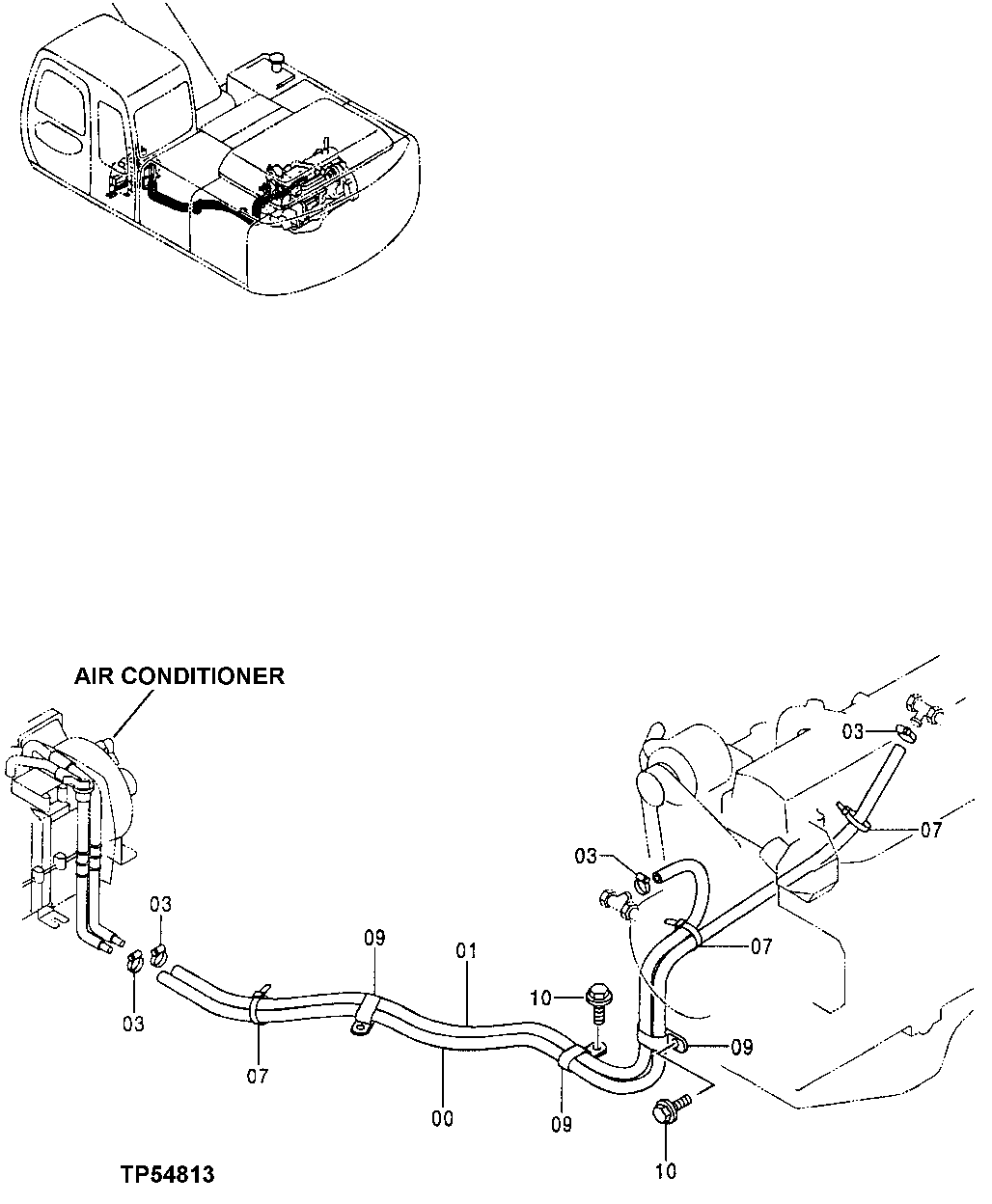

Схема запчастей John Deere 30LCR - 249 - AIR CONDITIONER PIPINGS 1830 Heating & Air Conditioning

Артикул

Название

Примечание

Количество

0

Hose

(FURNISH TY22561 BULK MATERIAL CUT TO LE NGTH) ( P63188 NOT AVAILABLE FOR SERVICE)

1шт.

1

Hose

(FURNISH TY22561 BULK MATERIAL CUT TO LE NGTH) ( P63188 NOT AVAILABLE FOR SERVICE)

1шт.

3

WZ2141223

Hose Clamp

(SUB FOR AA34965)

4шт.

7

H77698

Tie Band

3шт.

9

R50454

Clamp

(SUB FOR TH109445 OR 4192034)

3шт.

10

12M7066

Lock Washer

10 mm

2шт.

19M7938

Cap Screw

M10 X 20

2шт.

Выбрано товаров: 7
