Запчасти John Deere 30LCR 239 - SEAT BELT (ORIGINAL SEAT) 1821 Seat And Seat Belts

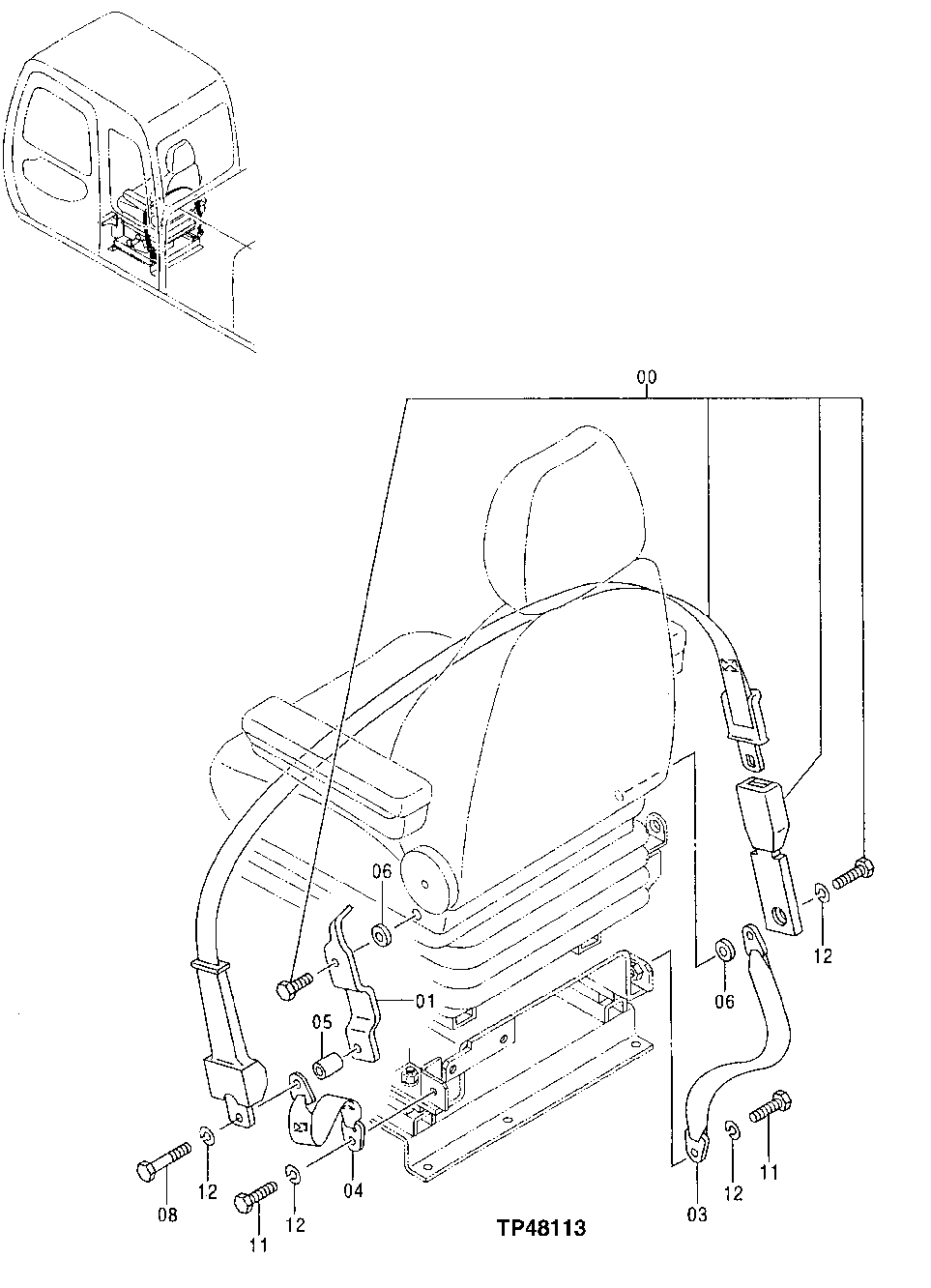

Схема запчастей John Deere 30LCR - 239 - SEAT BELT (ORIGINAL SEAT) 1821 Seat And Seat Belts

Артикул

Название

Примечание

Количество

0

4384239

Seat Belt

(SUB FOR AT215572)

1шт.

1

8068323

Bracket

(SUB FOR AT215609)

1шт.

3

4382410

Strap

(SUB FOR AT215563)

1шт.

4

4372917

Strap

(SUB FOR AT215537)

1шт.

5

4382432

Sleeve

(SUB FOR AT215564)

1шт.

6

4382554

Washer

(SUB FOR AT215565)

2шт.

8

4380534

Cap Screw

(SUB FOR AT215561)

1шт.

11

19H3187

Cap Screw

7/16" X 1-1/2" (SUB FOR AT215492, 4235232)

2шт.

12

12H293

Lock Washer

7/16" (SUB FOR AT215470 OR J219167)

4шт.

Выбрано товаров: 9
