Запчасти John Deere 30LCR 236 - Seat Assembly (Original) 1821 Seat And Seat Belts

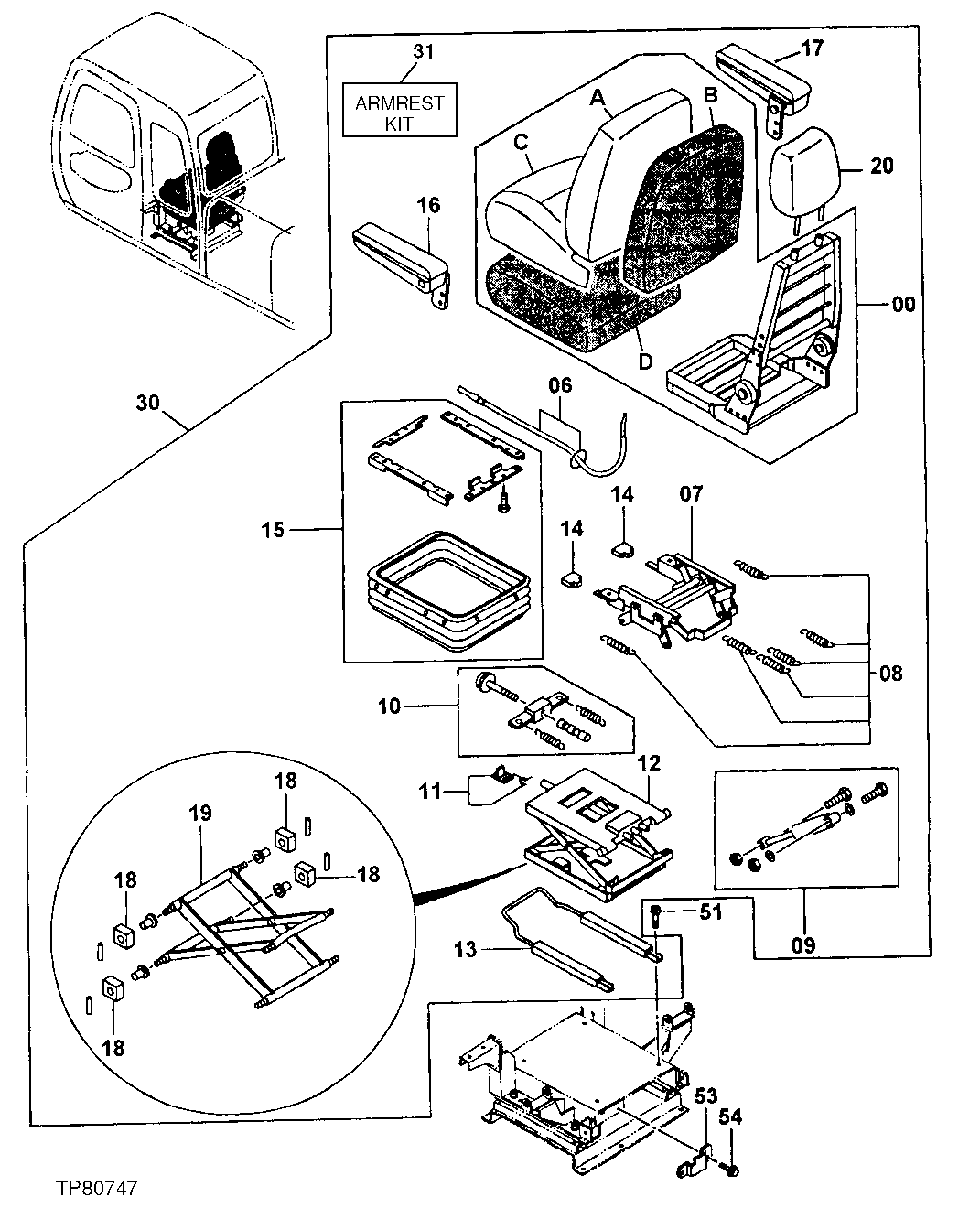

Схема запчастей John Deere 30LCR - 236 - Seat Assembly (Original) 1821 Seat And Seat Belts

Артикул

Название

Примечание

Количество

0

FYA00048169

Cushion

SUB FOR 4392794 AND AT180970

1шт.

0A

Cushion Cover

4392795 AND AT250443 NLA

1шт.

0B

4392796R

Pad

SUB FOR AT309264, 4392796 OR AT250444

1шт.

0C

4392797

Cushion Cover

SUB FOR AT250445

1шт.

0D

4392798R

Pad

SUB FOR AT250446, 4392798 OR AT195279

1шт.

6

4392800R

Cable

SUB FOR AT216522

1шт.

7

4392801R

Stand

SUB FOR AT180971 OR 4392801

1шт.

8

4370199R

Spring

SUB FOR AT180972 OR 4370199

1шт.

9

4392803R

Torsional Damper

SUB FOR AT180973 OR 4392803

1шт.

10

4392804R

Adjuster

SUB FOR AT180974 OR 4392804

1шт.

11

4392805R

Stop

SUB FOR AT180975 OR 43 92805; SUB FOR AT322189

1шт.

12

4392806R

Seat Suspension

SUB FOR AT180976 OR 4392806

1шт.

13

4660734R

Adjuster

SUB FOR AT180977 OR 43928 07 OR 4392807R OR 4660734

1шт.

14

AT329374

Handle

SUB FOR AT216532 OR 4392808R; KNOB

1шт.

15

4392809R

Cover

SUB FOR AT180978 OR 4392809

1шт.

16

AT216533

Armrest

1шт.

AT179815

Armrest

4 INCH WIDE LEFT ARMREST

1шт.

17

AT216534

Armrest

1шт.

AT179816

Armrest

4 INCH RIGHT ARMREST

1шт.

18

4392812R

Bushing

SUB FOR AT180979 OR 4392812; SET OF FOUR

1шт.

19

4392813R

Link

SUB FOR AT180980 OR 4392813

1шт.

20

AT216521

Head Restraint

1шт.

21

19M8818

Screw

M8 X 60 USE WITH 4 INCH WIS E ARMRESTS) (NOT ILLUSTRATED

4шт.

30

Seat

4383546 NO LONGER AVAILABLE, SUB 4454406 SUB FOR AT215571

1шт.

31

AT191447

Kit

CONTAINS 4 ARMREST SCREWS

1шт.

51

19M7647

Screw

M8 X 16 SUB FOR AT217709

4шт.

53

3078471

Bracket

SUB FOR AT215490

1шт.

54

19M7407

Cap Screw

M8 X 25

2шт.

Washer

12M7065 NLA

2шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

Выбрано товаров: 30
