Запчасти John Deere 30LCR 223 - CAB COMPONENTS 1810 OPERATOR ENCLOSURE

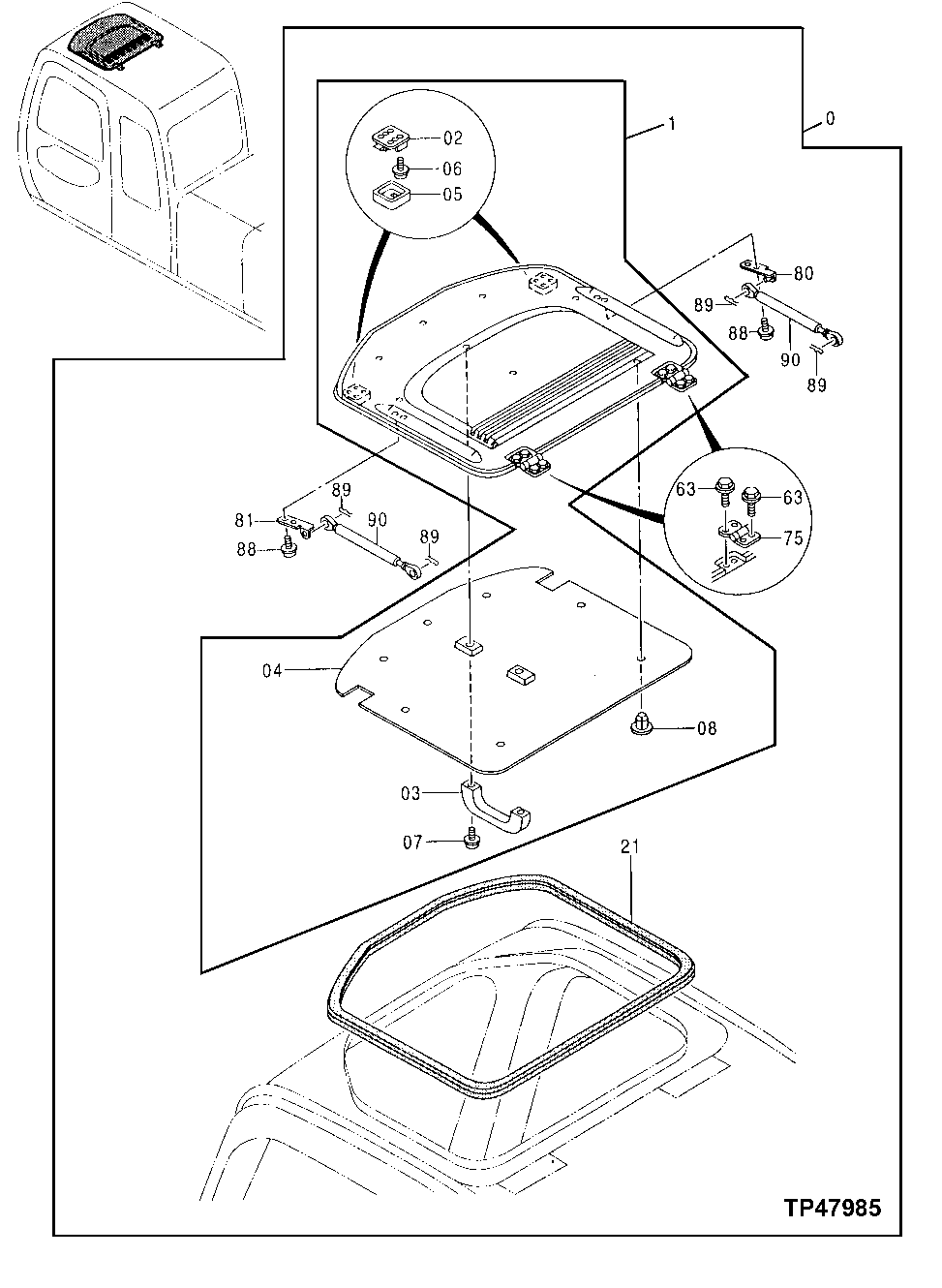

Схема запчастей John Deere 30LCR - 223 - CAB COMPONENTS 1810 OPERATOR ENCLOSURE

Артикул

Название

Примечание

Количество

0

4383439

Cab

SUB FOR AT215570; CONTAINS ALL ITEMS ON THIS PAGE - ADDITIONAL COMPONENTS L ISTED ON PREVIOUS AND FOLLOWING PAGES

1шт.

1

4369611

Roof

SUB FOR AT214115

1шт.

2

4369615

Lock

SUB FOR AT214118

2шт.

3

4204579

Handle

SUB FOR TH108661

1шт.

4

4369613

Headliner

SUB FOR AT214116

1шт.

5

4369616

Cover

SUB FOR AT214119

2шт.

6

21M7265

Screw

M5 X 12

8шт.

7

19M8425

Cap Screw

M6 X 16

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

12M7006

Lock Washer

6 mm

2шт.

8

4369614

Clip

SUB FOR AT214117

7шт.

21

4369553

Weatherstrip

SUB FOR AT214066

2шт.

63

4372220

Screw With Washer

SUB FOR AT214306

8шт.

75

4369620

Hinge

SUB FOR AT214123

2шт.

80

AT307247

Bracket

SUB FOR 4369617; RIGHT

1шт.

81

AT307248

Bracket

SUB FOR 4369618; LEFT

1шт.

88

19M7162

Cap Screw

M8 X 16 SUB FOR AT214308 OR 43722 22, ALONG WITH 24M7036 AND 12M7065

4шт.

24M7036

Washer

9 X 16 X 1.600 mm

4шт.

Washer

12M7065 NLA

4шт.

89

H132922

Cotter Pin

4шт.

90

4369619

Cylinder

SUB FOR AT214122

2шт.
