Запчасти John Deere 30LCR 219 - CAB COMPONENTS 1810 OPERATOR ENCLOSURE

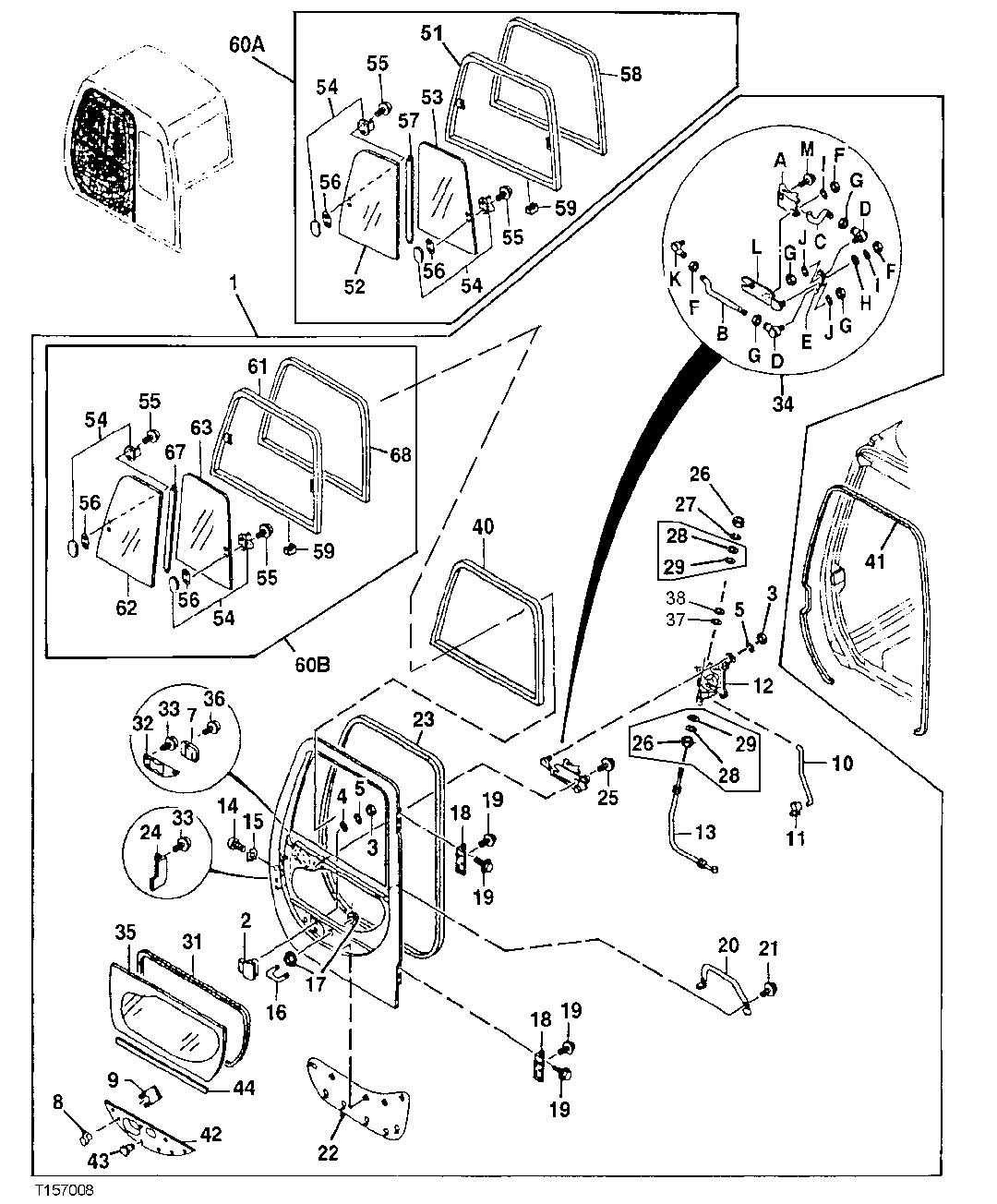

Схема запчастей John Deere 30LCR - 219 - CAB COMPONENTS 1810 OPERATOR ENCLOSURE

Артикул

Название

Примечание

Количество

0

4383439

Cab

(SUB FOR AT215570)(NOT ILLUSTRATED) (CONTAI NS ALL ITEMS ON THIS PAGE - ADDITIONAL COMPO NENTS LISTED ON PREVIOUS AND FOLLOWING PAGES )

1шт.

34

4369634

Handle

(SUB FOR AT214134)

1шт.

34A

4369635

Lever

(SUB FOR AT214135)

1шт.

34B

4369636

Rod

(SUB FOR AT214136)

1шт.

34C

4369637

Rod

(SUB FOR AT214137)

1шт.

34D

4369638

Ball Joint

(SUB FOR AT214138)

2шт.

34E

4369639

Strap

(SUB FOR AT214139)

1шт.

34F

14M7272

Nut

M6 (SUB FOR AT214302, 4372215)

3шт.

34G

14M7139

Nut

M4 (SUB FOR AT214303 OR 4372216)

4шт.

34H

24M7054

Washer

6.400 X 12 X 1.600 mm

1шт.

34I

12M7006

Lock Washer

6 mm

2шт.

34J

12H315

Lock Washer

0.164" (SUB FOR 12M7063)

2шт.

34K

4369640

Ball Joint

(SUB FOR AT214140)

1шт.

34L

4369641

Bracket

(SUB FOR AT214141)

1шт.

34M

J450614

Screw With Washer

(SUB FOR AT213606)

1шт.

35

4369657

Windowpane

(SUB FOR 4383401 ) (SUB FOR AT215568)

1шт.

36

J660512

Bolt

(SUB FOR AT218140)

1шт.

37

4458079

Bushing

1шт.

38

4455981

Bushing

1шт.

40

4369656

Weatherstrip

(SUB FOR AT214155)

1шт.

41

4369663

Weatherstrip

(SUB FOR AT214162)

1шт.

42

4369658

Panel

(SUB FOR AT214157)

1шт.

43

4369659

Clip

(SUB FOR AT214158)

7шт.

44

4369660

Isolator

(SUB FOR AT214159)

1шт.

51

4369650

Frame

(SUB FOR AT214149)

1шт.

52

AT304642

Windowpane

(SUB FOR AT214151)

1шт.

53

AT304643

Windowpane

(SUB FOR AT214150)

1шт.

54

4369653

Lock

(SUB FOR AT214152)

2шт.

55

J680410

Screw With Washer

(SUB FOR AT213608)

4шт.

56

4420531

Spacer

(SUB FOR AT214292, 4372093)

2шт.

57

4369655

Weatherstrip

(SUB FOR AT214154)

1шт.

58

4369654

Frame

(SUB FOR AT214153)

1шт.

59

4147896

Spacer

8шт.

60A

Window

(NOT AVAILABLE FOR SERVICE - ORDER INDIVIDUAL COMPONENTS) (USE IF WINDO W FRONT AND REAR LATCHES ARE LEVEL)

1шт.

60B

Window

(NOT AVAILABLE FOR SERVICE - ORDER INDIVI DUAL COMPONENTS) (USE IF WINDOW FRONT LATC H IS AT A LOWER LEVEL THAN THE REAR LATCH)

1шт.

61

4398091

Frame

(SUB FOR AT183082)

1шт.

62

AT183083

Windowpane

1шт.

63

AT183084

Windowpane

1шт.

67

4398016

Weatherstrip

(SUB FOR AT183085)

1шт.

68

4398019

Frame

(SUB FOR AT183086)

1шт.

Выбрано товаров: 40
