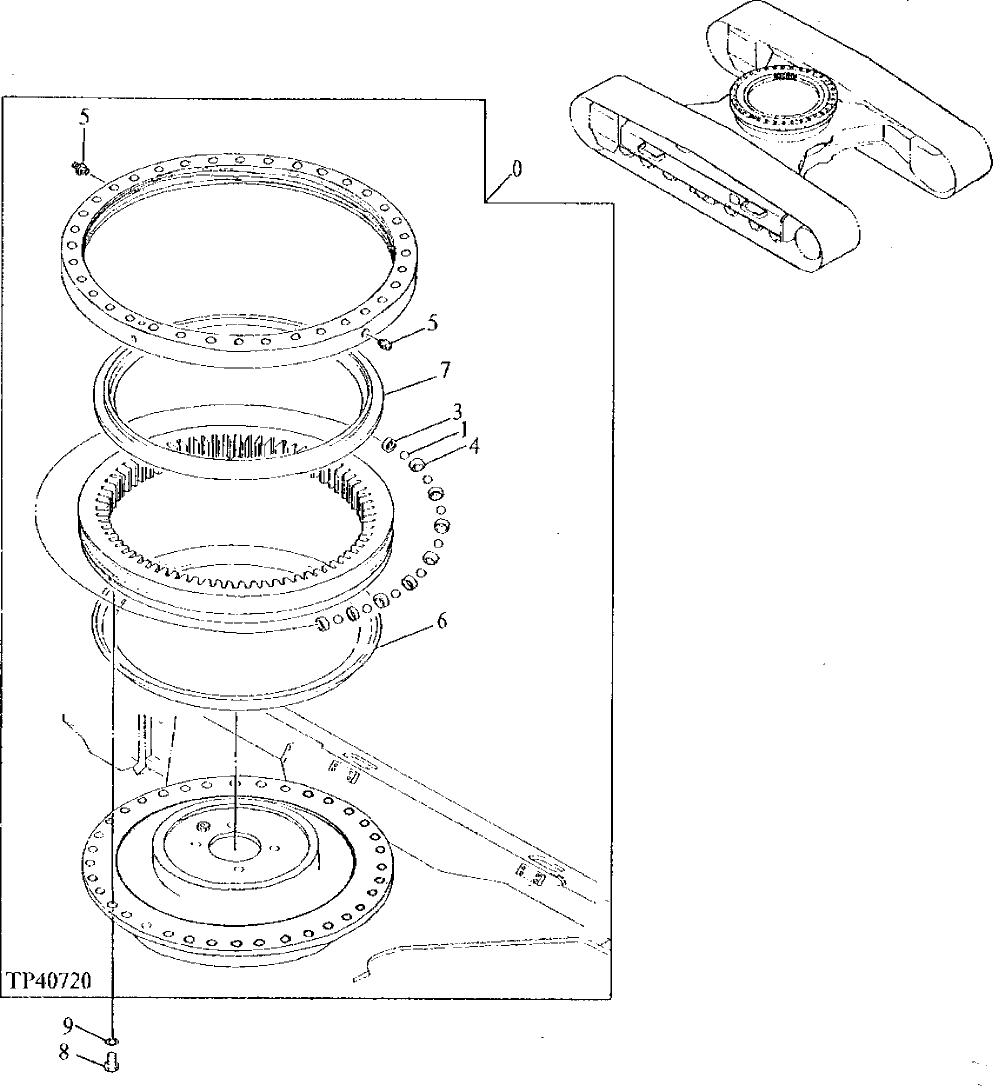

Запчасти John Deere 30LCR 212 - SWING BEARING 1740 Frame Installation

0

AT190770

Roller

NLA; ORDER 9154037EX

1шт.

9154037EX

Swing Bearing

REMAN FOR AT190770; SUB FOR AT178566

1шт.

1

4382742

Ball

SUB FOR AT174890 AND 4355766

99шт.

FYB00001844

Ball

SUB FOR 4669833 AND 435 5766; ALSO ORDER 4382742

99шт.

3

4134900

Spacer

SUB FOR TH102260

82шт.

4

4134901

Spacer

SUB FOR TH102261

8шт.

5

TH100074

Lubrication Fitting

2шт.

6

T203958

Seal

4631753 NLA, SUB FOR (1) 4634010; A LSO ORDER PM37391 AND AT66866; ALSO O RDER T216880 Installation Instruction

1шт.

TY21517

Adhesive

NOT ILLUSTRATED

1шт.

AT66866

Fluid

NOT ILLUSTRATED

1шт.

7

T203958

Seal

4631753 NLA, SUB FOR (1) 4634010; A LSO ORDER PM37391 AND AT66866; ALSO O RDER T216880 Installation Instruction

1шт.

TY21517

Adhesive

NOT ILLUSTRATED

1шт.

AT66866

Fluid

NOT ILLUSTRATED

1шт.

8

AT217784

Bolt

36шт.

9

J257222

Lock Washer

SUB FOR AT217702

36шт.
