Запчасти John Deere 30LCR 201 - ELECTRIC PARTS 1674 WIRING HARNESS AND SWITCHES

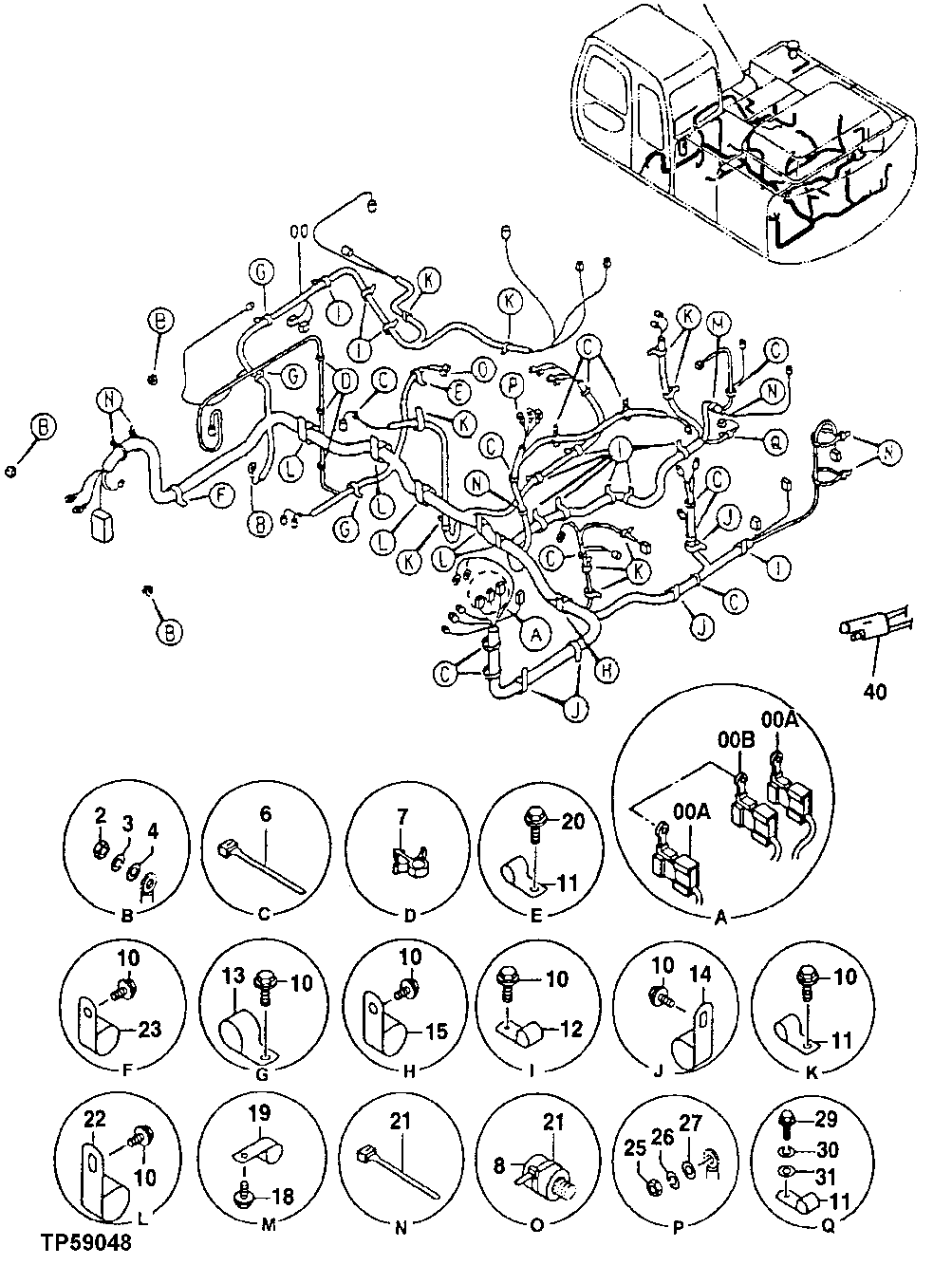

Схема запчастей John Deere 30LCR - 201 - ELECTRIC PARTS 1674 WIRING HARNESS AND SWITCHES

Артикул

Название

Примечание

Количество

0

0003784

Wiring Harness

SUB FOR AT218180; SUB FOR AT189657

1шт.

0A

4270554

Fuse

SUB FOR AT160982; FUBISB LE LINK - 40 AMP - GREEN

2шт.

0B

4287670

Fuse

SUB FOR AT200499; FUSIBL E LINK - 60 AMP - YELLOW

1шт.

0C

4374532

Diode

SUB FOR AT179476; NOT ILLUSTRATED, COMPON ENT OF MAIN WIRE HARNESS, PLASTIC CONNECTO R CONTAINS 5 DIODES, 1-KEYSWITCH, 1-SWING STOP CUSHION SOLENOID, 1-GRIP SOLENOID, 1- FUEL SHUTOFF SOLENOID, 1-OPTIONAL EQUIPMEN T

1шт.

2

14M7274

Nut

M10

4шт.

3

12M7066

Lock Washer

10 mm

4шт.

4

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

6

H77698

Tie Band

SUB FOR M88199

12шт.

7

4343690

Clip

SUB FOR AT213895

3шт.

8

4207239

Cap

SUB FOR TH108591

1шт.

10

12M7066

Lock Washer

10 mm

ARшт.

19M7938

Cap Screw

M10 X 20

ARшт.

11

4190261

Clip

SUB FOR TH109649

11шт.

12

4190275

Clamp

SUB FOR TH108598

11шт.

13

T28949

Clamp

SUB FOR TH108460 OR 4190273

3шт.

14

T32854

Clamp

4шт.

15

T24432

Clamp

1шт.

18

19M8425

Cap Screw

M6 X 16

1шт.

12M7006

Lock Washer

6 mm

1шт.

19

4000860

Clamp

SUB FOR AT154911

1шт.

20

19M8017

Cap Screw

M12 X 20 SUB FOR AT200005 OR J 011220; USE ALONG WITH 12M7067

1шт.

12M7067

Lock Washer

12 mm

1шт.

21

H77698

Tie Band

7шт.

22

XCL-19

Hose Clamp

SUB FOR TH108459 OR 4192035

5шт.

23

AT121321

Hose Clamp

1шт.

25

14M7297

Nut

M5

1шт.

26

12M7064

Lock Washer

5 mm

1шт.

27

24M7027

Washer

5.300 X 10 X 1 mm

1шт.

29

AT219486

Bolt

TRAVEL ALARM MOUNTING

2шт.

30

Washer

12M7065 NLA

2шт.

31

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

40

AT172578

Wiring Harness

DIODE; USED TO PROTECT AGAINST VOLTAGE SPIKES

1шт.

Выбрано товаров: 32
