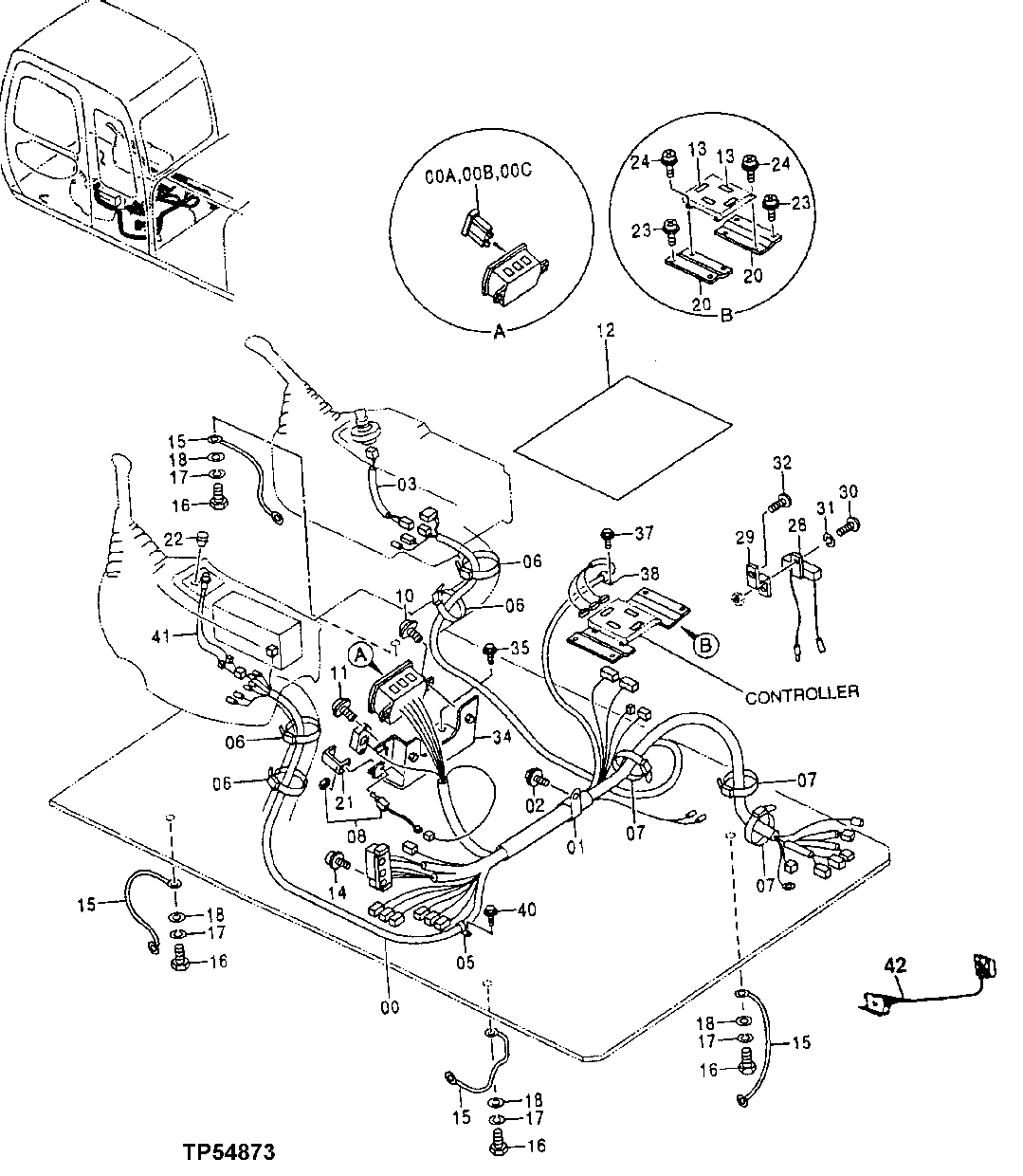

Запчасти John Deere 30LCR 189 - ELECTRIC PARTS 1674 WIRING HARNESS AND SWITCHES

0

0002289

Wiring Harness

(SUB FOR AT215475)

1шт.

0A

57M7125

Fuse

8шт.

0B

57M7121

Fuse

8шт.

0C

57M7120

Fuse

3шт.

1

N198631

Clamp

(SUB FOR TH109598 OR 4190265)

1шт.

2

19M7402

Cap Screw

M10 X 25

1шт.

12M7066

Lock Washer

10 mm

1шт.

24M7028

Washer

10.500 X 20 X 2 mm

1шт.

3

4277927

Wiring Harness

(SUB FOR AT154955)

1шт.

5

4190275

Clamp

(SUB FOR TH108598)

1шт.

6

H77698

Tie Band

4шт.

7

H77698

Tie Band

3шт.

8

4359384

Switch

(SUB FOR AT213984)

1шт.

10

19M7077

Cap Screw

M6 X 20

2шт.

12M7006

Lock Washer

6 mm

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

11

Screw

(SUB FOR AT156974)( J460310 NLA)

2шт.

21M7394

Screw

M3 X 10

1шт.

24H1914

Washer

1/8" X 5/16" X 0.032"

1шт.

12H233

Lock Washer

1/8"

1шт.

12

3075379

Cover

(SUB FOR AT213792)

1шт.

13

4365396

Tape

(SUB FOR AT214022)

4шт.

14

Screw With Washer

( J460620 NO LONGER AVAI LABLE) (SUB FOR AT200012)

2шт.

21M7267

Screw

M6 X 20

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

12M7006

Lock Washer

6 mm

2шт.

15

Wiring Harness

4шт.

16

19M8324

Cap Screw

M10 X 16

4шт.

17

12M7066

Lock Washer

10 mm

4шт.

18

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

20

Bracket

( AT214408 AND 9745785 NLA)

2шт.

21

4367375

Bracket

(SUB FOR AT214036)

1шт.

22

4294437

Cap

(SUB FOR AT215503)

1шт.

23

J450616

Screw

(SUB FOR AT161039)

4шт.

24

Screw With Washer

( J460625 NLA) (SUB FOR AT213607)

4шт.

21M7159

Screw

M6 X 25

4шт.

12M7006

Lock Washer

6 mm

4шт.

24M7054

Washer

6.400 X 12 X 1.600 mm

4шт.

28

4191772

Resistor

(SUB FOR AT155250)(ALTERNATOR EXITATION)

1шт.

29

4379070

Strap

(SUB FOR AT215559)

1шт.

30

4204811

Screw

(SUB FOR AT155253)

1шт.

31

12H315

Lock Washer

0.164" (SUB FOR 12M7063)

1шт.

32

21M7246

Screw

M6 X 16

1шт.

12M7006

Lock Washer

6 mm

1шт.

24M7105

Washer

6 X 12 X 1.600 mm

1шт.

34

8067722

Bracket

(SUB FOR AT215606)

1шт.

35

19M7881

Screw

M8 X 20

2шт.

37

19M7923

Cap Screw

M6 X 12

1шт.

12M7006

Lock Washer

6 mm

1шт.

24M7054

Washer

6.400 X 12 X 1.600 mm

1шт.

38

AH78237

Clamp

(SUB FOR AT215502, 4289217)

1шт.

40

19M7402

Cap Screw

M10 X 25

1шт.

12M7066

Lock Washer

10 mm

1шт.

24M7028

Washer

10.500 X 20 X 2 mm

1шт.

41

4384758

Switch

(TRAVEL ALARM SWITCH) (SUB FOR AT215573)

1шт.

42

Wiring Harness

( AT179050 NLA) (9 FT EXT ENSION) (TO CAB CONNECTOR)

1шт.

AT179051

Wiring Harness

(15 FT EXTENSION) (TO CAB CONNECTOR)

1шт.
