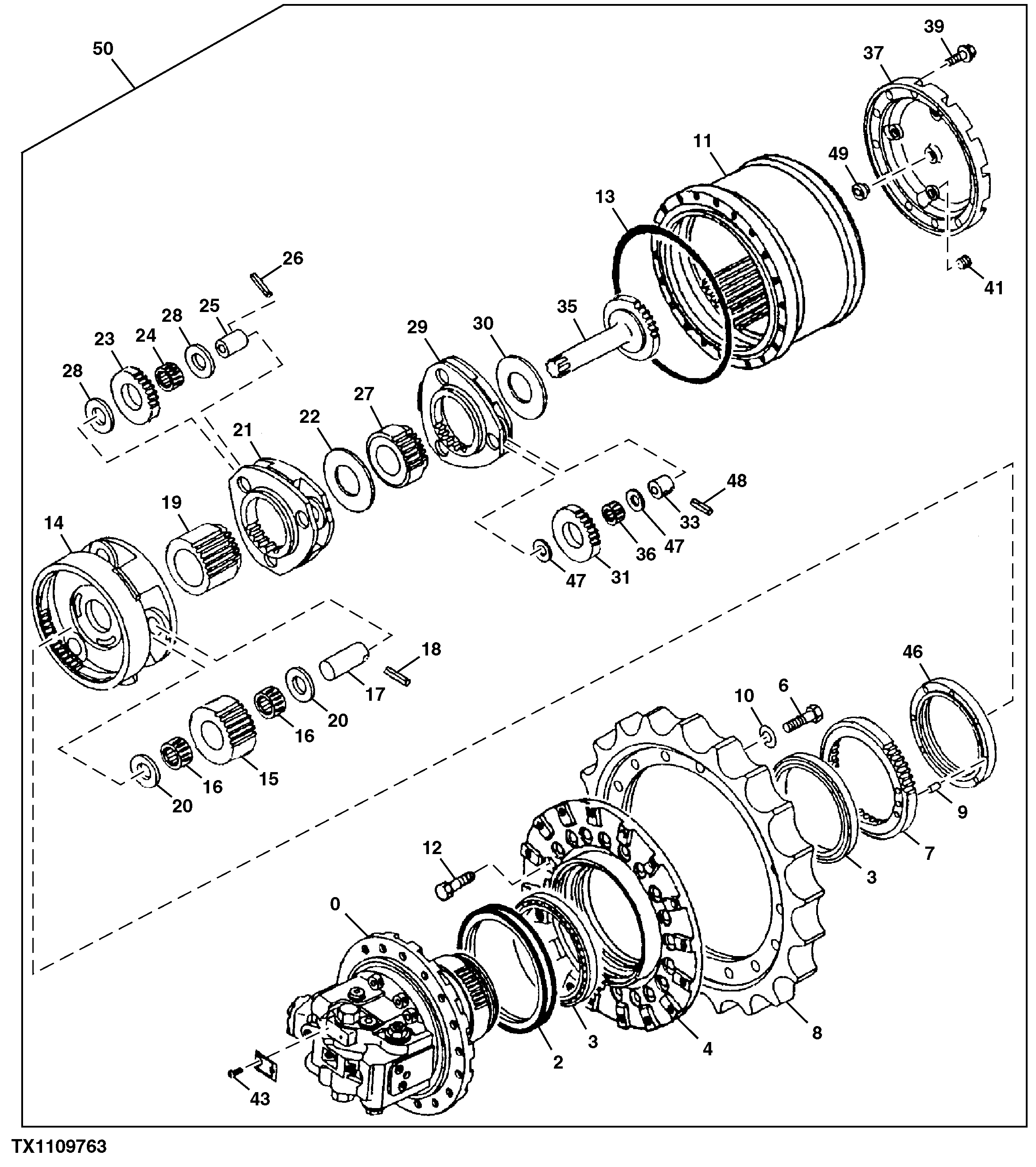

Запчасти John Deere 30LCR 10 - TRAVEL DEVICE 0260 Axles, Diff. & Susp. Sys. Hyd. (Incl. Fwd)

0

9149087

Oil

NLA; ORDER 9149087EX

1шт.

9149087EX

Hydraulic Motor Reman

SUB FOR AT214460 OR AT1 83689; REMAN FOR 9149087

1шт.

2

FYB00000549

Seal

SUB FOR AT154697 OR 46 34693 Contains 2 Seals

1шт.

3

AT130941

Tapered Roller Bearing

2шт.

4

1013983

Drum

SUB FOR AT154627

1шт.

6

19M8002

Cap Screw

M20 X 55

16шт.

7

3047448

Hub

SUB FOR AT154662

1шт.

8

AT311805

Drive Sprocket

SUB FOR TH109726 OR 1010203

1шт.

9

4246783

Pin

SUB FOR AT154708

1шт.

10

12M7070

Lock Washer

20 mm

16шт.

11

1014493

Ring Gear

SUB FOR AT154634

1шт.

12

19M7369

Cap Screw

M16 X 60

20шт.

13

4246792

O-Ring

SUB FOR AT154711

1шт.

14

1014491

Planet Pinion Carrier

SUB FOR AT154632

1шт.

15

3052346

Gear

AT318028, NLA

3шт.

16

4172394

Needle Bearing

SUB FOR AT154701

6шт.

17

4252442

Pin

SUB FOR AT154721

3шт.

18

34M7133

Spring Pin

8 X 70 mm

3шт.

19

3049870

Sun Gear

SUB FOR AT154668

1шт.

20

4271698

Shim

SUB FOR AT154777

6шт.

21

1014492

Planet Pinion Carrier

SUB FOR AT154633

1шт.

22

4246785

Washer

SUB FOR AT154710

1шт.

23

3052345

Gear

SUB FOR AT154685

3шт.

24

4354271

Needle Bearing

SUB FOR AT214453

3шт.

25

4252441

Spacer

SUB FOR AT154720

3шт.

26

34M7119

Spring Pin

5 X 65 mm

3шт.

27

3049872

Sun Gear

SUB FOR AT154669

1шт.

28

4269295

Shim

SUB FOR AT154773

6шт.

29

1014490

Planet Pinion Carrier

SUB FOR AT154631

1шт.

30

4401293

Spacer

SUB FOR TH111249

1шт.

31

3049873

Gear

SUB FOR AT154670

3шт.

33

FYB00000839

Pin

SUB FOR AT154702 OR 4210853

3шт.

35

2028764

Shaft

SUB FOR AT154653

1шт.

36

4387383

Needle Bearing

SUB FOR AT214452

3шт.

37

2028763

Cover

SUB FOR AT154652

1шт.

39

19M8011

Cap Screw

M12 X 30

16шт.

12M7058

Lock Washer

12 mm SUB FOR 12M7067

16шт.

41

94-2013

Fitting Plug

SUB FOR TH100648

3шт.

43

37H99

Screw

0.100" X 1/4"

2шт.

46

3057125

Ring

SUB FOR AT154694

1шт.

47

4192910

Plate

SUB FOR TH108847

6шт.

48

4173093

Spring Pin

SUB FOR TH108841

3шт.

49

4478346

Pin

SUB FOR 4285323; SUB FOR AT154798

1шт.

50

9148910

Gear Case

1шт.
