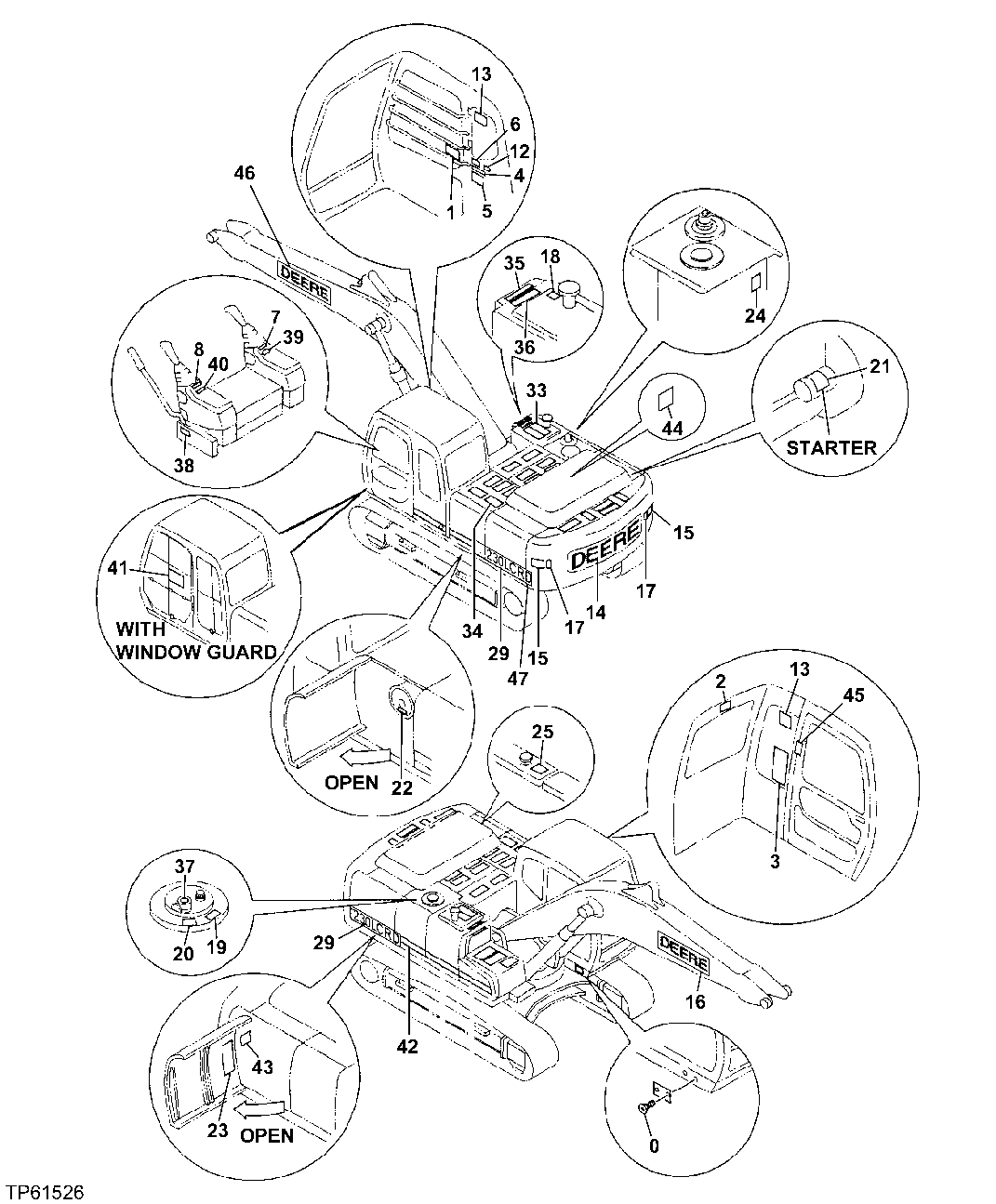

Запчасти John Deere 30LCR 176 - LABELS AND DECALS 1320 Vehicle Finish & Trim

0

37H131

Screw

0.140" X 3/8"

2шт.

1

T159888

Label

(START-STOP OPERATION)

1шт.

2

T146664

Safety Sign

(CAUTION - FRONT WINDOW LOCK)

1шт.

3

Label

(T162054 NO LONGER AVAILABLE) ENGLISH (LIFT CAPACITY CHART)

1шт.

4

T146668

Safety Sign

(WARNING - AVOID CRUSHING)

1шт.

5

T159887

Safety Sign

ENGLISH (CAUTION)

1шт.

6

T146667

Safety Sign

(DANGER - ELECTROCUTION)

1шт.

7

T159842

Label

(RIGHT CONTROL LEVER - SAE PATTERN) (WHITE BACKGROUND)

1шт.

T159843

Label

(RIGHT CONTROL LEVER - JOHN DEE RE PATTERN) (YELLOW BACKGROUND)

1шт.

8

T159841

Label

(LEFT CONTROL LEVER - SAE PATTERN) (WHITE BACKGROUND)

1шт.

T159844

Label

(LEFT CONTROL LEVER - JOHN DEE RE PATTERN) (YELLOW BACKGROUND)

1шт.

12

T190393

Label

(SUB FOR T157809)(IMPORTANT - B REAK WINDOW FOR SECONDARY EXIT)

1шт.

13

T160538

Label

(LEAPING DEERE)

2шт.

14

T166676

Label

(DEERE - ON COUNTERWEIGHT)

1шт.

15

T145893

Safety Sign

(STAY CLEAR)

2шт.

16

T166678

Label

(DEERE - ON BOOM)

1шт.

17

JD5909

Reflector

(SUB FOR T160910)(RED REFLECTOR TAPE)

1шт.

18

T166756

Label

(DIESEL ONLY)

1шт.

19

T101942

Label

(HYDRAULIC OIL)

1шт.

20

P63448

Label

(SUB FOR AT155733)(PUMP BLEED INFORMATION)

1шт.

21

T146102

Label

(BYPASS START)

1шт.

22

R56902

Label

(DRY AIR CLEANER)

1шт.

23

T166607

Label

ENGLISH (PERIODIC MAINTENANCE) (TYPE II)

1шт.

T184025

Label

ENGLISH (PERIODIC MAINTENANCE) (TYPE I)

1шт.

24

T149983

Label

(IMPORTANT - OIL LEVEL)

1шт.

25

T152657

Safety Sign

(CAUTION - RADIATOR)

1шт.

29

T166677

Label

(MODEL DESIGNATION STRIPE - 230LCR)

2шт.

T183351

Label

(MODEL DESIGNATION STRIPE - 230LCRD)

2шт.

33

H21259

Mat

(ANTI-SKID TAPE)

21шт.

34

H21259

Mat

(ANTI-SKID TAPE) (SUB FOR TH111902)

1шт.

35

H21259

Mat

(ANTI-SKID TAPE) (SUB FOR AT178903)

1шт.

36

H21259

Mat

(ANTI-SKID TAPE) (SUB FOR TH110224)

1шт.

37

T147009

Label

(RESERVOIR COVER)

1шт.

38

4299059

Label

(SUB FOR T138886)(HYDRAULIC LEVER LOCK)

1шт.

39

4264805

Label

(SUB FOR AT155730)(IGNITION KEY SWITCH)

1шт.

40

4288971

Label

(SUB FOR AT155729)(EIT HER AID/MOTION CANCEL)

1шт.

41

T163979

Label

(SUB FOR T161729)(WIND OW GUARD INSTALLATION)

1шт.

43

T132600

Label

(HYDRAULIC OIL SAMPLE VALVE)

1шт.

44

T132599

Label

(ENGINE OIL SAMPLE VALVE)

1шт.

45

T183995

Label

(CAUTION SOUND) (TYPE I)

1шт.

T184003

Label

(CAUTION SOUND) (TYPE II)

1шт.

46

T166678

Label

(DEERE BOOM SIDE)

1шт.

47

T183351

Label

(D)

2шт.

48

T119535

Label

(DOOR BUMPER) (NOT ILLUSTRATED)

1шт.

49

T184236

Label

ROCK DRILL MAINT. (NOT ILLUSTRATED)

1шт.

50

T166892

Label

(NOT ILLUSTRATED) (HAND HELD HYDRAULICS)

1шт.
