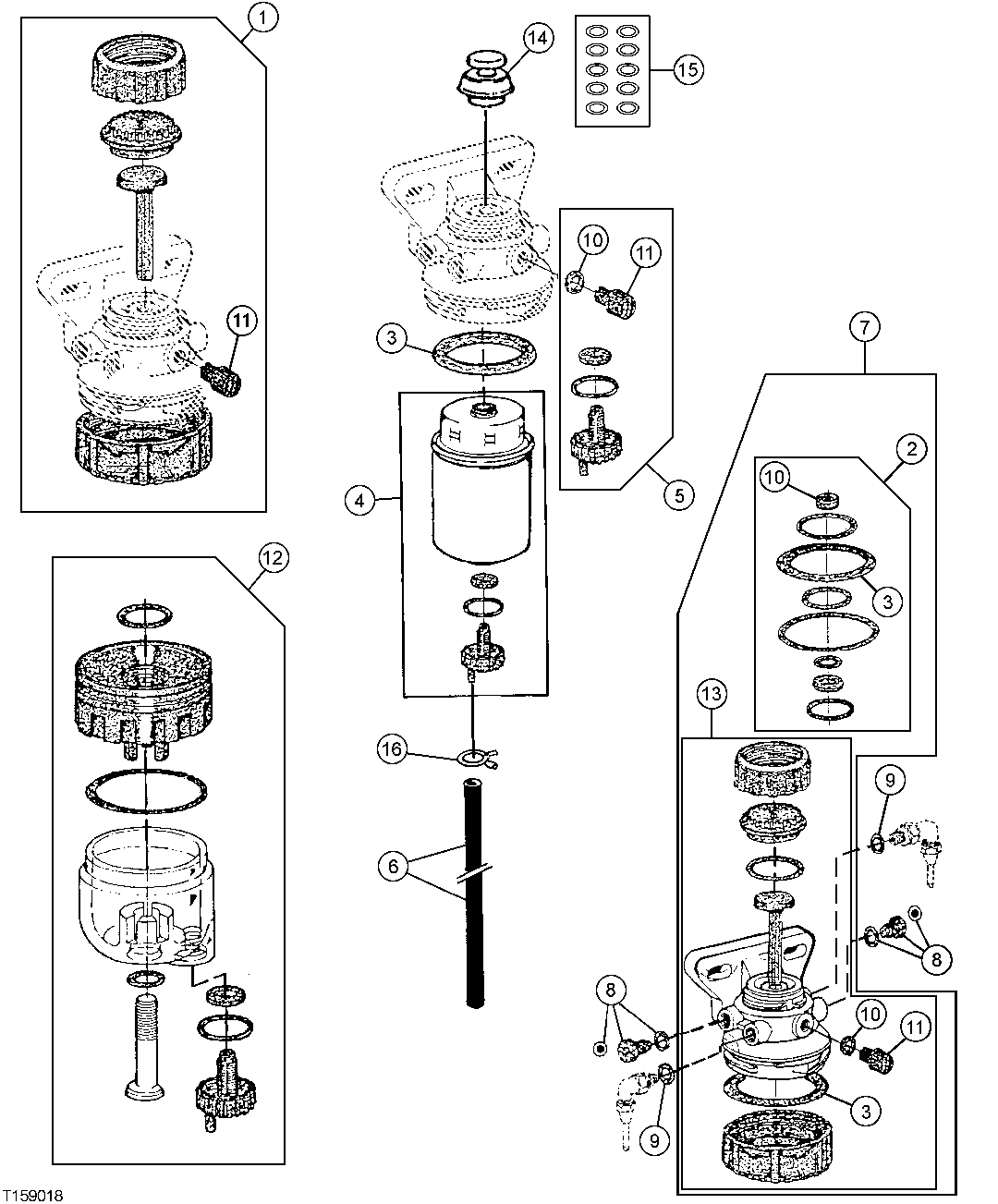

Запчасти John Deere 30LCR 174 - FUEL FILTER ELEMENTS AND SERVICE KITS 0560 External Fuel Supply Systems

1

RE51649

Seal Kit

(ALSO ORDER R113562)

1шт.

2

RE516553

Seal Kit

(SUB FOR RE50752)

1шт.

3

R113565

O-Ring

1шт.

4

RE62419

Fuel Filter

1шт.

5

RE60854

Valve Kit

1шт.

6

Hose

DRAIN VALVE(MAKE FROM T79477 BULK MATERIAL)

2шт.

7

RE70358

Filter Head

1шт.

8

RE46686

Fitting

2шт.

RE56323

Fitting Plug

2шт.

9

51M7040

O-Ring

9.300 X 2.200 mm

2шт.

10

R113562

O-Ring

1шт.

11

R113563

Drain Plug

1шт.

12

RE51650

Sediment Bowl

1шт.

13

RE500161

Filter Kit

1шт.

14

RE50467

Hand Primer

1шт.

15

RE516513

Pump Repair Kit

(WITH HAND PRIMER) (CONTAINS 10 O-RINGS)

1шт.

16

RE516512

O-Ring Kit

(WITHOUT HAND PRIMER) (CONTAINS 10 O-RINGS)

1шт.

17

M85483

Clip

1шт.
