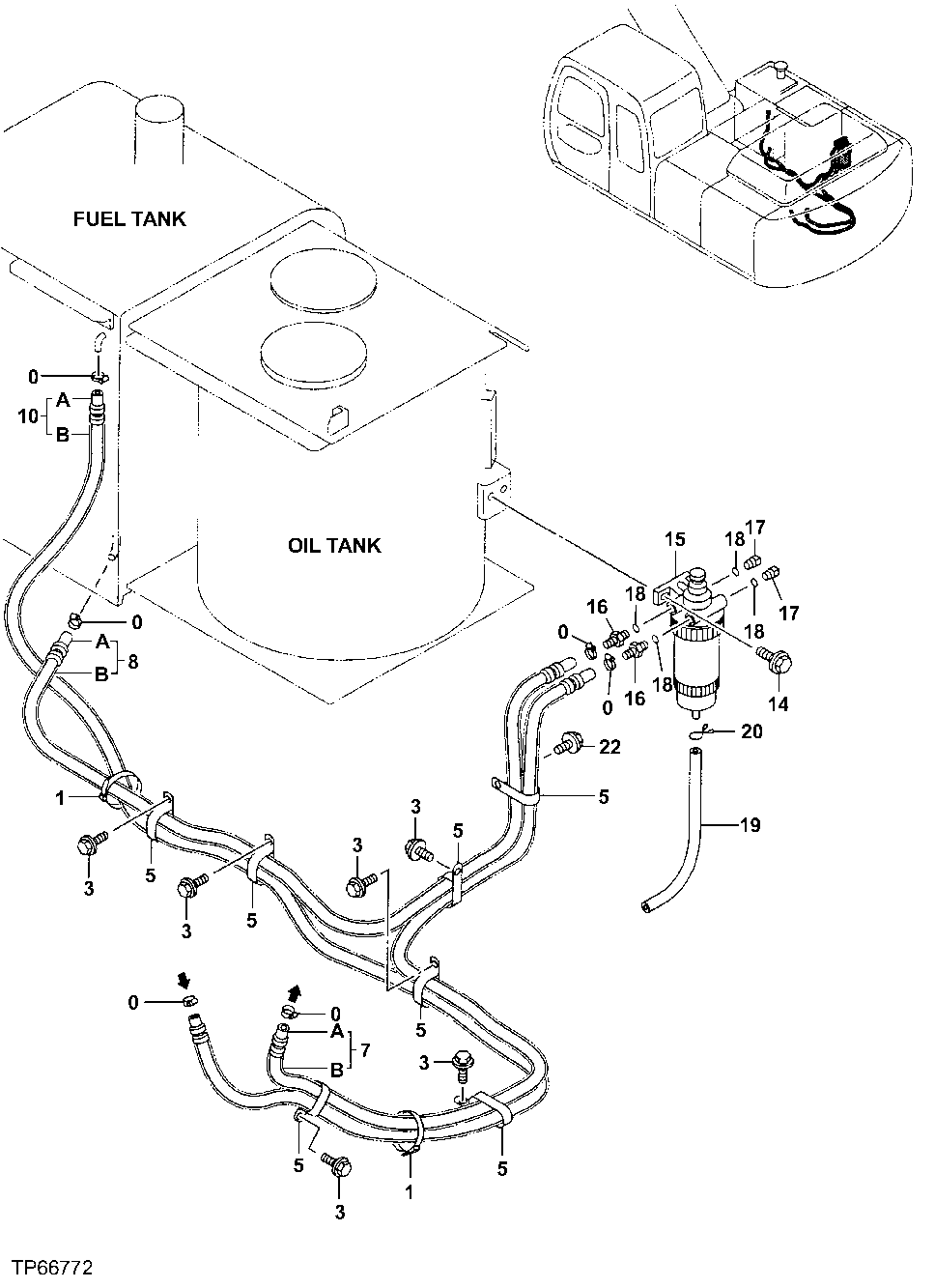

Запчасти John Deere 30LCR 173 - FUEL PIPINGS 0560 External Fuel Supply Systems

0

TY22464

Clamp

(SUB FOR AR21836)

6шт.

1

H77698

Tie Band

2шт.

3

12M7066

Lock Washer

10 mm

6шт.

19M7938

Cap Screw

M10 X 20

6шт.

5

4190266

Clip

(SUB FOR TH108793)

7шт.

7

Hose

(NOT AVAILABLE FOR SERVICE)

1шт.

7A

4295998

Hose

(SUB FOR AT201199)

1шт.

7B

Structural Tube

(FURNISH T83427 BULK M ATERIAL CUT TO LENGTH)

1шт.

8

Hose

(NOT AVAILABLE FOR SERVICE)

1шт.

8A

4295998

Hose

(SUB FOR AT201199)

1шт.

8B

Structural Tube

(FURNISH T83427 BULK M ATERIAL CUT TO LENGTH)

1шт.

10

Hose

(NOT AVAILABLE FOR SERVICE)

1шт.

10A

Hose

(FURNISH TY22561 BULK MATERIAL CUT TO LENGTH)

1шт.

10B

Tube

(FURNISH T83427 BULK M ATERIAL CUT TO LENGTH)

1шт.

14

19M7550

Cap Screw

M10 X 35

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

15

Filter

(FUEL FILTER AND WATER SEPARATOR ) (SEE SEPARATE PAGE FOR DETAIL)

1шт.

16

R65684

Fitting

2шт.

17

R82719

Fitting Plug

2шт.

18

R26286

O-Ring

10.516 X 1.829 mm (0.414" X 0.072")

4шт.

19

R126086

Hose

1шт.

20

T13254

Clamp

1шт.

22

19M7938

Cap Screw

M10 X 20

1шт.

12M7066

Lock Washer

10 mm

1шт.
