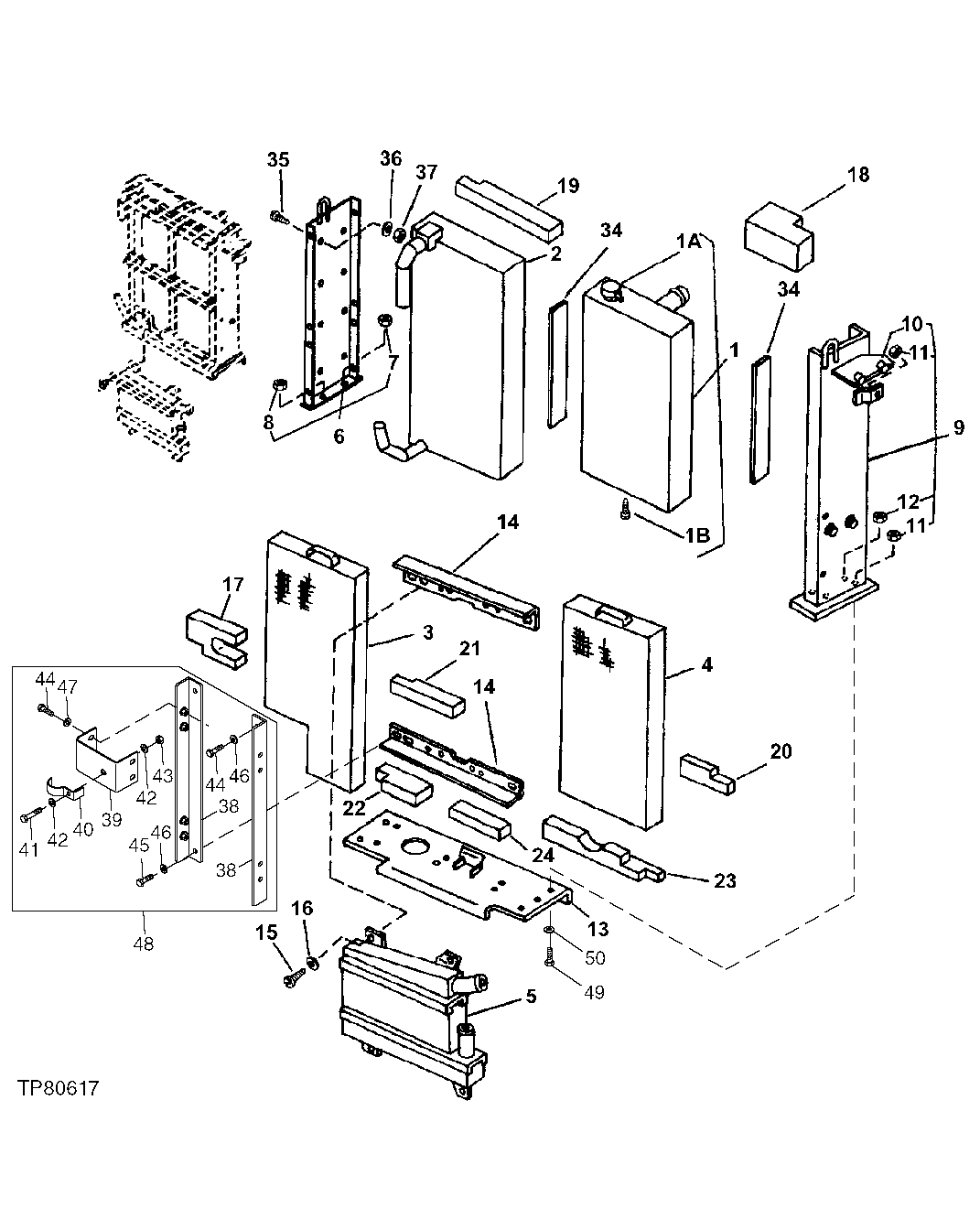

Запчасти John Deere 30LCR 161 - RADIATOR 0510 Engine Cooling Systems

1

AT191239

Radiator

(SUB FOR AT176947)

1шт.

1A

AT173610

Filler Cap

1шт.

1B

AT13740

Drain Valve

1шт.

2

AT191088

Oil Cooler

(ALSO ORDER AT191195 ) (SUB FOR AT 176948)(USE IF AVAILABLE) (IF AT176 948 NOT AVAILABLE, FURNISH AT191088 )

1шт.

AT191088

Oil Cooler

1шт.

3

AT177463

Screen

1шт.

4

AT177464

Screen

1шт.

5

AT176949

Heat Exchanger

1шт.

6

AT177467

Support

1шт.

7

14M7275

Nut

M12

1шт.

8

14M7286

Nut

M16

3шт.

9

AT177468

Support

1шт.

10

T72414

Bushing

2шт.

11

14M7286

Nut

M16

3шт.

12

14M7275

Nut

M12

2шт.

13

AT177486

Channel

1шт.

14

AT177469

Angle

2шт.

15

19M7784

Screw

M10 X 20

4шт.

16

24M7296

Washer

10.500 X 30 X 2.500 mm

4шт.

17

T160102

Isolator

1шт.

18

T160103

Isolator

1шт.

19

T160104

Isolator

1шт.

20

T160105

Isolator

1шт.

21

T160106

Isolator

1шт.

22

T160600

Pad

1шт.

23

T160598

Pad

1шт.

24

T160599

Pad

1шт.

25

T166733

Channel

1шт.

34

UN4781

Weatherstrip

(FURNISH AT66778 BULK MATERIAL CUT TO LENGTH)

2шт.

35

19M7881

Screw

M8 X 20

8шт.

36

24M7236

Washer

21.400 X 42 X 5 mm

8шт.

37

14M7273

Nut

M8

8шт.

38

AT186840

Angle

2шт.

39

T166733

Channel

(NOT REQUIRED WITH AT191088 OIL COOLER)

1шт.

40

4053698

Clamp

(SUB FOR TH101936)

1шт.

41

19M8088

Cap Screw

M12 X 75

1шт.

42

24M7240

Washer

13 X 25 X 3 mm

2шт.

43

14M7319

Lock Nut

M12

1шт.

44

19M7784

Screw

M10 X 20

6шт.

45

19M7785

Screw

M10 X 25

2шт.

46

24M7239

Washer

10.700 X 21 X 2.500 mm

4шт.

47

24M7296

Washer

10.500 X 30 X 2.500 mm

4шт.

48

Kit

OIL COOLER (FURNISH AT191195)

1шт.

Oil Cooler

(OIL COOLER) ( AT191195 NLA)

1шт.

49

19M7789

Screw

M12 X 30

7шт.

50

24M7240

Washer

13 X 25 X 3 mm

7шт.
