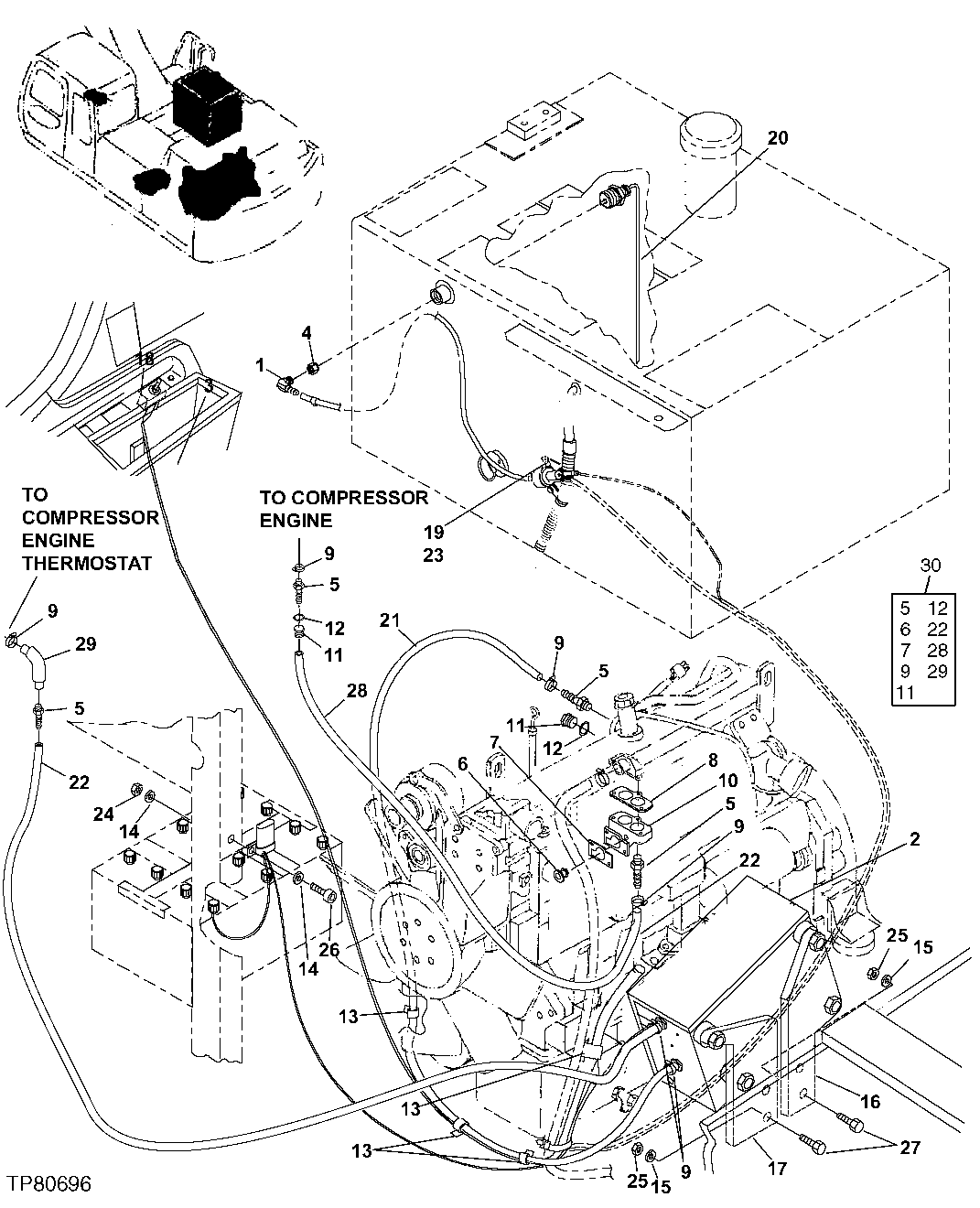

Запчасти John Deere 30LCR 160 - ARCTIC START KIT (TYPE II) 0505 COLD WEATHER STARTING AIDS

1

AR85517

Adapter Fitting

1шт.

2

AT186577

Kit

D10W HEATER (DEERE DEALER OR DER DIRECT FROM ACTIVE GEAR)

1шт.

3

AT186578

Kit

SWITCH AND LED (DEERE DEALER ORDER DIRECT FROM ACTIVE GEAR)

1шт.

4

AT186671

Fitting

1шт.

5

H33801

Hose Fitting

4шт.

6

R123226

Seal

1шт.

7

R502814

Gasket

(SUB FOR R123345 AND R135896)

1шт.

8

R501373

Gasket

(SUB FOR R54638)

1шт.

9

TY22466

Clamp

6шт.

10

Housing

THERMOSTAT ( T166547 NO LONGER AVAILABLE)

1шт.

11

T166548

Plug

2шт.

12

U13639

O-Ring

3шт.

13

R46667

Clamp

ARшт.

14

24M7027

Washer

5.300 X 10 X 1 mm

2шт.

15

24M7239

Washer

10.700 X 21 X 2.500 mm

4шт.

16

Bracket

HEATER MOUNTING, RH ( T16 6544 NO LONGER AVAILABLE)

1шт.

17

Bracket

HEATER MOUNTING, LH ( T16 6545 NO LONGER AVAILABLE)

1шт.

18

Label

(ARCTIC START) ( T166602 NOT REQUIRED IN THIS APPLICATION)

1шт.

19

T166628

Bracket

1шт.

20

T166629

Tube

1шт.

21

T166636

Hose

OUTLET, 0.75 IN ID X 1.06 IN OD X 86.0 IN LG, MAKE FROM T78497 BULK ROLL, CUT TO SIZE

1шт.

22

Hose

INLET, 0.75 IN ID X 1.06 IN OD X 46 IN LG, MAKE FROM T78497 BULK ROLL, CUT TO SIZE ( T166744 NLA)

1шт.

23

12M7033

Lock Washer

10.500 mm

1шт.

24

14M7297

Nut

M5

1шт.

25

14M7400

Lock Nut

M10

4шт.

26

19M7372

Cap Screw

M5 X 16

1шт.

27

19M7572

Cap Screw

M10 X 45

4шт.

28

Hose

(MAKE FROM T78497)BULK ROLL ( T166745 NLA)

1шт.

29

15H621

Elbow Fitting

3/4"

1шт.

30

AT190895

Kit

START (ARTIC) (SUB FOR AT186847 ) (INCLUDES AT190750 AND AT190749)

1шт.
