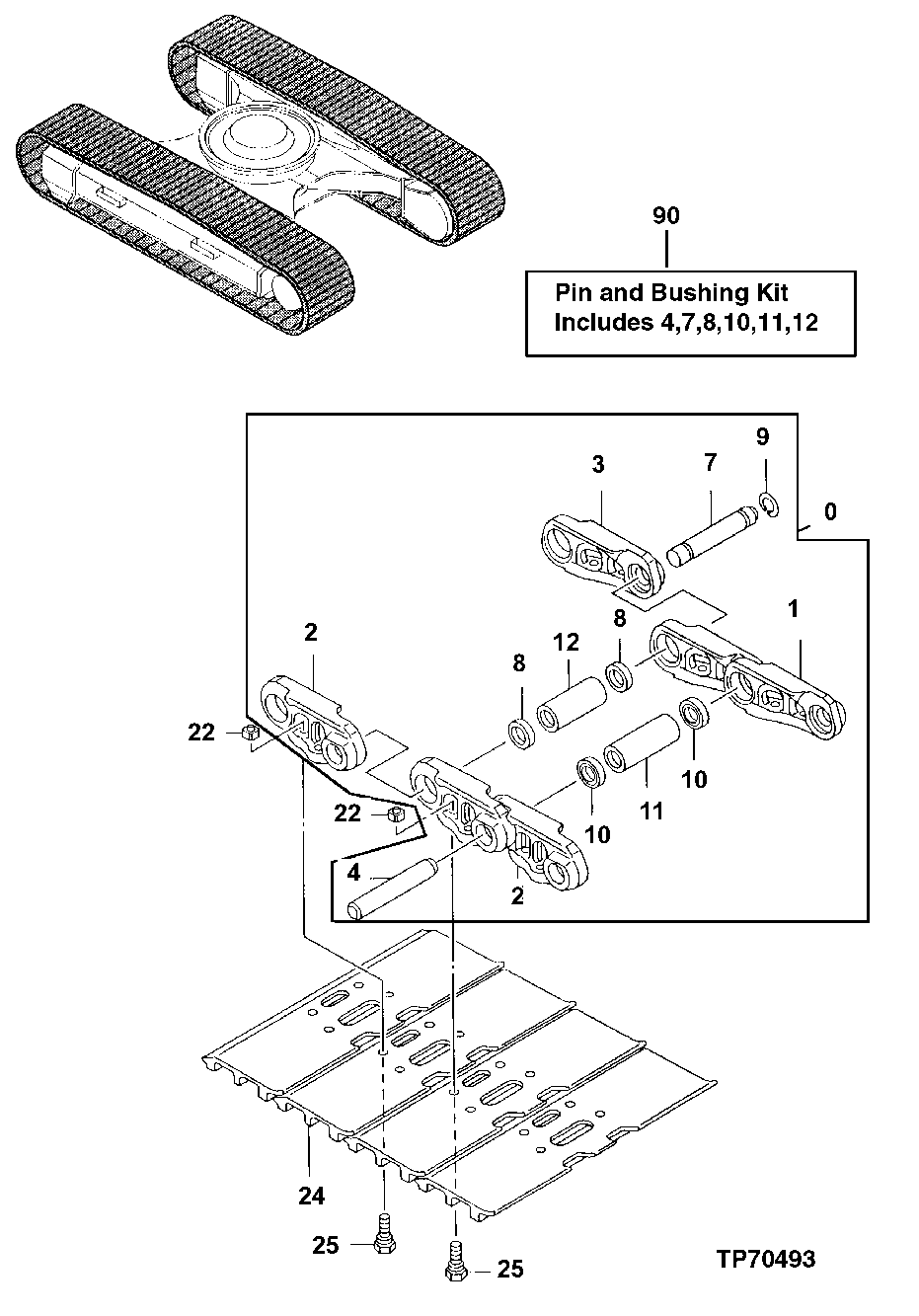

Запчасти John Deere 30LCR 8 - TRACK LINK 0130 Track Systems

0

Track Chain W/O Shoes

( 9202848 NLA) (SUB AT311612) (SU B FOR 9181001, AT186160, AT217896 OR AT219479) Quantity of 1 Each S ide of Unit M Seal Design Track Li nk

2шт.

1

Link

( 1028977 NLA, SUB FOR 1021596 OR AT217717) (USE WITH 9202848) M Seal Design Track Link

50шт.

AT219480

Strutted LINK-RH

NLA, SUB 0005251R, RH, USE WITH AT217896 OR AT219479

50шт.

0005251R

Track Link

RH

50шт.

2

Link

1028978 NLA, SUB FOR 1021597 OR AT217718, USE WITH 9202848 M Seal Design Track Link

51шт.

AT219481

Strutted LINK-LH

NLA, SUB 0005252R, LH, USE WITH AT217896 OR AT219479

51шт.

0005252R

Track Link

LH

51шт.

3

T209262

Master Track LINK-RH

(SUB FOR 4334641, AT217752 OR 4456823)

1шт.

4

AT180028

Pin Fastener

(K)

50шт.

7

AT180030

Pin Fastener

(K) (MASTER)

1шт.

8

AT219471

Spacer

(K)

2шт.

9

T209259

Snap Ring

(SUB FOR AT174863)

1шт.

10

AT186161

Seal

(K) (SUB FOR AT219469 , ALONG WITH AT186162)

100шт.

11

AT186162

Bushing

(K) (SUB FOR AT219467, ALONG WITH (2) AT186161)

50шт.

12

AT219468

Bushing

(K) (MASTER)

1шт.

22

T139615

Nut

(EACH SIDE OF UNIT)

204шт.

24

AT219482

Open Center 3 Bar Shoe

(600 G) (EACH SIDE OF UNIT)

51шт.

AT219483

Open Center 3 Bar Shoe

(700 G) (EACH SIDE OF UNIT)

51шт.

AT219484

Open Center 3 Bar Shoe

(800 G) (EACH SIDE OF UNIT)

51шт.

25

T139614

Bolt

(EACH SIDE OF UNIT)

204шт.

90

AT187185

Pin & Bushing Kit

(SUB FOR AT184108 ) (ALSO ORDER (4) AT180028 AND (10) AT186161)

1шт.
