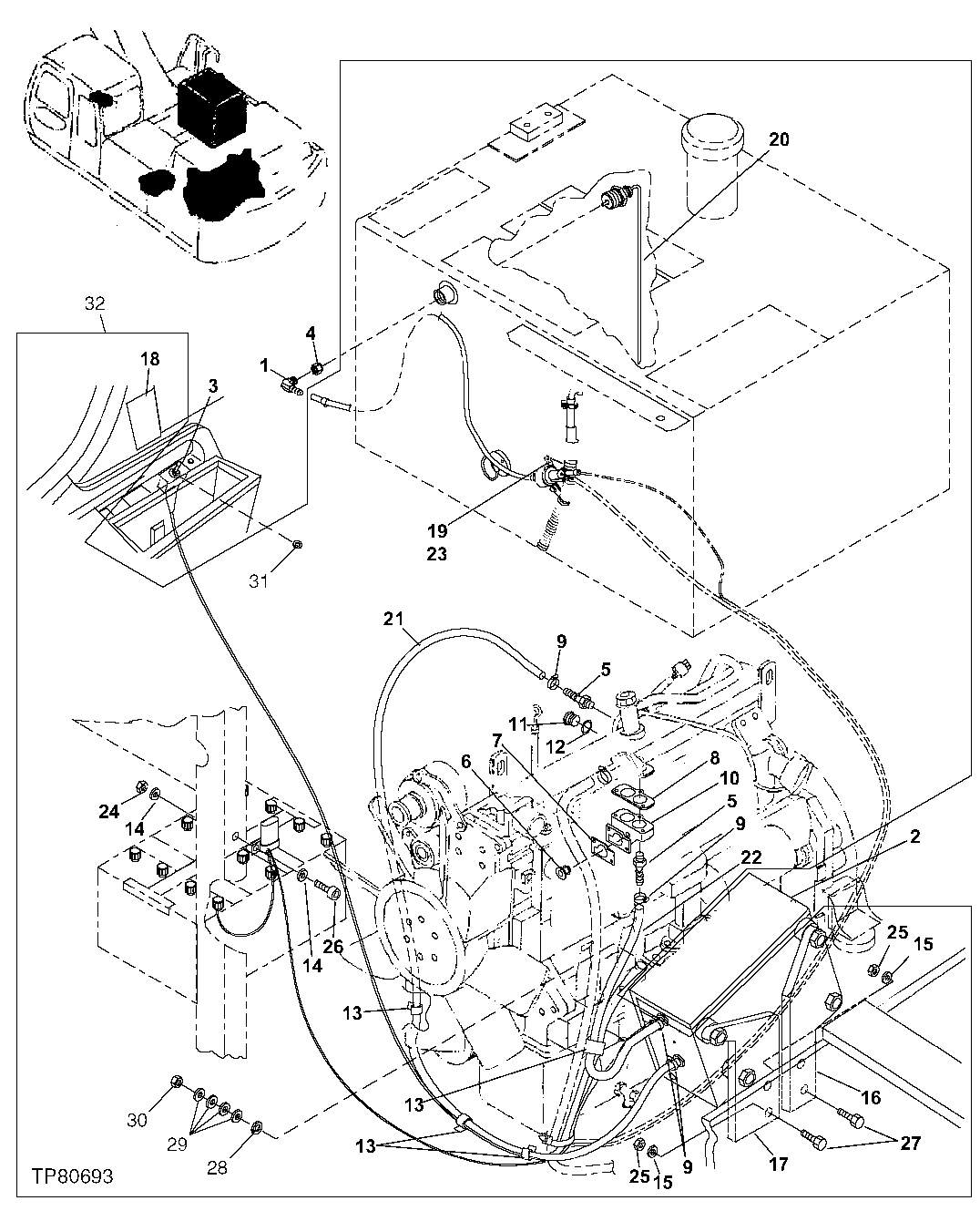

Запчасти John Deere 30LCR 159 - ARCTIC START KIT (TYPE I) 0505 COLD WEATHER STARTING AIDS

1

AR85517

Adapter Fitting

1шт.

2

AT186577

Kit

D10W HEATER (DEERE DEALER OR DER DIRECT FROM ACTIVE GEAR)

1шт.

3

AT186578

Kit

SWITCH AND LED (DEERE DEALER ORDER DIRECT FROM ACTIVE GEAR)

1шт.

4

AT186671

Fitting

1шт.

5

H33801

Hose Fitting

2шт.

6

R123226

Seal

1шт.

7

R123345

Gasket

1шт.

8

R501373

Gasket

(SUB FOR R54638)

1шт.

9

TY22466

Clamp

4шт.

10

Housing

THERMOSTAT ( T166547 NO LONGER AVAILABLE)

1шт.

11

T166548

Plug

1шт.

12

U13639

O-Ring

2шт.

13

R46667

Clamp

ARшт.

14

24M7027

Washer

5.300 X 10 X 1 mm

2шт.

15

24M7239

Washer

10.700 X 21 X 2.500 mm

4шт.

16

Bracket

HEATER MOUNTING, RH ( T16 6544 NO LONGER AVAILABLE)

1шт.

17

Bracket

HEATER MOUNTING, LH ( T16 6545 NO LONGER AVAILABLE)

1шт.

18

T166818

Label

(SUB FOR T166602)(ARCTIC START)

1шт.

19

T166628

Bracket

1шт.

20

T166629

Tube

1шт.

21

T166636

Hose

OUTLET, 0.75 IN ID X 1.06 IN OD X 86.0 IN LG, MAKE FROM T78497 BULK ROLL, CUT TO SIZE

1шт.

22

T166637

Hose

INLET, 0.75 IN ID X 1.06 IN OD X 46 IN LG , MAKE FROM T78497 BULK ROLL, CUT TO SIZE

1шт.

23

12M7033

Lock Washer

10.500 mm

1шт.

24

14M7297

Nut

M5

1шт.

25

14M7400

Lock Nut

M10

4шт.

26

19M7372

Cap Screw

M5 X 16

1шт.

27

19M7572

Cap Screw

M10 X 45

4шт.

28

12M7006

Lock Washer

6 mm USED ON EXHAUST PIPE CLAMP

1шт.

29

24M7105

Washer

6 X 12 X 1.600 mm USED ON EXHAUST PIPE CLAMP

4шт.

30

14M7272

Nut

M6 USED ON EXHAUST PIPE CLAMP

1шт.

31

24H1325

Washer

15/32" X 59/64" X 0.065"

1шт.

32

AT190894

Kit

START (ARTIC) (SUB FOR AT186576 ) (INC LUDES AT190750 AND AT190749 WHOLEGOODS)

1шт.
