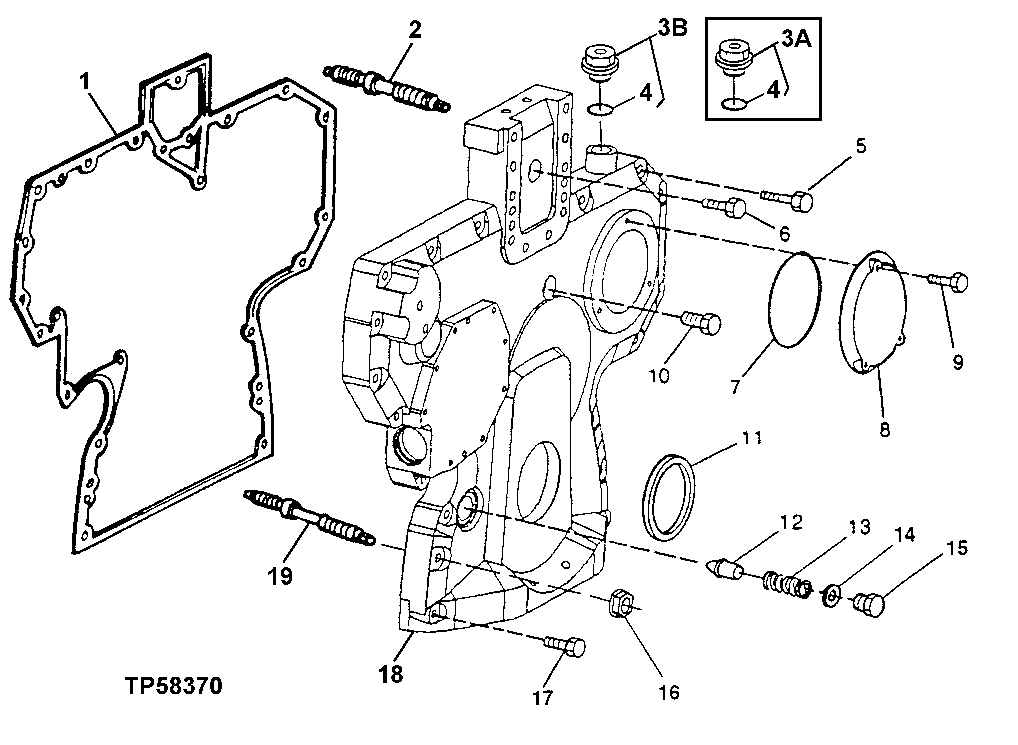

Запчасти John Deere 30LCR 111 - Timing Gear Cover ( - 829272) 0402B Camshaft And Valve Actuating Means PE6068HT051 PE6068HT051

1

R136515

Gasket

(USE W/ R504724, R505461 OR R501297)

1шт.

R520131

Gasket

(USE W/ R520129)

1шт.

2

R134518

Stud

2шт.

3A

R101085

Drain Plug

(SUB RE501938, THIS APPLICATION)

1шт.

3B

RE501938

Plug

1шт.

4

51M7044

O-Ring

17.300 X 2.200 mm

1шт.

5

19M8317

Screw

M8 X 40

6шт.

6

19M8291

Screw

M8 X 35

1шт.

19M7801

Screw

M8 X 60

1шт.

7

R121424

O-Ring

1шт.

8

R121411

Cover

1шт.

9

19M7775

Screw

M6 X 16

3шт.

10

RE67239

Screw

(SUB FOR RE67240)

1шт.

11

RE516340

Seal Kit

(SUB FOR RE59810 ) (MAR KED RE52346 OR RE505515)

1шт.

12

R83169

Valve

1шт.

13

T27658

Spring

1шт.

14

A4827R

Washer

1шт.

15

R91692

Fitting Plug

Oil Pressure Regulating

1шт.

16

14M7296

Flange Nut

M10

6шт.

17

19M7979

Screw

M8 X 55

2шт.

18

R505461

Cover

(SUB FOR R134530 OR R501297) (SU B R520129, R520131 AND RE515978)

1шт.

R520129

Cover

1шт.

19

R123584

Stud

4шт.
