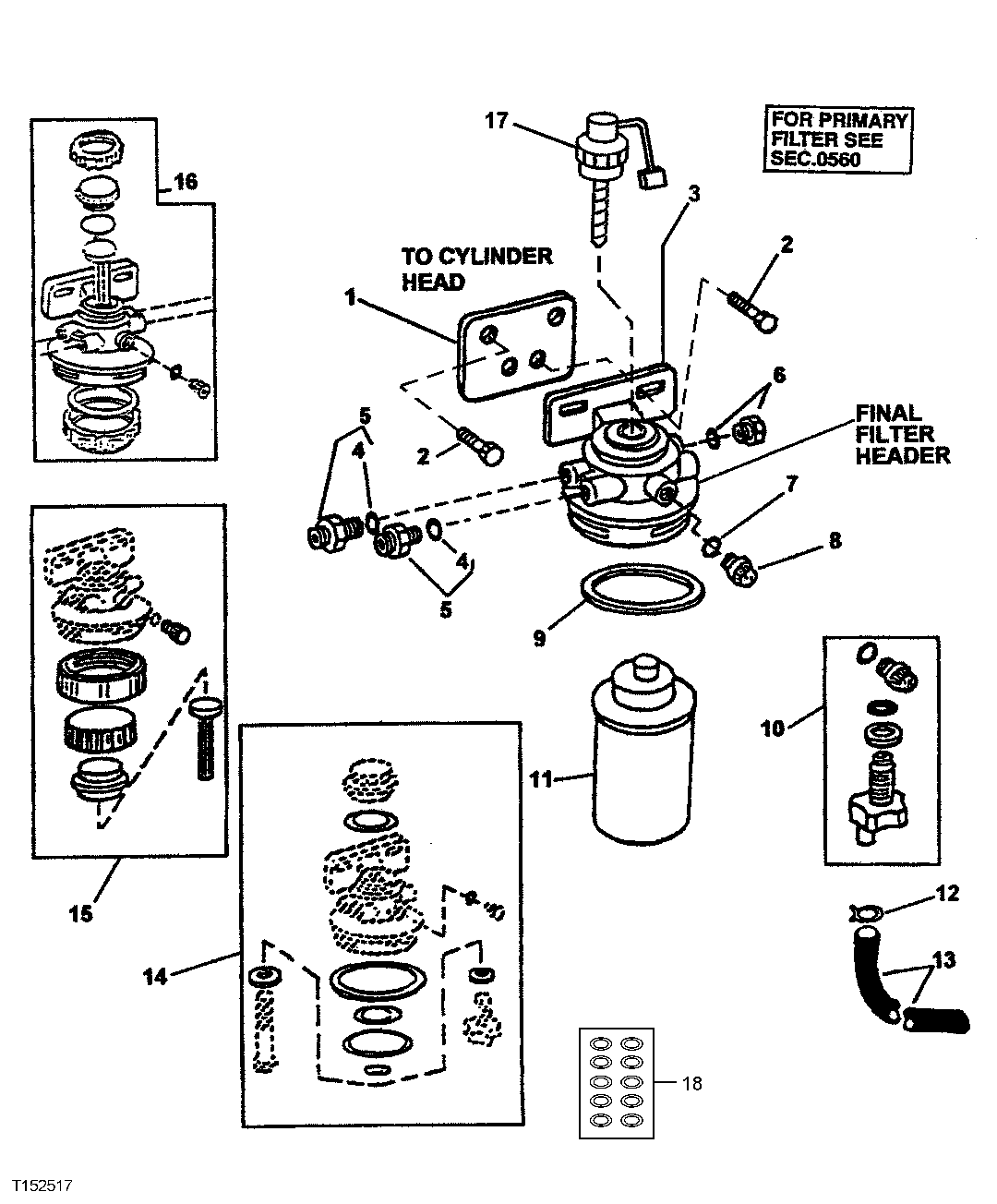

Запчасти John Deere 30LCR 96 - Final Fuel Filter, Components (046291 - ) 0420A Fuel Filter TO6068HT051 TO6068HT051

1

R123566

Bracket

1шт.

2

19M7784

Screw

M10 X 20

4шт.

3

Filter Head

1шт.

4

51M7040

O-Ring

9.300 X 2.200 mm

2шт.

5

RE60030

Fitting

2шт.

6

RE46686

Fitting

Metric

2шт.

RE56323

Fitting Plug

SAE

2шт.

7

R113562

O-Ring

1шт.

8

R113563

Drain Plug

(ALSO ORDER R113562)

1шт.

9

R113565

O-Ring

1шт.

10

RE60854

Drain Valve

Kit -Vent Plug

1шт.

11

RE62419

Fuel Filter

Includes Drain Valve

1шт.

12

T13254

Clamp

1шт.

13

R126086

Hose

1шт.

14

RE516553

Seal Kit

(SUB FOR RE50752)

1шт.

15

RE51649

Seal Kit

Mechanical

1шт.

16

RE70358

Filter Head

Final Filter

1шт.

17

RE504134

Heater

Fuel Filter Heater (24 -VOLT) Top Load Heater

1шт.

18

RE516513

Pump Repair Kit

(CONTAINS 10 O-RINGS) w/ Hand Primer

1шт.

RE516512

O-Ring Kit

(CONTAINS 10 O-RINGS) w/o Hand Primer

1шт.
