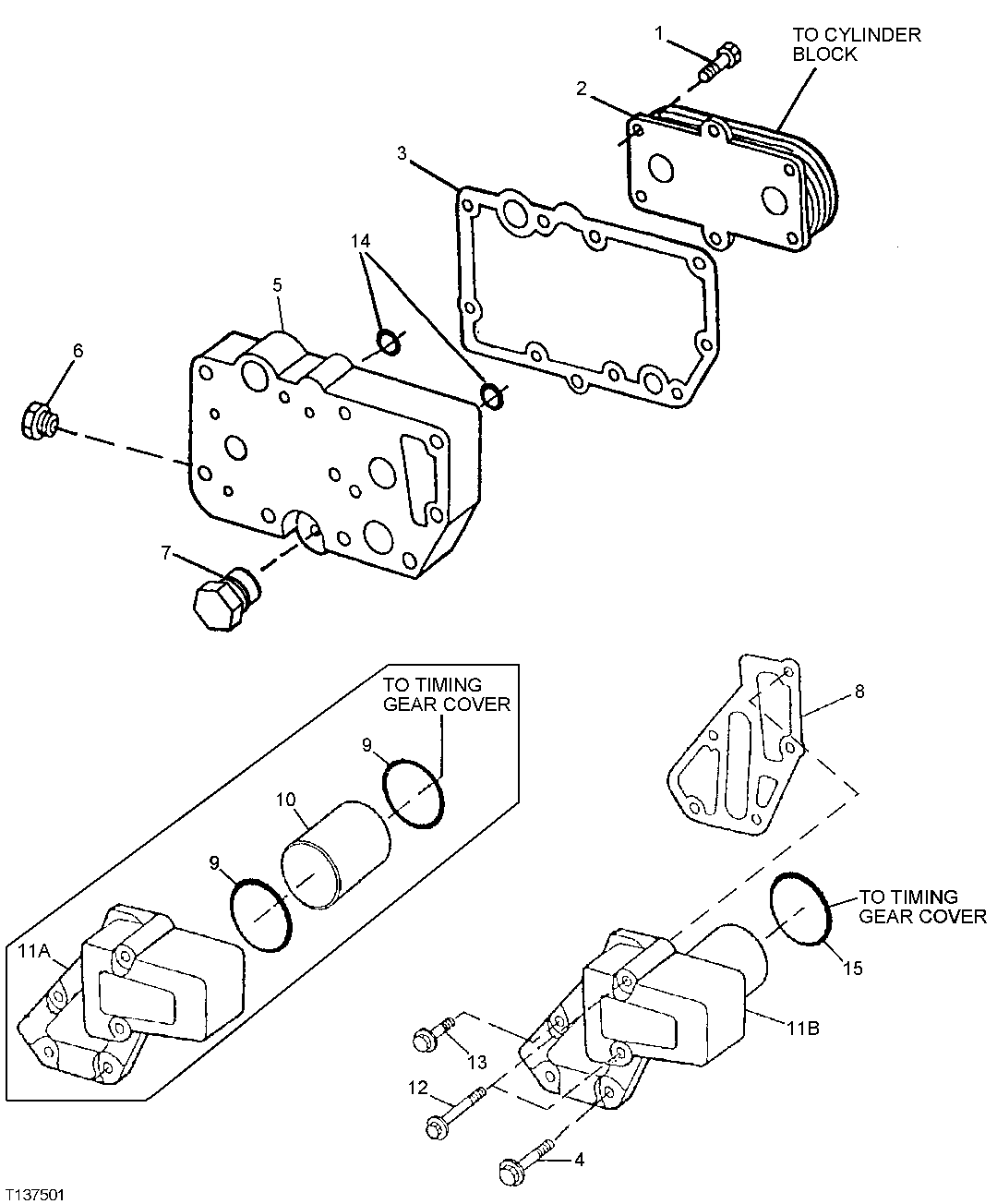

Запчасти John Deere 30LC 56 - Engine Oil Cooler (046291 - ) 0419A Engine Oil Cooler TO6068HT051 TO6068HT051

1

RE67231

Screw

M6 X 16 (WITH PRE-APPLIED SEALANT)

6шт.

2

RE59298

Oil Cooler

1шт.

3

R123501

Gasket

1шт.

4

T122075

O-Ring

2шт.

5

R123471

Housing

1шт.

6

RE46686

Fitting

(METRIC)

1шт.

RE56323

Fitting Plug

(SAE)

1шт.

7

RE46685

Fitting Plug

1шт.

8

R501428

Gasket

1шт.

9

R61105

O-Ring

2шт.

10

R115252

Bushing

1шт.

11A

R135177

Adapter Fitting

(SUB R502811)

1шт.

11B

R502811

Adapter Fitting

1шт.

12

19M7802

Screw

M8 X 65

2шт.

13

19M7970

Screw

M8 X 100

2шт.

14

RE67238

Screw

M8 X 20 (WITH PRE-APPLIED SEALANT)

1шт.

15

R504734

O-Ring

1шт.
