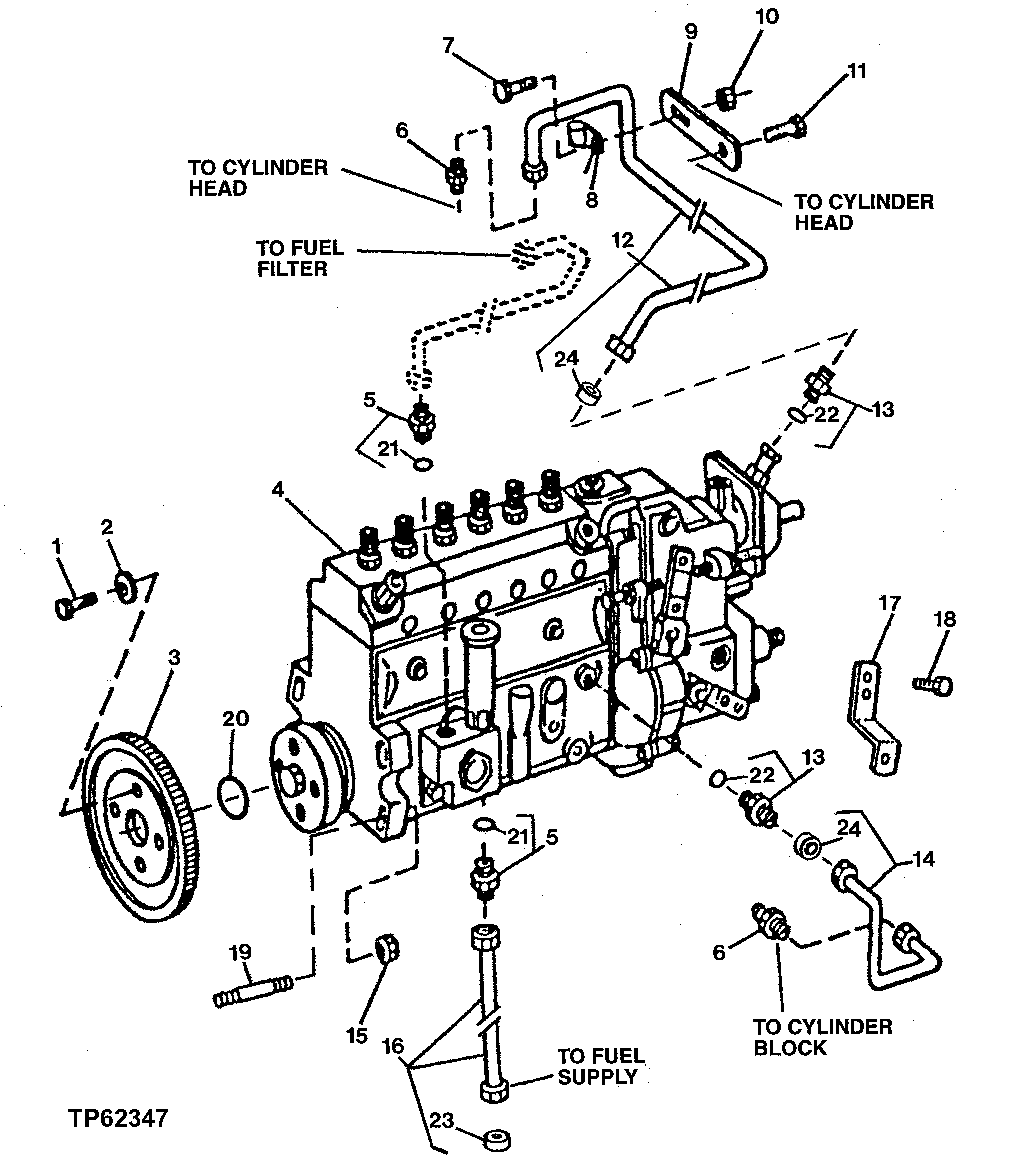

Запчасти John Deere 30LC 46 - Fuel Injection Pump / Lines 0413A Fuel Injection System TO6068HT051 TO6068HT051

1

19H3336

Screw

3/8" X 7/8"

4шт.

2

R63845

Washer

10.500 X 17.500 X 3 mm ( 0.413" X 0.689" X 0.118")

4шт.

3

R500084

Gear

(60 TEETH)

1шт.

4

RE59945

Fuel Injection Pump

(AS2500) (NIPPONDENSO 24-VOLT)

1шт.

SE500843

Fuel Injection Pump Reman

(DENSO 092000-2980) (REMAN FOR RE59945)

1шт.

5

RE60031

Fitting

2шт.

6

R63604

Fitting

2шт.

7

19M7865

Screw

M8 X 16

ARшт.

8

T74410

Clamp

ARшт.

9

R56588

Strap

ARшт.

10

14M7298

Flange Nut

M8

ARшт.

11

19M8324

Cap Screw

M10 X 16

ARшт.

12

RE70285

Aneroid Line

1шт.

RE506237

Aneroid Line

1шт.

13

RE60028

Fitting

2шт.

14

RE60064

Oil Line

(LUBE)

1шт.

15

14M7296

Flange Nut

M10

4шт.

16

RE44843

Fuel Line

1шт.

R67092

Sealing Washer

1шт.

17

R133025

Lever

1шт.

18

19M8826

Screw

M6 X 16

2шт.

19

R134212

Stud

4шт.

20

R73864

O-Ring

75 X 3 mm (2-61/64" X 0.118")

1шт.

21

51M7041

O-Ring

11.300 X 2.200 mm

2шт.

22

51M7039

O-Ring

8.100 X 1.600 mm

2шт.

23

R67092

Sealing Washer

2шт.

24

R51936

Sealing Washer

4шт.
