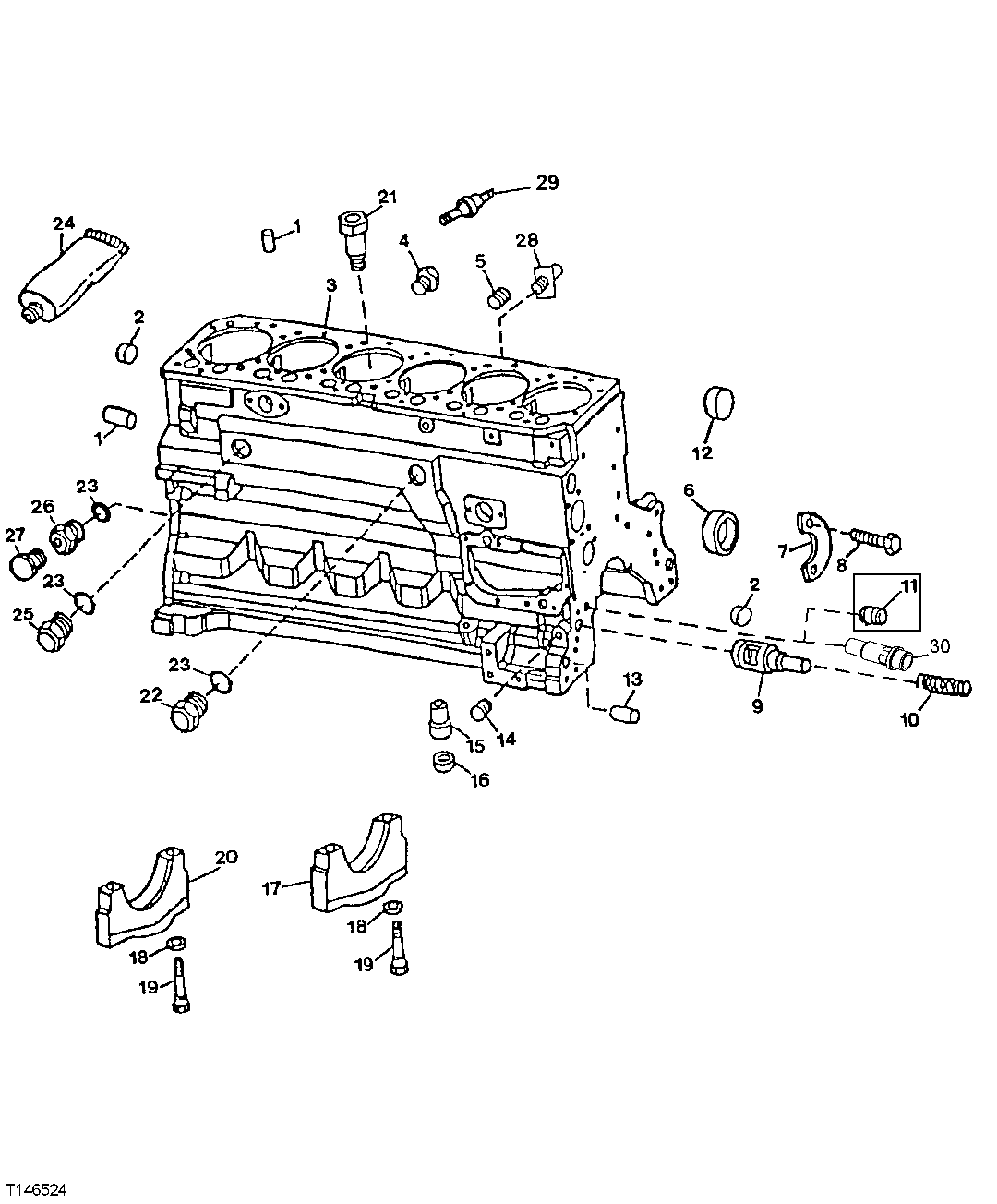

Запчасти John Deere 30LC 33 - Cylinder Block / Main Bearing Cap (046291 - ) 0404A Cylinder Block TO6068HT051 TO6068HT051

1

R48685

Dowel Pin

2шт.

2

T18891

Plug

2шт.

3

Cylinder Block

(MARKED R119565 ) (ORDER RE65964)

1шт.

4

R55233

Pipe Plug

1/4in

1шт.

5

R104592

Pipe Plug

7шт.

6

R119874

Bushing

CAMSHAFT

1шт.

7

R132518

Plate

1шт.

8

19M8999

Screw

M8 X 25

2шт.

9

R121043

Valve

ENGINE OIL BY-PASS

1шт.

10

R111137

Spring

1шт.

11

R26493

Bushing

OIL PRESSURE REGULATING

1шт.

12

R116466

Bushing

1шт.

13

R26650

Dowel Pin

2шт.

14

15H623

Pipe Plug

3/8"

1шт.

15

R115390

Bushing

1шт.

16

R75892

O-Ring

1шт.

17

R114241

Bearing Cap

MAIN BEARING

6шт.

18

T20168

Washer

14шт.

19

T23474

Cap Screw

14шт.

20

R132186

Bearing Cap

(MAIN THRUST BEARING)

1шт.

21

R131182

Orifice

6шт.

22

R39741

Drain Plug

1шт.

23

U13639

O-Ring

2шт.

24

PM38655

Sealant

(SUB FOR T43514) (PLASTIC GASKET)

1шт.

25

R39741

Drain Plug

(WITHOUT CAB HEATER)

1шт.

26

R123616

Plug

(WITH CAB HEATER)

1шт.

27

RE46685

Fitting Plug

(WITHOUT CAB HEATER)

1шт.

28

AT13740

Drain Valve

1шт.

29

AT145384

Switch

(OIL PRESSURE)

1шт.

30

RE505501

Bleed Valve

(OIL PRESSURE REGULATING)

1шт.
