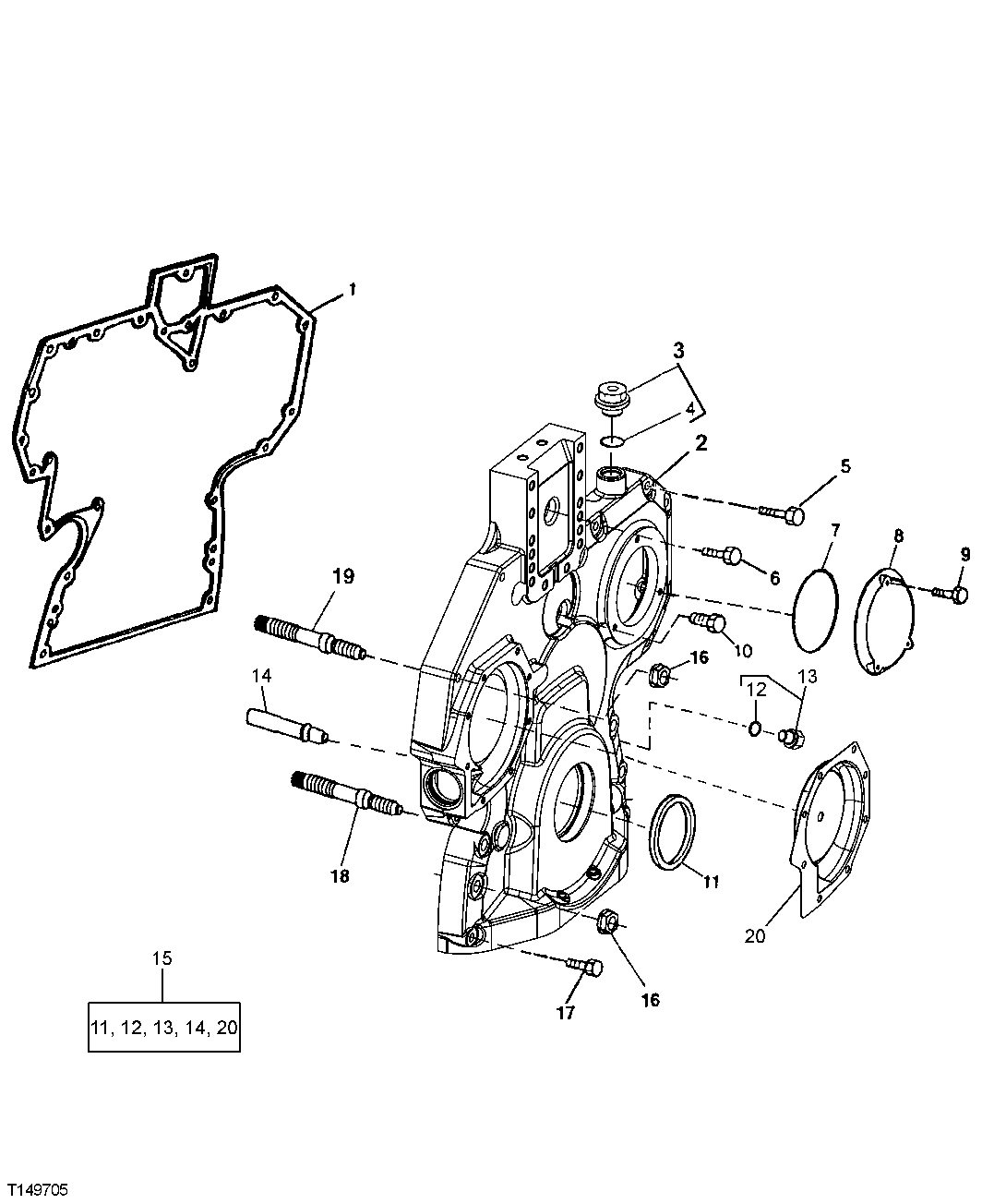

Запчасти John Deere 30LC 28 - Timing Gear Cover (900552 - ) 0402A Camshaft And Valve Actuating Means TO6068HT051 TO6068HT051

1

R136515

Gasket

(USE WITH R505461 OR R504724)

1шт.

R520131

Gasket

(USE WITH R520129)

1шт.

2

R504724

Cover

(USE WITH R136515 ) (SUB R5 20129, R520131 AND RE515978)

1шт.

R520129

Cover

(USE WITH R520131)

1шт.

3

RE501938

Plug

(WITHOUT TACHOMETER SENSOR)

1шт.

4

51M7044

O-Ring

17.300 X 2.200 mm

1шт.

5

19M8317

Screw

M8 X 40

6шт.

19M7867

Screw

M8 X 25

1шт.

RE67239

Screw

1шт.

6

19M8291

Screw

M8 X 35

1шт.

7

R121424

O-Ring

1шт.

8

R121411

Cover

1шт.

9

19M7775

Screw

M6 X 16

3шт.

10

19M7801

Screw

M8 X 60

1шт.

11

RE516340

Seal

(SUB FOR RE59810 ) (MAR KED RE52346 OR RE505515)

1шт.

12

51M7044

O-Ring

17.300 X 2.200 mm

1шт.

13

RE501938

Plug

1шт.

14

RE505501

Bleed Valve

1шт.

15

RE515978

Cover Kit

1шт.

16

14M7296

Flange Nut

M10

6шт.

17

19M7979

Screw

M8 X 55

2шт.

18

R123584

Stud

4шт.

19

R134518

Stud

2шт.

20

RE508566

Insert

(WATER PUMP INSERT REPAIR)

1шт.
