341 - Swing Device

Запчасти John Deere 30LC 341 - Swing Device 4360 Hydraulics

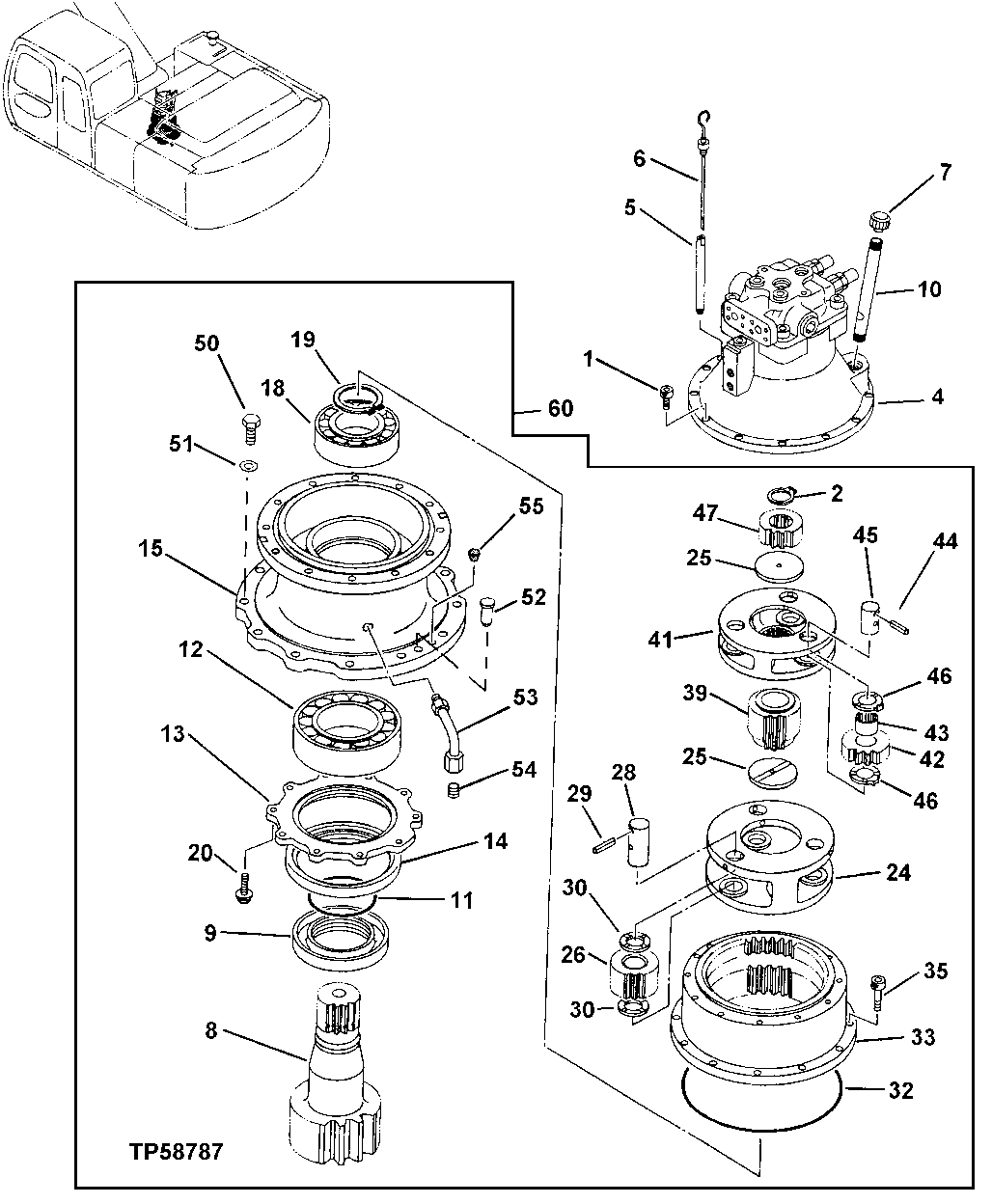

Схема запчастей John Deere 30LC - 341 - Swing Device 4360 Hydraulics
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

19M8168

Screw

M12 X 25

12шт.

2

40M7047

Snap Ring

1шт.

4

AT218129

Motor

(USE IF AVAILABLE) (IF AT21812 9 NOT AVAILABLE, SUB AT183690)

1шт.

AT183690

Hydraulic Motor Reman

(REMAN FOR AT218129)

1шт.

5

4264452

Tube

(SUB FOR AT154293)

1шт.

6

3074223

Dipstick

(SUB FOR AT213790)

1шт.

7

4343365

Cap

(SUB FOR AT204965)

1шт.

8

2040441

Pinion Shaft

(SUB FOR AT217936)

1шт.

9

4256346

Sleeve

(SUB FOR AT200996)

1шт.

10

4332658

Tube

(SUB FOR AT213843)

1шт.

11

A811140

O-Ring

139.400 X 3.100 mm (5.488" X 0.122") (SUB FOR TH111062)

1шт.

12

AT160517

Spherical Roller Bearing

1шт.

13

3060561

Cover

(SUB FOR AT158507)

1шт.

14

4424511

Seal

1шт.

15

1014810

Housing

(SUB FOR AT200953)

1шт.

18

TH104674

Spherical Roller Bearing

1шт.

19

991354

Snap Ring

(SUB FOR TH111641)

1шт.

20

19M7493

Cap Screw

M12 X 40

10шт.

12H301

Lock Washer

1/2"

10шт.

24

1014808

Planet Pinion Carrier

(SUB FOR AT200951)

1шт.

25

4194454

Washer

(SUB FOR TH111267)

2шт.

26

9734405

Gear

(SUB FOR AT201190)

3шт.

28

4244694

Pin Fastener

(SUB FOR TH109481)

3шт.

29

34M5564

Spring Pin

6 X 70 mm

6шт.

30

4266934

Plate

(SUB FOR AT154772)

6шт.

32

4254449

O-Ring

(SUB FOR AT200993)

1шт.

33

1014811

Ring Gear

(SUB FOR AT200954)

1шт.

35

19M8609

Cap Screw

M20 X 55

12шт.

39

3050683

Sun Gear

(SUB FOR AT200969)

1шт.

41

1023320

Planet Pinion Carrier

(SUB FOR AT218164)

1шт.

42

3077017

Gear

(SUB FOR AT218165)

3шт.

43

4183818

Needle Bearing

(SUB FOR T107728)

3шт.

4443139

Needle Bearing

3шт.

44

4508560

Spring Pin

(SUB FOR AT218166)

3шт.

45

4203533

Pin

(SUB FOR AT131753)

3шт.

46

4336929

Wear Plate

(SUB FOR AT218167)

6шт.

47

3077033

Sun Gear

(SUB FOR AT218168)

1шт.

50

J922270

Bolt

(SUB FOR AT217707)

12шт.

51

J222022

Washer

(SUB FOR AT217701)

12шт.

52

4080398

Pin Fastener

(SUB FOR TH101880)

2шт.

53

3088126

Line

(SUB FOR AT154836)

1шт.

54

94-2012

Fitting Plug

(SUB FOR TH100648 ) (SUB FOR TH100653)

1шт.

55

99M7010

Plug

2шт.

60

9166293

Device

(SUB FOR AT218169)(SWIN G DEVICE WITHOUT MOTOR)

1шт.
