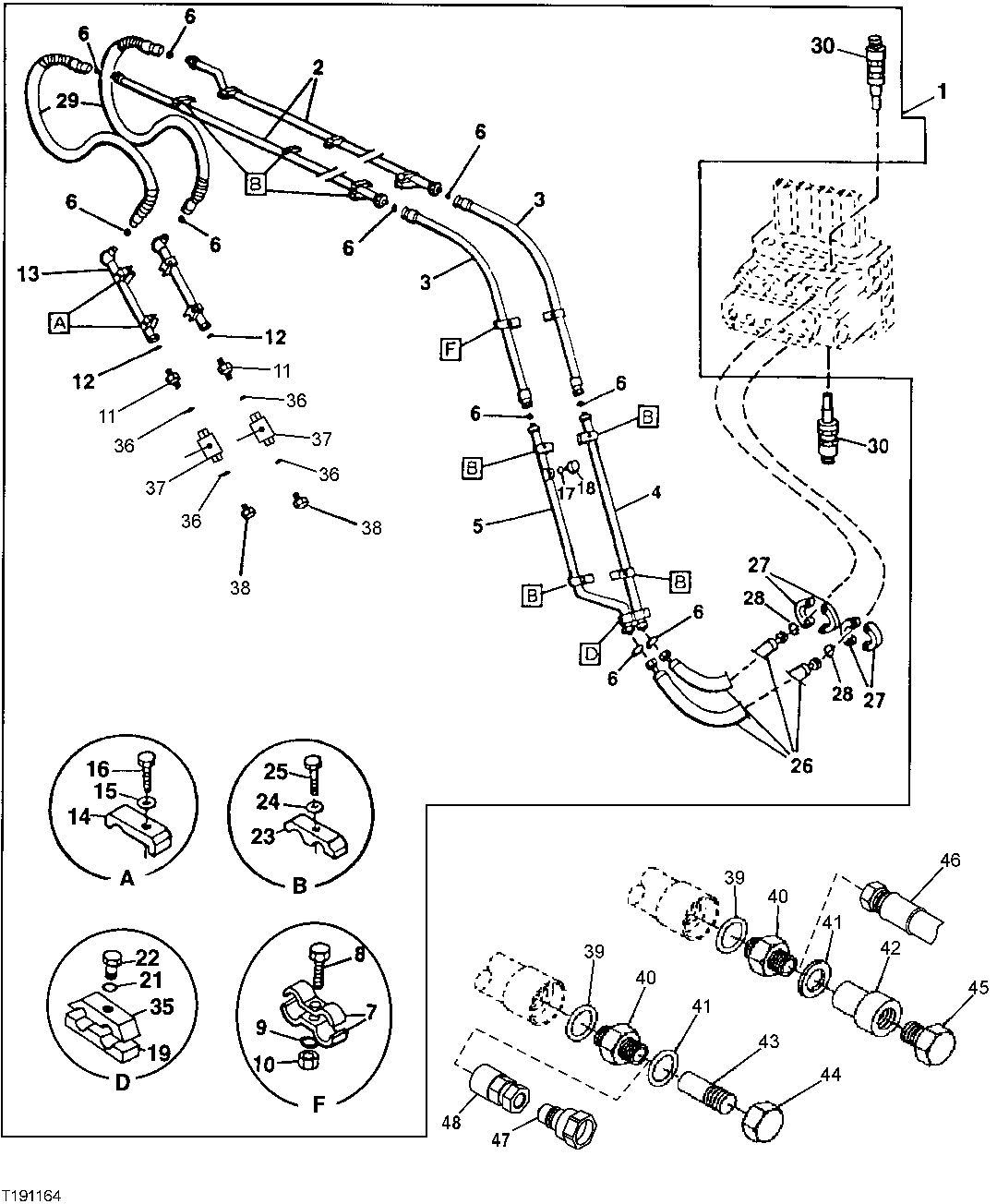

Запчасти John Deere 30LC 338 - AUXILIARY HYDRAULIC PLUMBING (FIELD KIT) 3360 Hydraulic System

1

AT196897

Kit

WHOLEGOODS (AUXILIARY HYDRAULIC LINE K IT) (ALSO ORDER AT160364 AND AT162716)

1шт.

2

Oil Tube

( AT159786 NLA W/ASSY)

2шт.

3

AT159782

Hydraulic Hose

36.5252" X 1905 mm (75") X 36.5252"

2шт.

4

Tube

( AT182177 NLA W/ ASSY)

1шт.

5

Oil Line

( AT182176 NLA W/ ASSY)

1шт.

6

O-Ring

( T76938 NLA W/ ASSY)

10шт.

7

Clamp

( 4202103 NLA W/ ASSY) (SUB FOR TH108302)

4шт.

8

19M7361

Cap Screw

M12 X 50

2шт.

9

Lock Washer

( 12H301 NLA)

2шт.

10

14M7275

Nut

M12

2шт.

11

Adapter Fitting

( 38H1196 NLA)

2шт.

12

O-Ring

( T78612 NLA W/ ASSY)

2шт.

13

Oil Line

( AT159934 NLA W/ ASSY)

2шт.

14

4190127

Clamp

(SUB FOR TH108313)

4шт.

15

Lock Washer

( 12H301 NLA)

4шт.

16

Cap Screw

( 19M7753 NLA)

4шт.

17

Back-Up Ring

( T77858 NLA W/ ASSY)

1шт.

18

Fitting

( 38H1419 NLA)

1шт.

19

Clamp

( 4249704 NLA W/ ASSY) (SUB FOR AT122946)

1шт.

21

Lock Washer

( 12H301 NLA)

1шт.

22

Cap Screw

( 19M7758 NLA)

1шт.

23

4153488

Clamp

(SUB FOR TH103780)

10шт.

24

Lock Washer

( 12H301 NLA)

10шт.

25

Cap Screw

( 19M7753 NLA)

10шт.

26

Hydraulic Hose

( AT182213 NLA W/ ASSY)

2шт.

27

H61354

Flange Fitting

(SUB FOR R29424, THIS APPLICATION)

4шт.

28

O-Ring

(SUB FOR T59014, THIS APPLI CATION)( T78313 NLA W/ ASSY)

2шт.

29

AT160364

Hydraulic Hose

36.5252" X 1600 mm (63") X 36.5 252" (USE WITH 2.96M STANDARD AR M) (NOT INCLUDED IN AT196897 KIT )

2шт.

AT162716

Hydraulic Hose

(USE WITH 3.61M ARM) (NOT INCLUDED IN AT196897 KIT)

2шт.

30

Pressure Relief Valve

( 4282718 NLA W/ ASSY) (SUB FOR AT155693)

2шт.

35

Clamp

( 4189860 NLA) (SUB FOR TH108314)

1шт.

36

O-Ring

( R29936 NLA W/ ASSY)

4шт.

37

Ball

( AT196851 NLA W/ ASSY) (BALL VALVE)

2шт.

38

Fitting Plug

( R36636 NLA W/ ASSY)

2шт.

39

O-Ring

( R29936 NLA W/ ASSY)

2шт.

40

38H1216

Adapter Fitting

(1in. ORFS)

2шт.

38H1194

Adapter Fitting

(3/4in. ORFS)

2шт.

AT46961

Union Fitting

(1in. SAE, MALE)

2шт.

T27603

Fitting

(3/4in. 37 DEGREE)

2шт.

T26767

Fitting

(1in. 37 DEGREE)

2шт.

AT83306

Adapter Fitting

(3/4in. SAE, MALE)

2шт.

41

O-Ring

( R29936 NLA W/ ASSY)

2шт.

42

AT186111

Quick Coupler

(1in. FEMALE)(SCREW TOGETHER COUPLER)

1шт.

Kit

( AT189410 NO LONGER AVAILABLE)

1шт.

43

AT186112

Quick Coupler

(1in. MALE)(SCREW TOGETHER COUPLER)

1шт.

Kit

( AT189409 NO LONGER AVAILABLE)

1шт.

44

AT186113

Cap

1шт.

45

AT186114

Plug

1шт.

46

X1JS78-20-16

Hose Fitting

HOSE END - STRAIGHT - 1 1/4 X 1 IN

2шт.

X1J978-20-16

Elbow Fitting

HOSE END - 90 DEG 1 1/4 X 1 IN

2шт.

47

AT117365

Hydr. Quick Coupler Plug

MALE QUICK COUPLER (-12) 1 1/16 SAE O-RING

2шт.

AT120498

Coupling

MALE QUICK COUPLER (-16) 1 5/16 SAE O-RING

2шт.

48

AT117364

Hydr. Quick Coupler Socket

FEMALE QUICK COUPLER ( -12) 1 1/16 SAE O-RING

2шт.

AT120499

Coupling

FEMALE QUICK COUPLER ( -16) 1 5/16 SAE O-RING

2шт.
