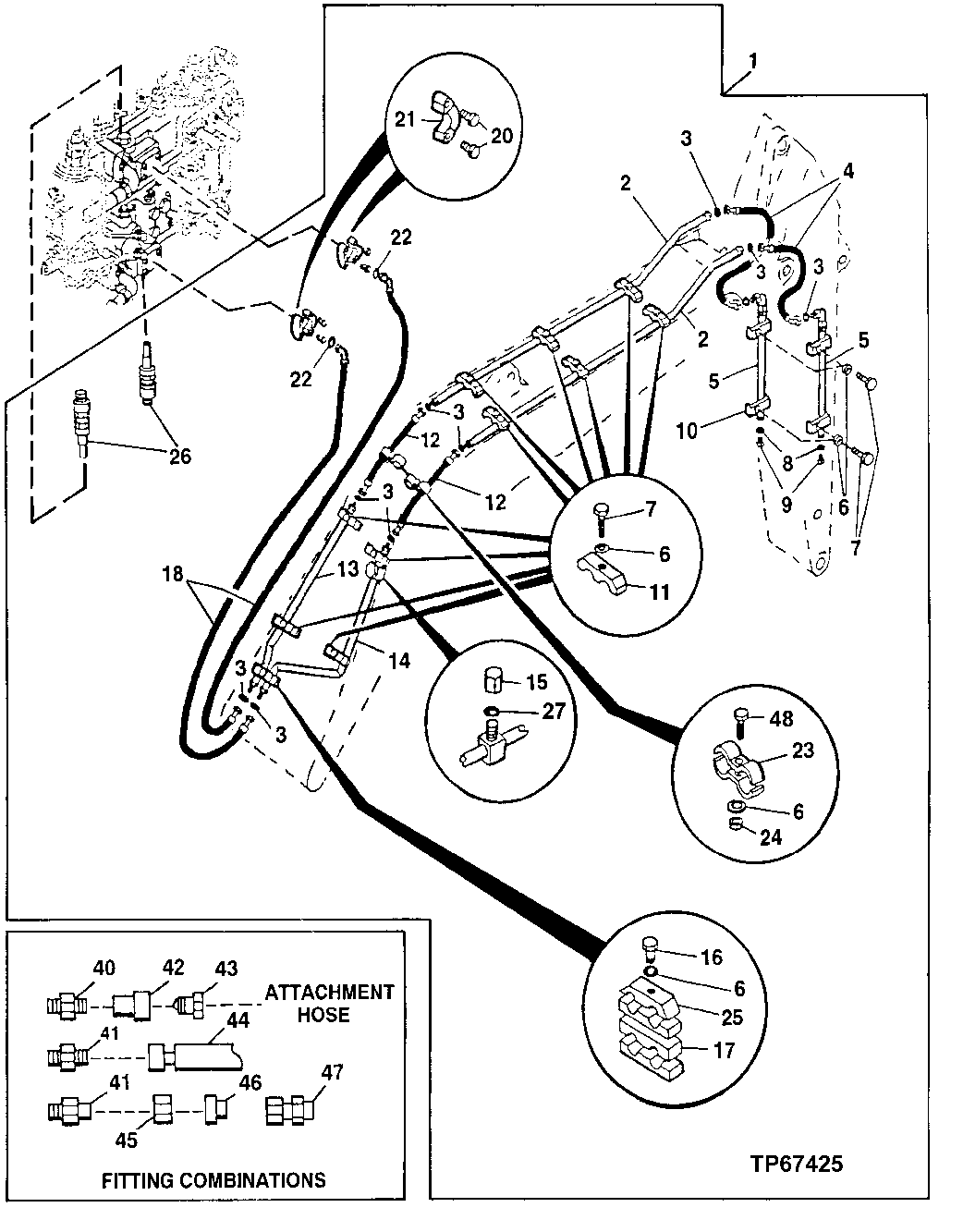

Запчасти John Deere 30LC 337 - AUXILIARY HYDRAULIC PLUMBING (BOOM AND ARM KIT) 3360 Hydraulic System

1

Kit

(AUXILIARY PLUMBING) WHOLEGOODS ( AT181 916 NO LONGER AVAILABLE, SUB COMPONENTS)

1шт.

2

Oil Tube

( AT159786 NLA W/ ASSY) (AUXILIARY, FRONT BOOM)

2шт.

3

O-Ring

( T76938 NLA W/ ASSY)

9шт.

4

AT160364

Hydraulic Hose

(3.75 M ARM (2 USED) (MUST BE ORDERED SEPAR ATELY, NOT PART OF AT181916 AUXILIARY KIT)

2шт.

AT162716

Hydraulic Hose

(3.1 M ARM (2 USED) (MUST BE ORDERED SEPAR ATELY, NOT PART OF AT181916 AUXILIARY KIT)

2шт.

5

Oil Line

( AT159934 NLA W/ ASSY) (AUXILIARY, ARM)

2шт.

6

Lock Washer

( 12H301 NLA) (JDS 12 MEDIUM SPRING)

17шт.

7

Cap Screw

( 19M7753 NLA)

14шт.

8

O-Ring

( T78612 NLA W/ ASSY)

2шт.

9

38H1151

Fitting Plug

(O-RING, FSF)

2шт.

10

4190127

Clamp

(SUB FOR TH108313)

4шт.

11

4153488

Clamp

(SUB FOR TH103780)

10шт.

12

Hydraulic Hose - Fabricate

( AT159782 NLA W/ ASSY ) (AUXILIARY, MIDDLE)

2шт.

13

AT182039

Oil Line

(AUXILIARY)

1шт.

14

AT182040

Oil Line

(AUXILIARY) (3.75 M LENGTH ARM - REQUIRES (2) AT182039 HOSE)

1шт.

15

Fitting

(FLAT FACE SEAL) ( 38H1419 NLA) ( SUB FOR 38H1418, THIS APPLICATION)

1шт.

16

Cap Screw

( 19M7758 NLA)

1шт.

17

Clamp

( 4249704 NLA W/ ASSY) (SUB FOR AT122946)

1шт.

18

Hydraulic Hose

( AT182213 NLA W/ ASSY) (AUXILIARY, REAR)

2шт.

20

Cap Screw

(USE EXISTING CAPSCREW)

8шт.

21

Flange Fitting

( H61354 NLA W/ ASSY) (SPLIT, HALF CLAMP)

4шт.

22

O-Ring

( T78313 NLA W/ ASSY)

2шт.

23

Clamp

( 4202103 NLA W/ ASSY) ( SUB FOR TH108302 RUBBER)

4шт.

24

14M7275

Nut

M12

2шт.

25

Clamp

( 4189860 NLA) (SUB FOR TH108314)

1шт.

26

Pressure Relief Valve

( 4282718 NLA W/ ASSY) (SUB FOR AT155693)

2шт.

27

Back-Up Ring

( T77858 NLA W/ ASSY) (SUB F OR T59014, THIS APPLICATION)

1шт.

40

Adapter Fitting

( 38H1196 NLA) (-20) 1 11/16 ORFS X (-16) 5/16 SAE O-RING

2шт.

4207425

Adapter Fitting

(SUB FOR TH111740)(-20) 1 1 1/16 ORFS X (-16) 1 IN BSPP

2шт.

38H1165

Adapter Fitting

(-20) 1 11/16 ORFS X (-20) 1 5/8 SAE O-RING

2шт.

4267610

Adapter Fitting

(SUB FOR AT137960)(-20) 1 11/ 16 ORFS X (-20) 1 1/4 IN BSPP

2шт.

41

38H1282

Union Fitting

(-20) 1 11/16 ORFS X (-20) 1 11/16 ORFS

2шт.

42

AT117364

Hydr. Quick Coupler Socket

FEMALE QUICK COUPLER ( -12) 1 1/16 SAE O-RING

2шт.

AT120499

Coupling

FEMALE QUICK COUPLER ( -16) 1 5/16 SAE O-RING

2шт.

43

AT117365

Hydr. Quick Coupler Plug

MALE QUICK COUPLER (-12) 1 1/16 SAE O-RING

2шт.

AT120498

Coupling

MALE QUICK COUPLER (-16) 1 5/16 SAE O-RING

2шт.

44

X1JS78-20-16

Hose Fitting

HOSE END - STRAIGHT - 1 1/4 X 1 IN

2шт.

X1J978-20-16

Elbow Fitting

HOSE END - 90 DEG 1 1/4 X 1 IN

2шт.

45

X20BL-S

Tube Nut

ORFS (-20) 1 11/16

2шт.

46

38H1477

Reducer

ORFS (-20) TO (-12)

2шт.

47

38H1070

Fitting

(1 3/16 ORFS X 1 1/16 SAE O-RING)

2шт.

48

19M7361

Cap Screw

M12 X 50

2шт.
