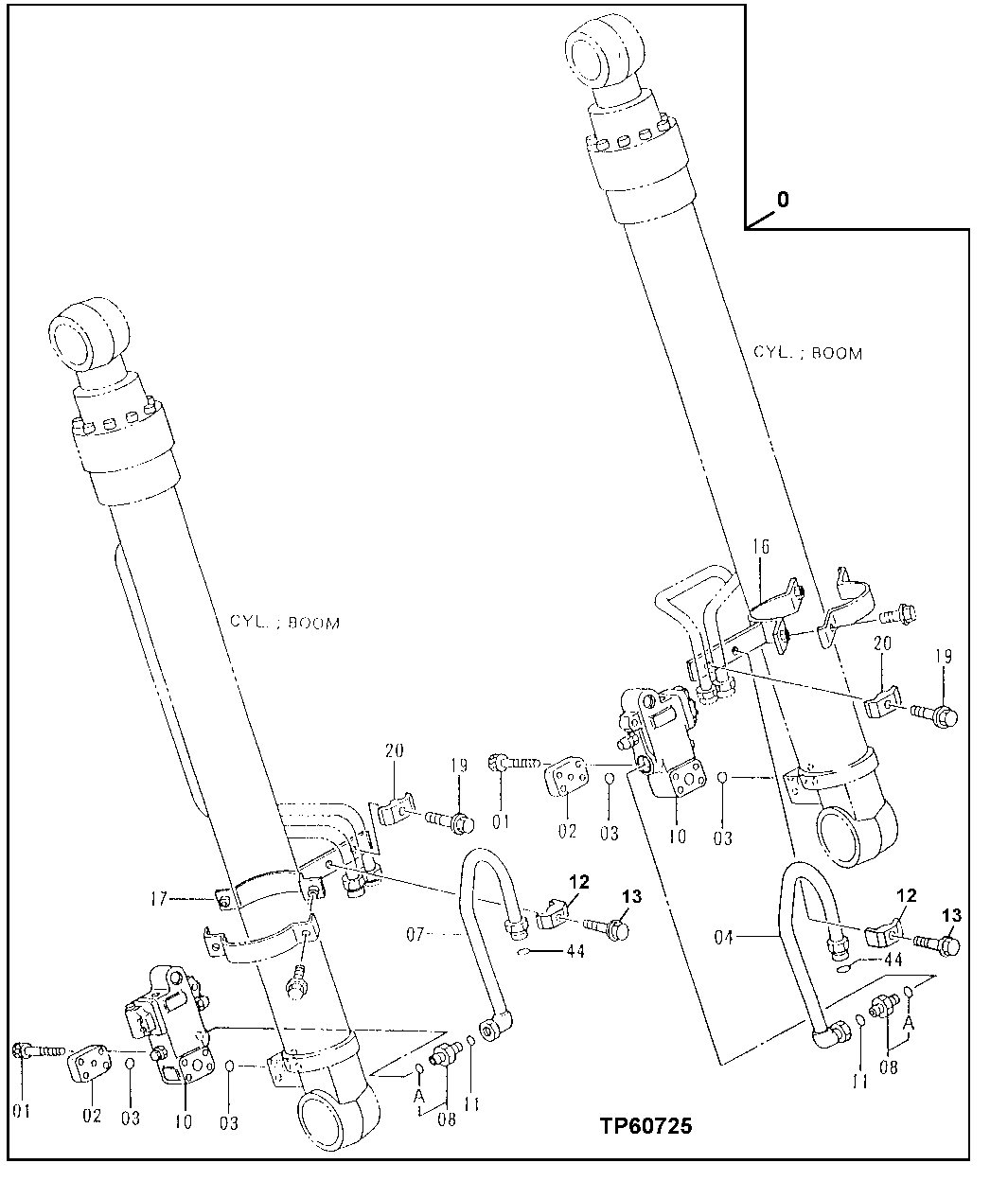

Запчасти John Deere 30LC 335 - BOOM CYLINDER LOAD LOWERING VALVE KIT 3360 Hydraulic System

0

Kit

AT182726 NLA Contains All Items On Thi s Page Additional Components On Separate Page Boom Cylinder Load Lowering Valve

1шт.

1

19M8693

Screw

M12 X 100 SUB FOR AT217703 OR J781200

8шт.

2

Flange

SUB FOR AT173711; 4284614 NLA

2шт.

3086613

Flange

ALSO ORDER 4422953

2шт.

3

AT264324

O-Ring

SUB FOR TH100044

4шт.

4

8060458

Oil Line

SUB FOR AT173712

1шт.

7

8060459

Oil Line

SUB FOR AT173713

1шт.

8

4189535

Adapter Fitting

SUB FOR AT114853

2шт.

8A

TH101926

O-Ring

28.700 X 3.500 mm (1.130" X 0.138")

1шт.

10

4311303

Flow Control Hyd. Valve

SUB FOR AT173709 Holding

2шт.

11

T76938

O-Ring

23.520 X 1.780 mm (0.926" X 0.070")

2шт.

12

4190126

Clamp

SUB FOR TH109830

2шт.

13

19M8348

Cap Screw

M12 X 65

2шт.

16

8053746

Clamp

SUB FOR AT173714

1шт.

17

8053747

Clamp

SUB FOR AT173715

1шт.

19

19M8348

Cap Screw

M12 X 65

2шт.

20

Clamp

4285723 NLA; ORDER 4189859 Rubber

2шт.

4189859

Clamp

Steel

2шт.

44

T77858

O-Ring

18.771 X 1.778 mm (0.739" X 0.070")

2шт.

72

4422953

Pipe Plug

Not Illustrated

2шт.
