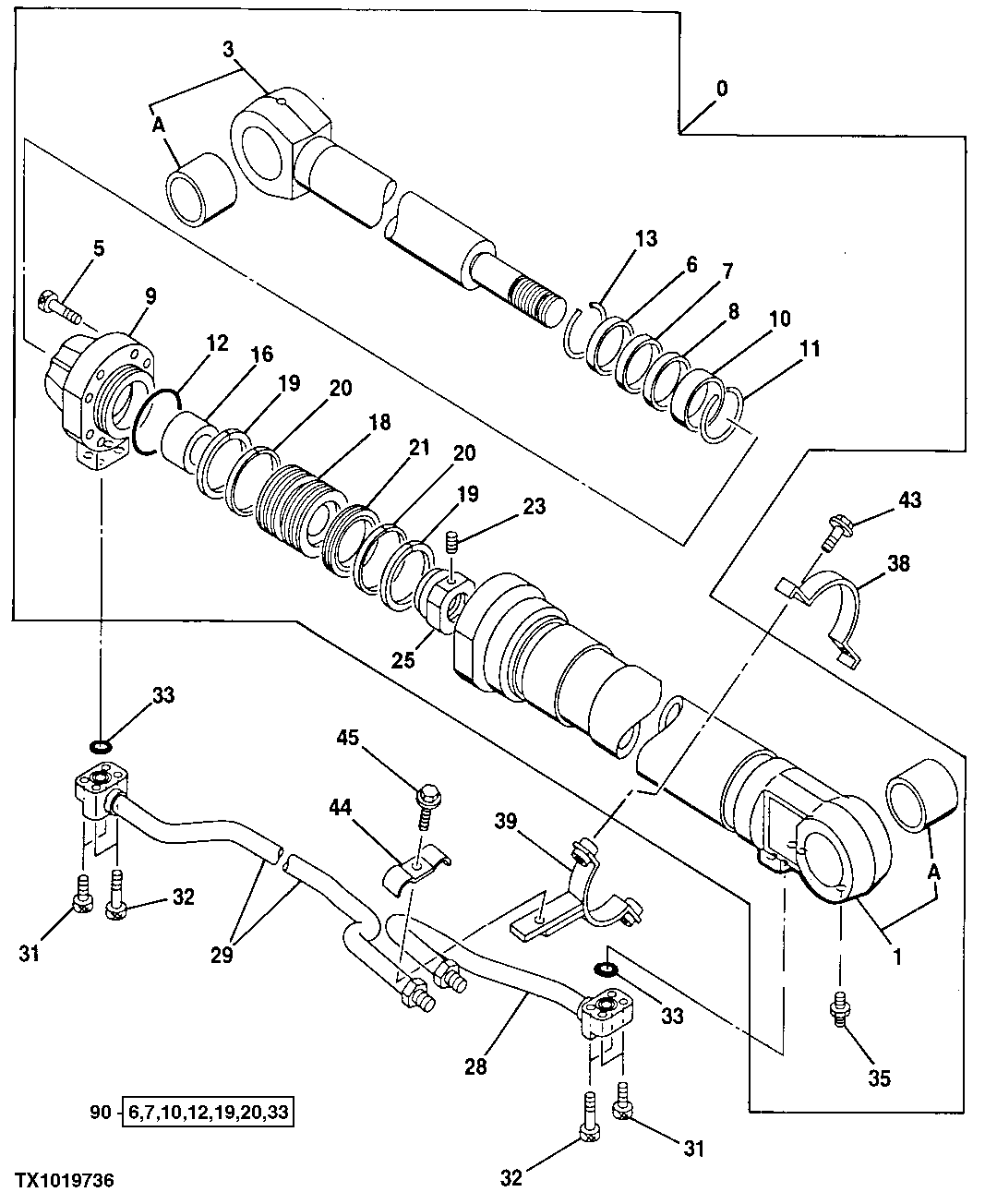

Запчасти John Deere 30LC 323 - Right Boom Cylinder 3360 Hydraulic System

0

Cylinder Reman

AT264214 NLA, SUB FOR AT154864

1шт.

Cylinder Reman

AT264214 NLA, SUB FOR AT185 406 OR 9178499 Remanufactured

1шт.

1

4645991

Tube

SUB FOR AT154814 OR 9121232

1шт.

4645991

Tube

SUB FOR PG201288

1шт.

1A

3054062

Bushing

90 X 105 X 85 mm (3.543" X 4.1 34" X 3.346") SUB FOR AT154689

1шт.

3

Compressor Rod

AT154812 AND 7021845 NLA

1шт.

7035950

Rod

SUB FOR AT185407

1шт.

7021845

Compressor Rod

SUB FOR PG201391

1шт.

3A

3054062

Bushing

90 X 105 X 85 mm (3.543" X 4.1 34" X 3.346") SUB FOR AT154689

1шт.

5

M342280

Screw

M22 X 80 SUB FOR TH110086

8шт.

6

T204375

Seal

SUB FOR AT217759, AT181238 AND AT264293

1шт.

7

AT264395

Seal

SUB FOR TH110018

1шт.

8

Ring

1шт.

9

1023338

Hydr. Cylinder Rod Guide

SUB FOR AT217720

1шт.

10

AT264321

Bushing

SUB FOR AT154779 OR AT264273

1шт.

11

4264983

Snap Ring

SUB FOR AT131251

1шт.

12

AT264271

O-Ring

SUB FOR AT154736

1шт.

13

4369507

Ring

SUB FOR AT217806

1шт.

16

4371498

Spacer

SUB FOR AT217812

1шт.

3079628

Cushion

SUB FOR AT185408

1шт.

18

3050116

Piston

SUB FOR AT154678

1шт.

19

AT264265

Ring

SUB FOR AT154700

2шт.

20

AT264270

Wear Ring

SUB FOR AT154735

2шт.

21

AT264296

Seal

SUB FOR AT218147

1шт.

23

4201806

Set Screw

M12 X 20 SUB FOR TH110066

1шт.

25

3050115

Nut

SUB FOR AT154677

1шт.

28

8046949

Line

SUB FOR AT154823

1шт.

29

8046953

Line

SUB FOR AT154827

1шт.

31

19M8341

Screw

M12 X 45

4шт.

32

19M8444

Screw

M12 X 60

4шт.

33

AT264324

O-Ring

SUB FOR TH100044

2шт.

35

TH100074

Lubrication Fitting

1шт.

38

3050114

Clamp

SUB FOR AT154676

1шт.

39

8063900

Clamp

SUB FOR AT217890

1шт.

43

19M7550

Cap Screw

M10 X 35

2шт.

44

4363058

Clamp

SUB FOR AT181242

1шт.

45

19M8348

Cap Screw

M12 X 65

1шт.

12H301

Lock Washer

1/2"

1шт.

90

AT196466

Seal Kit

ALSO INCLUDES AT154735 AT154779 AT181238 TH100044 TH110019 AND AT 154700 SUB FOR AT154867 OR 917828 3

1шт.
