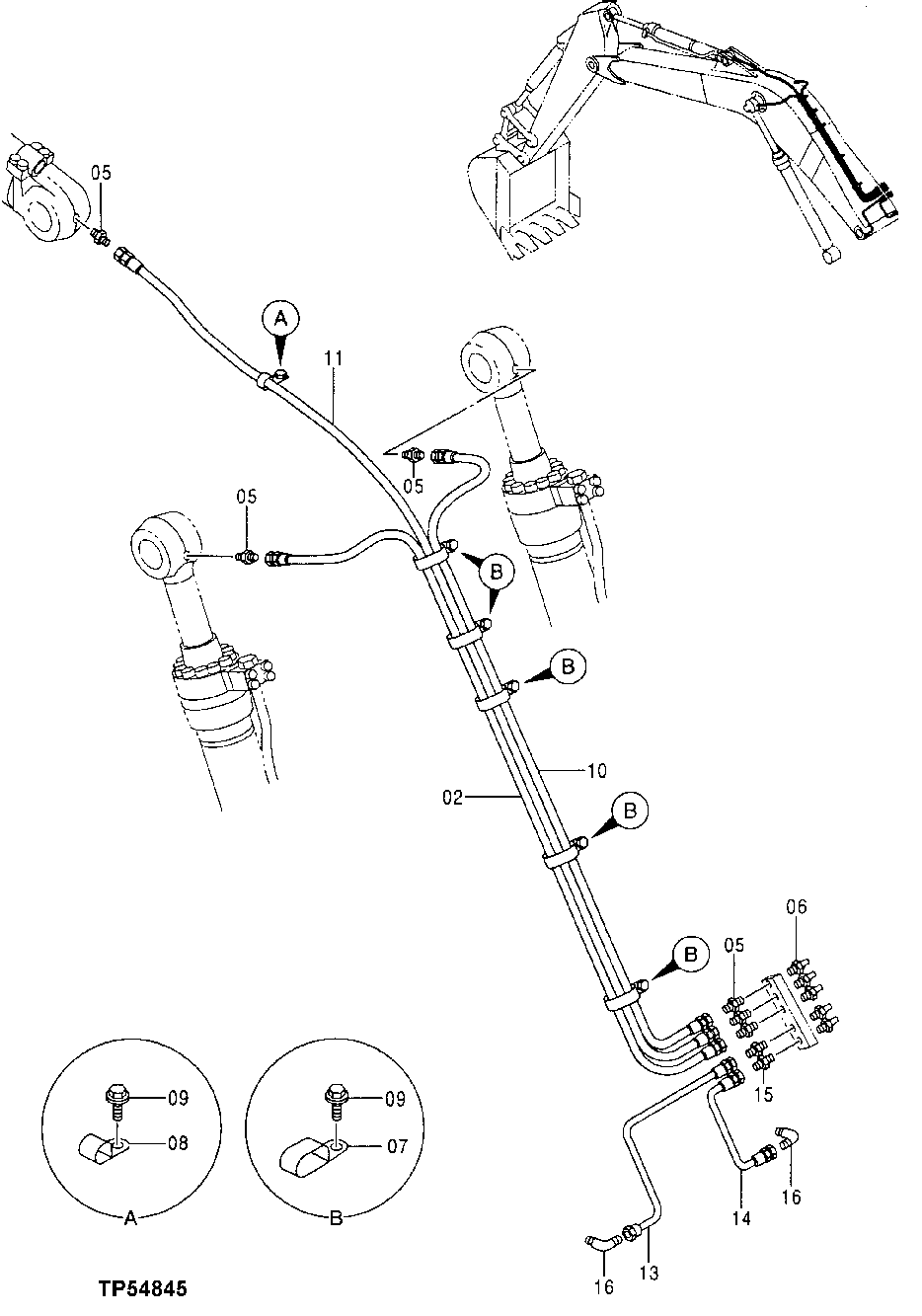

Запчасти John Deere 30LC 319 - Lubrication System 3360 Hydraulic System

2

AT64661

Hydraulic Hose

11.1252" X 2920 mm (115") X 11.1252"

1шт.

5

X4-4FTX-S

Adapter Fitting

(SUB FOR X0103-4-4 ) (SUB FOR TH100963)

6шт.

6

JD7769

Lubrication Fitting

5шт.

7

T152608

Clamp

(SUB FOR AT154207)

5шт.

8

4190261

Clip

(SUB FOR TH109649)

1шт.

9

19M8324

Cap Screw

M10 X 16

6шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

6шт.

10

AT64661

Hydraulic Hose

11.1252" X 2920 mm (115") X 11.1252"

1шт.

11

AT154755

Hydraulic Hose

11.1252" X 3530 mm (139") X 11.1252"

1шт.

13

4372966

Oil Tube

(SUB FOR AT217819)

1шт.

14

4372967

Oil Tube

(SUB FOR AT217820)

1шт.

15

4360981

Adapter Fitting

(SUB FOR AT176256)

2шт.

16

4345297

Elbow Fitting

(SUB FOR AT176258)

2шт.
