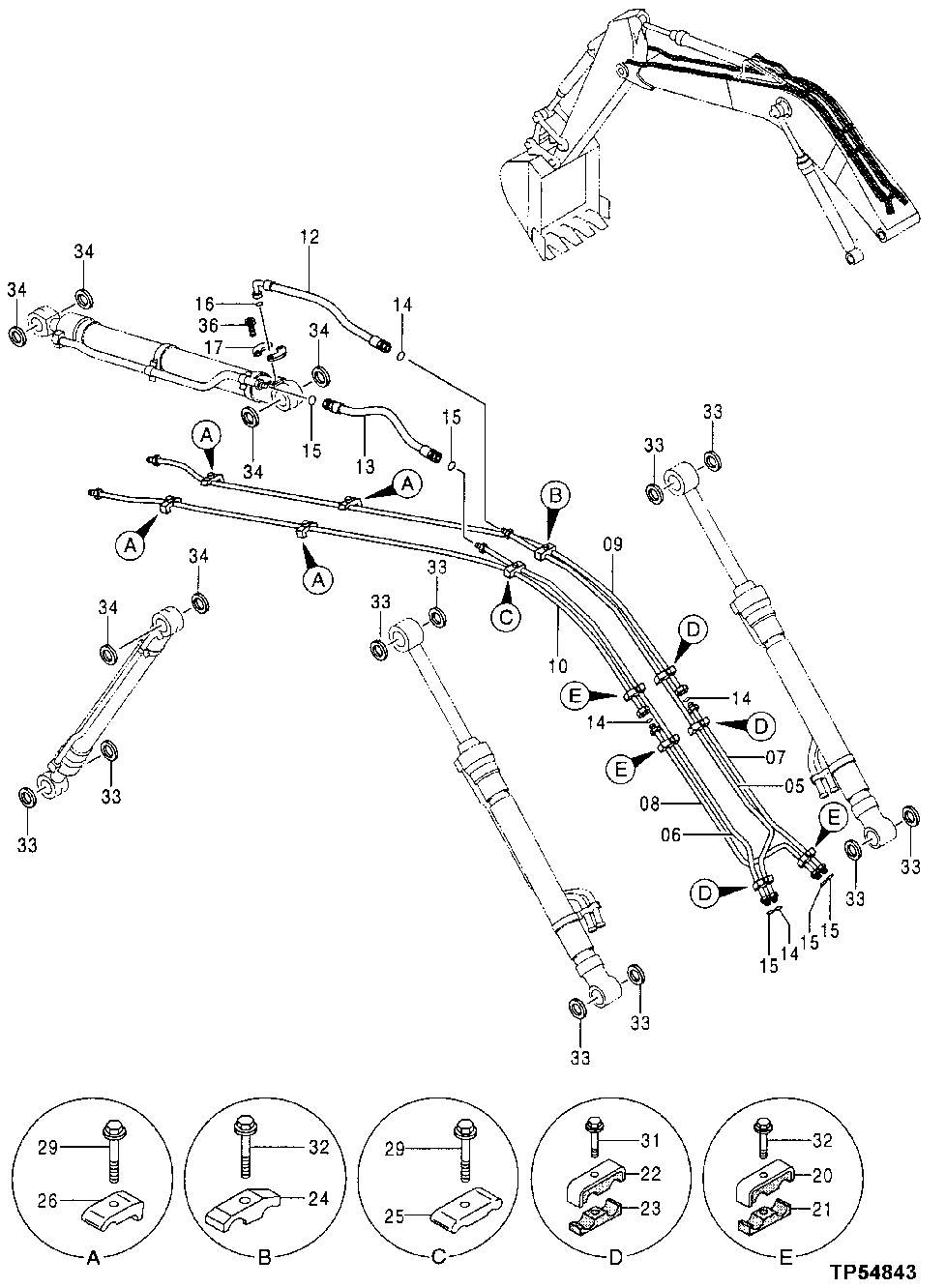

Запчасти John Deere 30LC 313 - Hydraulic Lines On Boom To Cylinders 3360 Hydraulic System

5

8063070

Oil Tube

(SUB FOR AT217879)

1шт.

6

8063068

Oil Tube

(SUB FOR AT217878)

1шт.

7

9744879G

Oil Line

(SUB FOR AT217908 OR 9744879)

1шт.

8

9744880

Oil Tube

(SUB FOR AT217909)

1шт.

9

8063077G

Oil Line

(SUB FOR AT217880 OR 8063077)

1шт.

10

8063078G

Oil Line

(SUB FOR AT217881 OR 8063078)

1шт.

12

AT131302

Hydraulic Hose

1" X 920 mm (36-1/4") X 36.5252"

1шт.

13

AT131303

Hydraulic Hose

30.1752" X 900 mm (35-1/2") X 30.1752"

1шт.

14

T76938

O-Ring

23.520 X 1.780 mm (0.926" X 0.070")

4шт.

15

T77858

O-Ring

18.771 X 1.778 mm (0.739" X 0.070")

5шт.

16

T78313

O-Ring

32.920 X 3.530 mm (1.296" X 0.139")

1шт.

17

4085560

Flange Fitting

(SUB FOR TH101960)

2шт.

20

4285723

Clamp

Rubber

3шт.

4189859

Clamp

Steel

3шт.

21

AT318021

Clamp

(SUB FOR 4285722, AT155739)

3шт.

22

4285725

Clamp

(SUB FOR AT155351)

3шт.

23

AT309596

Clamp

(SUB FOR AT155350, 4285724)

3шт.

24

4153488

Clamp

(SUB FOR TH103780)

1шт.

25

4285723

Clamp

Rubber

1шт.

4189859

Clamp

Steel

1шт.

26

4190126

Clamp

(SUB FOR TH109830)

4шт.

29

19M7363

Cap Screw

M12 X 60

5шт.

12H301

Lock Washer

1/2"

5шт.

31

12H301

Lock Washer

1/2"

3шт.

19M8088

Cap Screw

M12 X 75

3шт.

32

12H301

Lock Washer

1/2"

4шт.

19M7753

Cap Screw

M12 X 70

4шт.

33

TH102445

Seal

10шт.

34

TH102446

Seal

6шт.

36

19M9163

Screw

M12 X 40 (SUB FOR J781240)

4шт.
