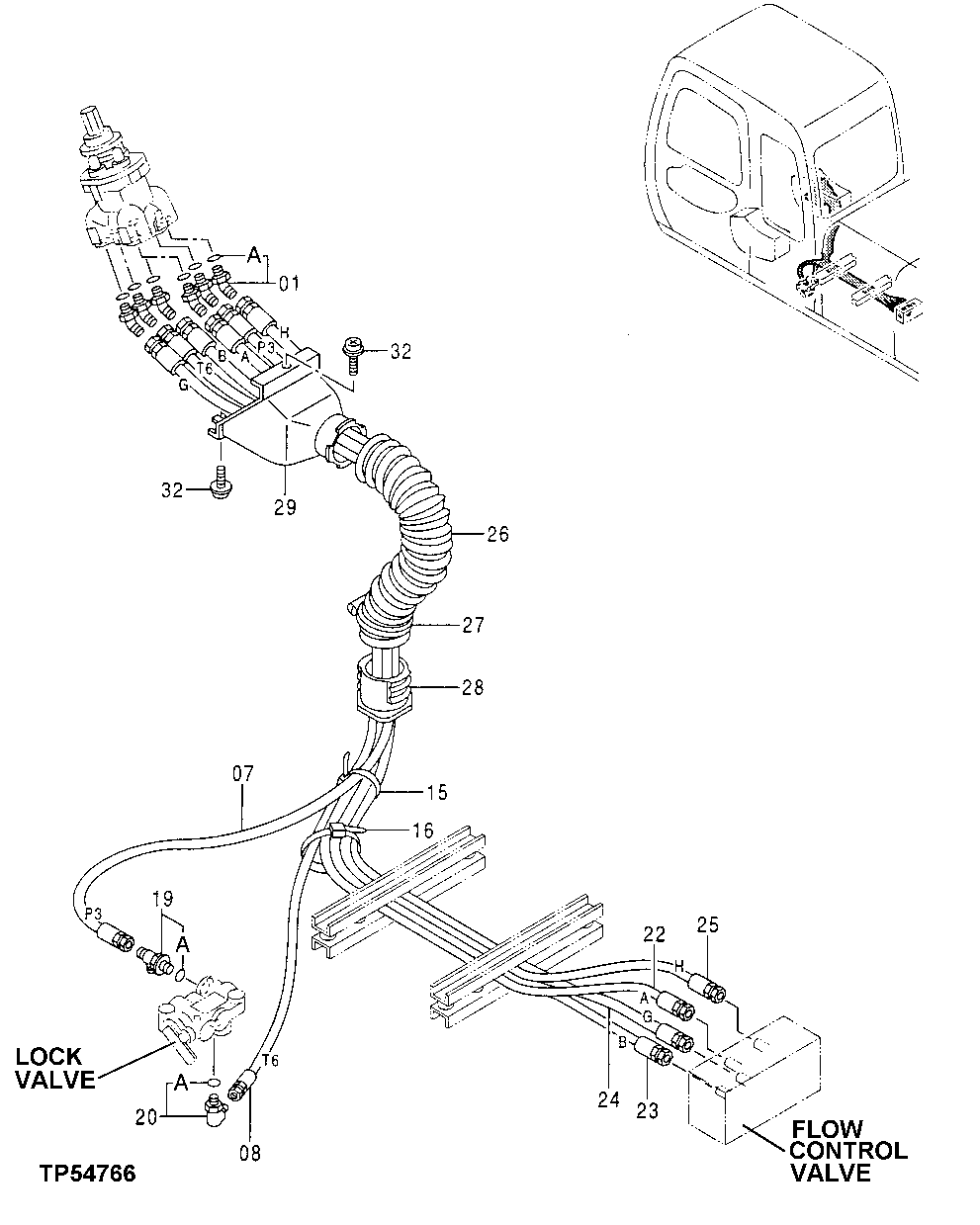

Запчасти John Deere 30LC 310 - Pilot Lines (Pilot Signal Manifold To Right Pilot Controller) 3360 Hydraulic System

1

A852223

Elbow Fitting

(SUB FOR AT154994 OR 4286916)

6шт.

1A

M800650

Packing

1шт.

7

AT215542

Hydraulic Hose

1шт.

8

AT217773

Hydraulic Hose

(SUB FOR AT215543)

1шт.

15

H77698

Tie Band

1шт.

16

H77698

Tie Band

1шт.

19

4261938

Fitting

(SUB FOR AT154285)

1шт.

19A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

20

A852333

Elbow Fitting

(SUB FOR TH101047 ) (SUB FOR 4154671)

1шт.

20A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

22

AT215544

Hydraulic Hose

1шт.

23

AT215545

Hydraulic Hose

1шт.

24

AT215524

Hydraulic Hose

1шт.

25

AT215525

Hydraulic Hose

1шт.

26

4351175

Hose

(SUB FOR AT215546 ) (SUB FOR AT213957)

1шт.

27

4351774

Clamp

(SUB FOR AT213962)

1шт.

28

3079728

Bushing

(SUB FOR AT213780 ) (SUB FOR AT250589)

1шт.

29

3072745

Cover

(SUB FOR AT213784)

1шт.

32

Screw With Washer

( J460620 NO LONGER AVAI LABLE) (SUB FOR AT200012)

2шт.

21M7267

Screw

M6 X 20

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

12M7006

Lock Washer

6 mm

2шт.
