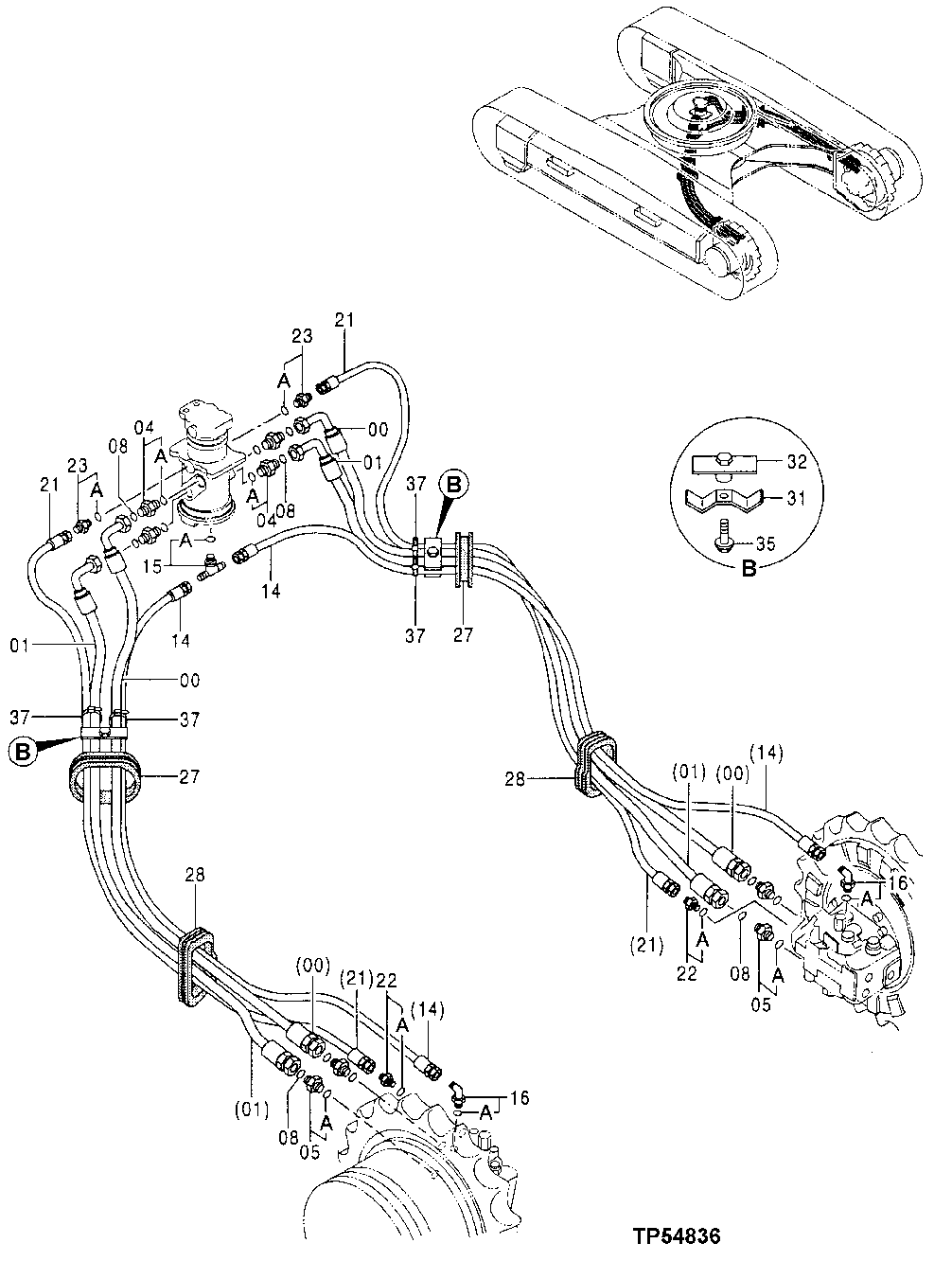

Запчасти John Deere 30LC 23 - Travel Hydraulic Lines 0260 Axles, Differentials & Suspension Systems

0

AT155275

Hydraulic Hose

30.1752" X 2300 mm (90- 1/2") X 30.1752" Reverse

2шт.

1

AT155276

Hydraulic Hose

30.1752" X 2300 mm (90- 1/2") X 30.1752" Forward

2шт.

4

A853166

Adapter Fitting

(SUB FOR AT107392 OR 4189619)

4шт.

4A

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

5

AT318016

Adapter Fitting

(SUB FOR 4189537, TH110496)

4шт.

5A

TH101926

O-Ring

28.700 X 3.500 mm (1.130" X 0.138")

1шт.

8

T77858

O-Ring

18.771 X 1.778 mm (0.739" X 0.070")

8шт.

14

AT155295

Hydraulic Hose

3/4" X 2400 mm (94-1/2") X 3/4" Drain

2шт.

15

4221224

Tee Fitting

(SUB FOR AT318018 AND AT154156)

1шт.

15A

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

1шт.

16

4154672

Elbow Fitting

(SUB FOR TH101008)

2шт.

16A

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

1шт.

21

AT155300

Hose

11.1252" X 2500 mm (98 -1/2") X 11.1252" Pilot

2шт.

22

4200465

Adapter Fitting

(SUB FOR TH108328)

2шт.

22A

M800650

Packing

1шт.

23

4200465

Adapter Fitting

(SUB FOR TH108328)

2шт.

23A

M800650

Packing

1шт.

27

4191978

Grommet

(SUB FOR TH109400)

2шт.

28

4345761

Grommet

(SUB FOR AT214429)

2шт.

31

4202103

Clamp

(SUB FOR TH108302)

2шт.

32

9727822

Clamp

(SUB FOR TH109556)

2шт.

35

19M7361

Cap Screw

M12 X 50

2шт.

12H301

Lock Washer

1/2"

2шт.

37

H77698

Tie Band

4шт.
