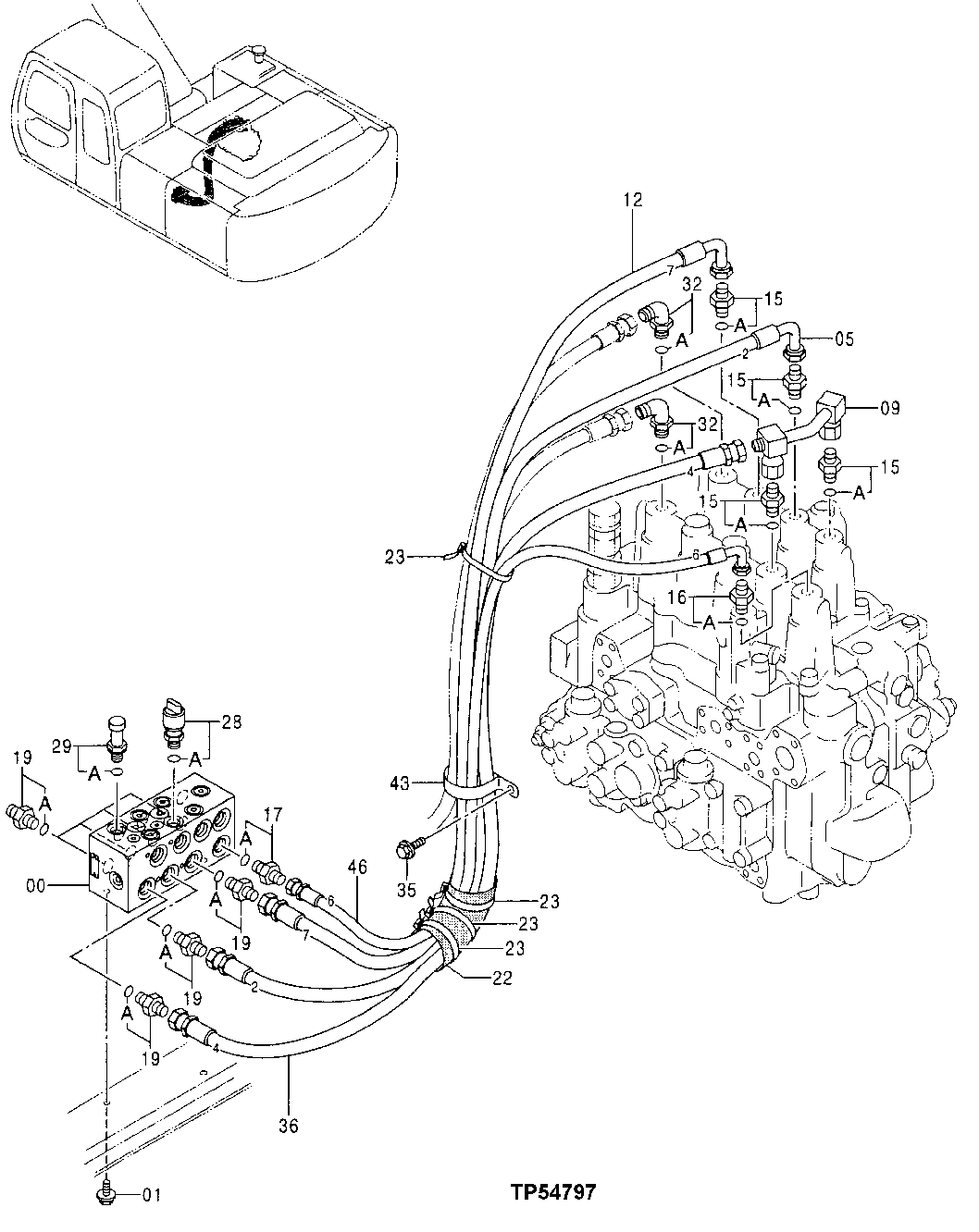

Запчасти John Deere 30LC 304 - Pilot Lines (Control Valve Top To Pilot Signal Manifold) 3360 Hydraulic System

0

4367132

Hyd Actuated Control Valve

(SUB FOR AT214034)(FLOW CONTROL)

1шт.

1

19M7402

Cap Screw

M10 X 25

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

5

AT217772

Hydraulic Hose

1шт.

9

8060455

Oil Line

(SUB FOR AT214353)

1шт.

12

AT217774

Hydraulic Hose

1шт.

15

4202422

Adapter Fitting

(SUB FOR TH108440)

4шт.

15A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

16

4255791

Adapter Fitting

(SUB FOR AT213810)

1шт.

16A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

17

4200468

Adapter Fitting

(SUB FOR AT126336)

1шт.

17A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

19

4200466

Adapter Fitting

(SUB FOR TH108320)

7шт.

19A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

22

4219918

Isolator

(SUB FOR TH111416)

1шт.

23

H77698

Tie Band

4шт.

28

4333040

Switch

(SUB FOR AP33668 ) (SUB FOR AT213846)(BOOM UP PRESSURE)

1шт.

28A

M800650

Packing

1шт.

29

4332040

Sensor

(SUB FOR AT213840)(ARM IN PRESSURE)

1шт.

29A

M800650

Packing

1шт.

32

4208913

Adapter Fitting

(SUB FOR AT126458)

2шт.

32A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

35

12M7066

Lock Washer

10 mm

1шт.

19M7938

Cap Screw

M10 X 20

1шт.

36

AT213956

Hydraulic Hose

1шт.

43

XCL-29

Hose Clamp

(SUB FOR TH110522 OR 4193848)

1шт.

46

AT217801

Hydraulic Hose

1шт.
