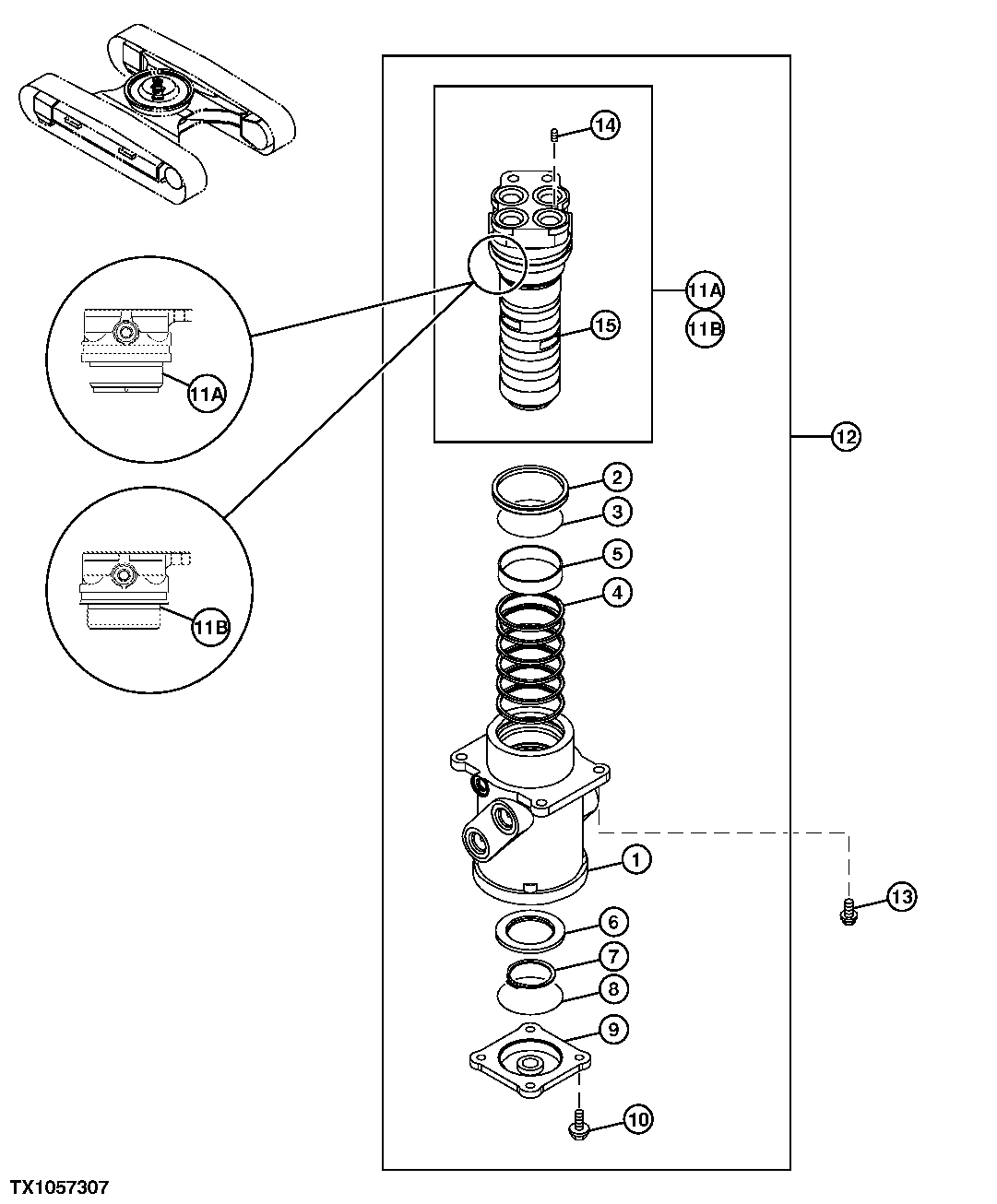

Запчасти John Deere 30LC 21 - Rotary Manifold 0260 Axles, Differentials & Suspension Systems

1

Housing

(USE W/ (1) 9181005) ( 0003542 NLA)

1шт.

0001190

Housing

(USE W/ 9145787)

1шт.

2

4390776

Seal

(USE W/ 9181005)

1шт.

AT154321

Seal

(USE W/ 9145787) (SUB FOR 4272803)

1шт.

3

AT264418

O-Ring

(SUB FOR 4367664)

1шт.

4

AT154162

Seal

(SUB FOR 4231543)

6шт.

5

4241780

Bushing

1шт.

6

3070250

Ring

1шт.

7

40M7048

Snap Ring

(SUB FOR 991347)

1шт.

8

CH16109

Packing

(SUB FOR A810100)

1шт.

9

2034607

Cover

1шт.

10

19M7662

Cap Screw

M10 X 30 (SUB FOR J011030)

4шт.

11A

Spindle

(USE W/ 4390776 AND 0003542) ( 9181005 NLA)

1шт.

11B

9145787

Spindle

(USE W/ AT154321 AND 0001190)

1шт.

12

9107265

Manifold

For Non NA Applications SUB FOR (1) 9101521

1шт.

9107265EX

Manifold Reman

For NA Applications REMAN F OR 9107265REMAN FOR 9107265

1шт.

13

19M7403

Cap Screw

M12 X 35 (SUB FOR J011235)

4шт.

12H301

Lock Washer

1/2"

4шт.

14

4239611

Plug

1шт.

15

Spindle

( 0001193 NLA)

1шт.
