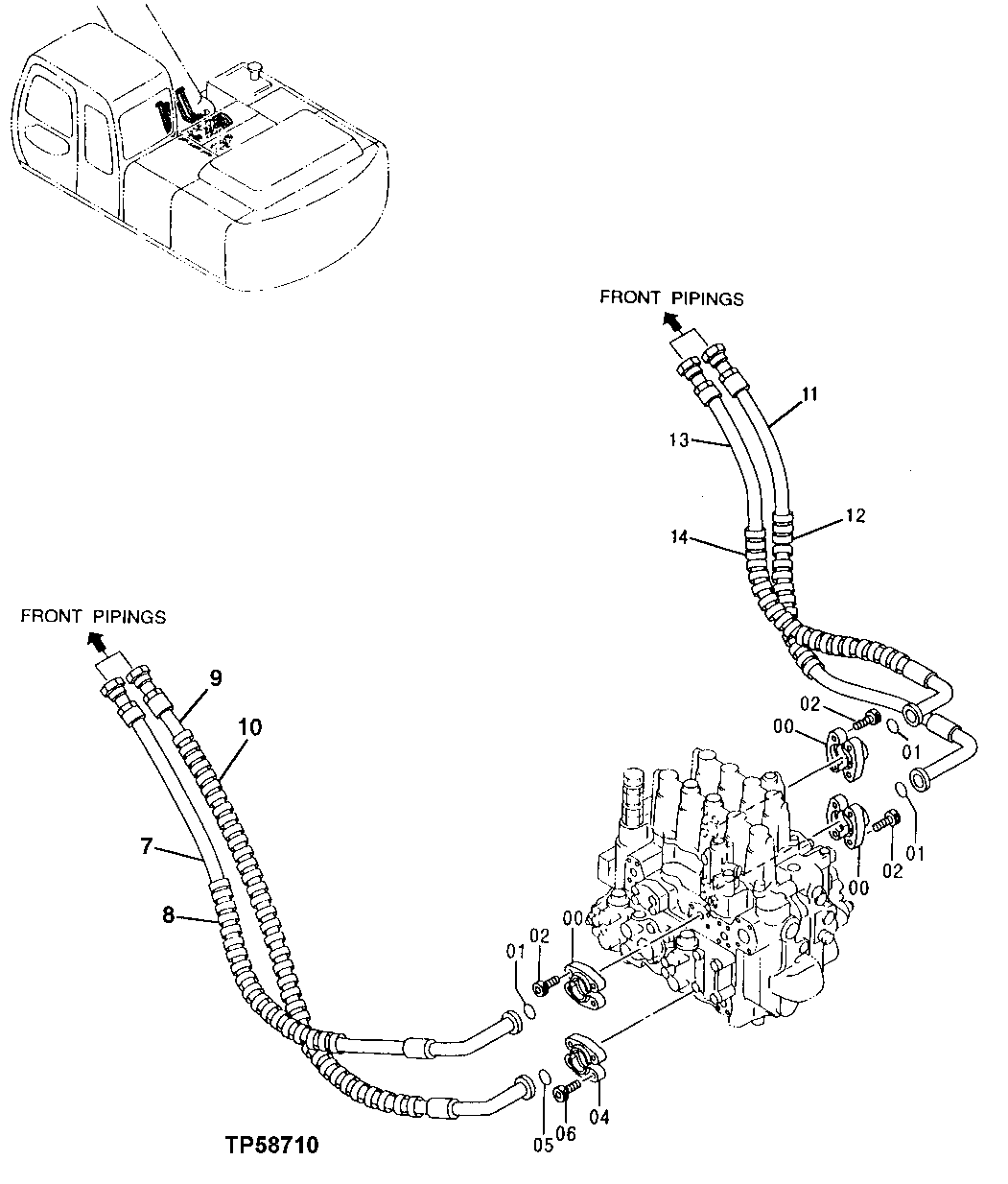

Запчасти John Deere 30LC 286 - Front Lines (Arm and Bucket Cylinder) 3360 Hydraulic System

0

R29424

Flange Fitting

6шт.

1

T59014

O-Ring

24.994 X 3.531 mm (63/64" X 0.139")

3шт.

2

19M7576

Screw

M10 X 30 (SUB FOR J781030)

12шт.

4

H61354

Flange Fitting

2шт.

5

T78313

O-Ring

32.920 X 3.530 mm (1.296" X 0.139")

1шт.

6

19M7576

Screw

M10 X 30 (SUB FOR J781030)

4шт.

7

4324162

Hydraulic Hose

(SUB FOR AT213830)

1шт.

8

Hose Guard

(MAKE FROM XHG-075, BULK MATERIAL, CUT TO LENGTH) (SUB FOR AT213832 ( 4327294 NLA))

3шт.

9

AT217763

Hydraulic Hose

1шт.

10

Hose Guard

(MAKE FROM XHG-075, BULK MATERIAL, CUT TO LENGTH) (SUB FOR AT213832 ( 4327294 NLA))

5шт.

11

4297045

Hydraulic Hose

(SUB FOR AT217747)

1шт.

12

Hose Guard

(MAKE FROM XHG-075, BULK MATERIAL, CUT TO LENGTH) (SUB FOR AT213832 ( 4327294 NLA))

3шт.

13

4324159

Hydraulic Hose

(SUB FOR AT217748)

1шт.

14

Hose Guard

(MAKE FROM XHG-075, BULK MATERIAL, CUT TO LENGTH) (SUB FOR AT213832 ( 4327294 NLA))

3шт.
