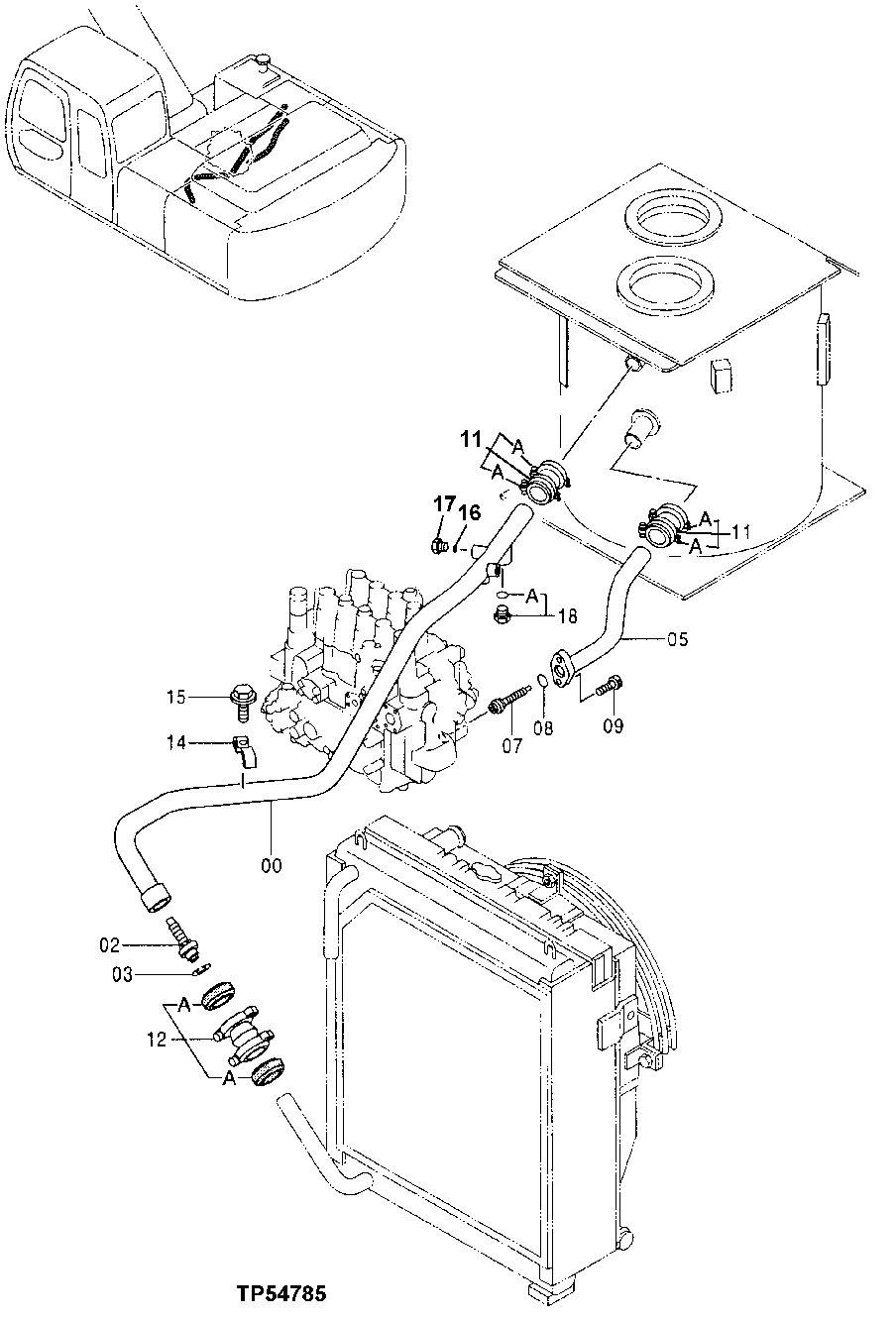

Запчасти John Deere 30LC 282 - Return Lines, Oil Cooler To Hydraulic Reservoir 3360 Hydraulic System

0

7030316

Oil Tube

SUB FOR AT217854

1шт.

2

4276584

Flow Control Hyd. Valve

SUB FOR AT154331

1шт.

3

40M7225

Snap Ring

1шт.

5

8063036

Oil Tube

SUB FOR AT217875

1шт.

7

4272164

Flow Control Hyd. Valve

SUB FOR AT155303

1шт.

8

A811040

O-Ring

39.400 X 3.100 mm (1.551" X 0.122") SUB FOR TH102992

1шт.

9

L159272

Screw

SUB FOR AT213615 OR J781040

2шт.

11

4069801

Coupling

SUB FOR TH101915 AND 4712341

2шт.

11A

4196259

Seal

SUB FOR TH106966

2шт.

12

4067834

Coupling

SUB FOR TH102945

1шт.

12A

4196260

Seal

NLA, ORDER 4067834

2шт.

14

4053698

Clamp

SUB FOR TH101936

1шт.

15

12H301

Lock Washer

1/2"

1шт.

19M7753

Cap Screw

M12 X 70

1шт.

16

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

17

15M7036

Drain Plug

SUB FOR TH109285 OR 0309805

1шт.

18

A885008

Pipe Plug

SUB FOR 4113926 AND AT126200

1шт.

18A

TH101926

O-Ring

28.700 X 3.500 mm (1.130" X 0.138")

1шт.
