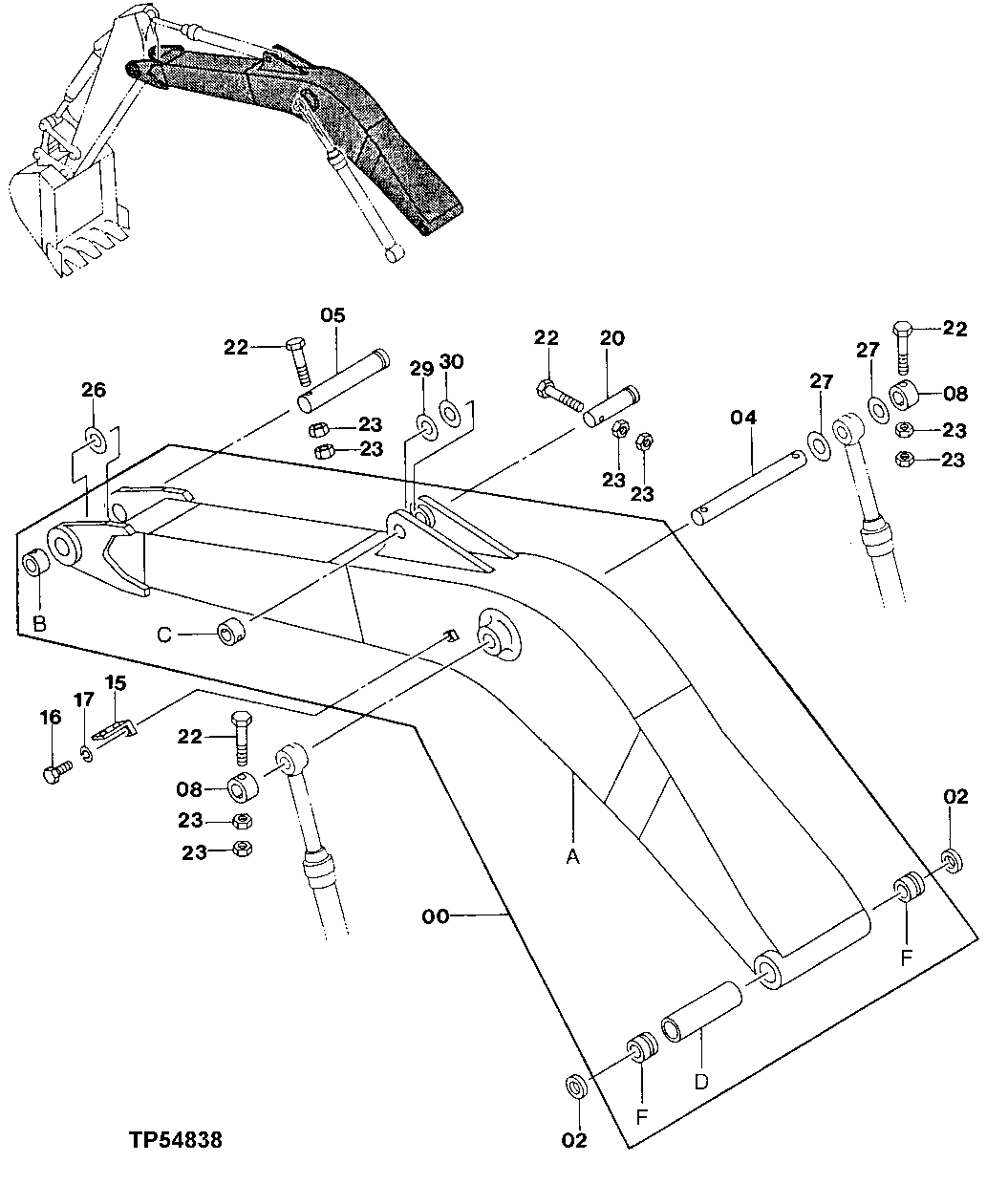

Запчасти John Deere 30LC 280 - Boom ( - 600272) 3344 Boom

0

Excavator Boom

(SUB AT217852)(CONVENIENCE ASSEMBL Y) ( AT218215 NO LONGER AVAILABLE)

1шт.

0A

Excavator Boom

1шт.

0B

TH102409

Bushing

92.075 X 120.650 X 50.800 mm (3-5/8" X 4-3/4" X 2")

1шт.

0C

4067719

Pivot

(SUB FOR TH102410)

1шт.

0D

4253959

Spacer

(SUB FOR AT154738)

1шт.

0F

3051159

Bushing

100 X 115 X 90 mm (3-15/16" X 4. 528" X 3.543") (SUB FOR AT154682)

2шт.

2

TH102411

Seal

2шт.

4

TH109795

Dowel Pin

90 X 864 mm (3.543" X 34-1/64")

1шт.

5

TH109796

Dowel Pin

90 X 575 mm (3.543" X 22.638")

1шт.

8

TH102409

Bushing

92.075 X 120.650 X 50.800 mm (3-5/8" X 4-3/4" X 2")

2шт.

15

4224631

Angle

(SUB FOR TH111685)

1шт.

16

J901425

Cap Screw

(SUB FOR TH104071)

1шт.

17

12H317

Lock Washer

9/16"

1шт.

20

AT217742

Pin

1шт.

22

19M8503

Cap Screw

M20 X 160 (SUB FOR P61796)

4шт.

23

14M7277

Nut

M20

8шт.

26

4361177

Washer

(SUB FOR TH106309 ) (SUB FOR AT214005)

1шт.

27

4284060

Washer

91 X 120 X 1 mm (3.583" X 4.72 4" X 0.039") (SUB FOR AT154797)

2шт.

29

TH104296

Washer

84 X 145 X 1 mm (3.307" X 5.709" X 0.039")

1шт.

30

TH104297

Washer

84 X 145 X 2.250 mm (3. 307" X 5.709" X 0.089")

1шт.
