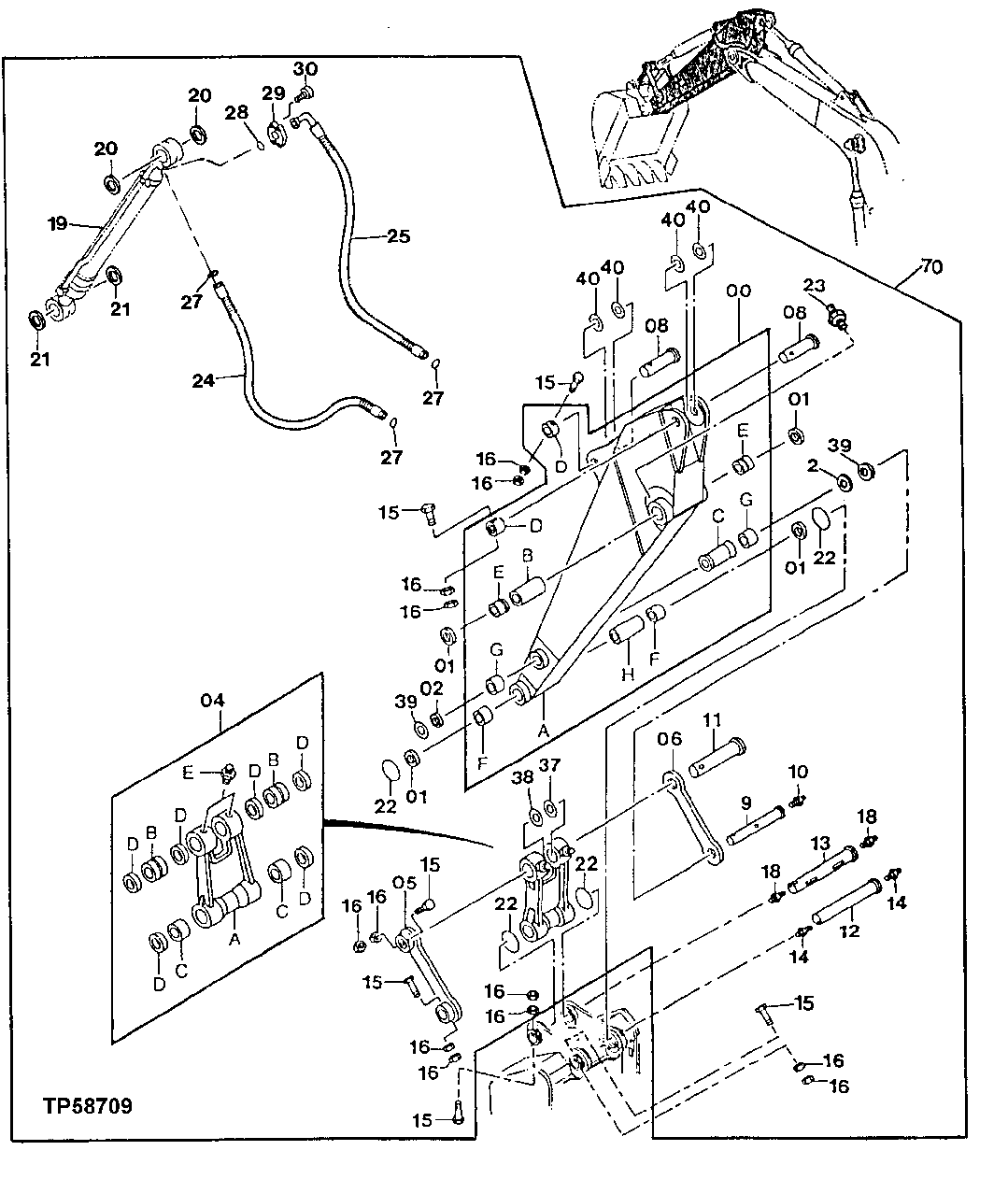

Запчасти John Deere 30LC 274 - SHORT ARM 2.32 M (7 FT 7 IN) ( - 600272) 3340 Backhoe & Excavator Frames

0

Arm

(SUB AT217868)(CONVENIENCE ASSEMBL Y) ( AT155722 NO LONGER AVAILABLE)

1шт.

0A

Arm

1шт.

0B

4144320

Spacer

95.200 X 101.600 X 185 mm (3.748" X 4" X 7.283") (SUB FOR TH102428)

1шт.

0C

4144380

Spacer

(SUB FOR TH102432)

1шт.

0D

4067719

Pivot

(SUB FOR TH102410)

2шт.

0E

3054062

Bushing

90 X 105 X 85 mm (3.543" X 4.13 4" X 3.346") (SUB FOR AT154689)

2шт.

0F

TH109802

Bushing

90 X 105 X 70 mm (3.543" X 4.134" X 2.756")

2шт.

0G

TH109803

Bushing

80 X 95 X 55 mm (3.150" X 3.740" X 2.165")

2шт.

0H

4144379

Spacer

95.200 X 101.600 X 255 mm (3.748" X 4" X 10.039") (SUB FOR TH102430)

1шт.

1

TH102445

Seal

4шт.

2

TH102446

Seal

2шт.

4

Link

(SUB AT217891)( AT1548 35 NO LONGER AVAILABLE)

1шт.

4A

Link

1шт.

4B

TH109806

Bushing

2шт.

4C

TH109807

Bushing

90 X 105 X 100 mm (3.54 3" X 4.134" X 3-15/16")

2шт.

4D

TH102445

Seal

6шт.

4E

TH100074

Lubrication Fitting

2шт.

5

8050930

Link

(SUB FOR AT154838)

1шт.

6

3056355J

Link

(SUB FOR AT154693 OR 3056355)

1шт.

8

AT217742

Pin

2шт.

9

TH109810

Pin

1шт.

10

TH100074

Lubrication Fitting

1шт.

11

T138885

Pin

1шт.

T138902

Bushing

1шт.

19M8029

Cap Screw

M16 X 30

1шт.

12

TH110235

Pin Fastener

1шт.

13

TH110236

Pin Fastener

1шт.

14

TH100074

Lubrication Fitting

2шт.

15

19M8503

Cap Screw

M20 X 160 (SUB FOR P61796)

6шт.

16

14M7277

Nut

M20

12шт.

18

TH100074

Lubrication Fitting

2шт.

19

Cylinder

(BUCKET CYLINDER) (SEE S EPARATE PAGE FOR DETAIL)

1шт.

20

TH102446

Seal

2шт.

21

TH102445

Seal

2шт.

22

4089028

O-Ring

(STANDARD O-RING)

4шт.

AT349466

Seal

(SPLIT O-RING)

4шт.

T397473

V-Ring Seal

V O-Ring

4шт.

23

TH100074

Lubrication Fitting

2шт.

24

AT155742

Hydraulic Hose

30.1752" X 1550 mm (61") X 30.1752"

1шт.

25

AT155740

Hydraulic Hose

1" X 1600 mm (63") X 30.1752"

1шт.

27

T77858

O-Ring

18.771 X 1.778 mm (0.739" X 0.070")

3шт.

28

T78313

O-Ring

32.920 X 3.530 mm (1.296" X 0.139")

1шт.

29

4085560

Flange Fitting

(SUB FOR TH101960)

2шт.

30

19M9163

Screw

M12 X 40 (SUB FOR J781240)

4шт.

37

4372971

Washer

(SUB FOR TH106309 ) (SUB FOR AT217822)

2шт.

38

4189837

Washer

91 X 145 X 2.300 mm (3.583" X 5. 709" X 0.091") (SUB FOR TH106310)

2шт.

39

TH104296

Washer

84 X 145 X 1 mm (3.307" X 5.709" X 0.039")

2шт.

40

TH104297

Washer

84 X 145 X 2.250 mm (3. 307" X 5.709" X 0.089")

4шт.

70

Arm

2.32M ( AT181452 NO LONGER AVAIL ABLE) (INCLUDES STANDARD ARM, BU CKET CYLINDER, HOSES, AND LINKAGE )

1шт.
