Запчасти John Deere 30LC 271 - Single Pedal Propel Kit 3315 Controls Linkage

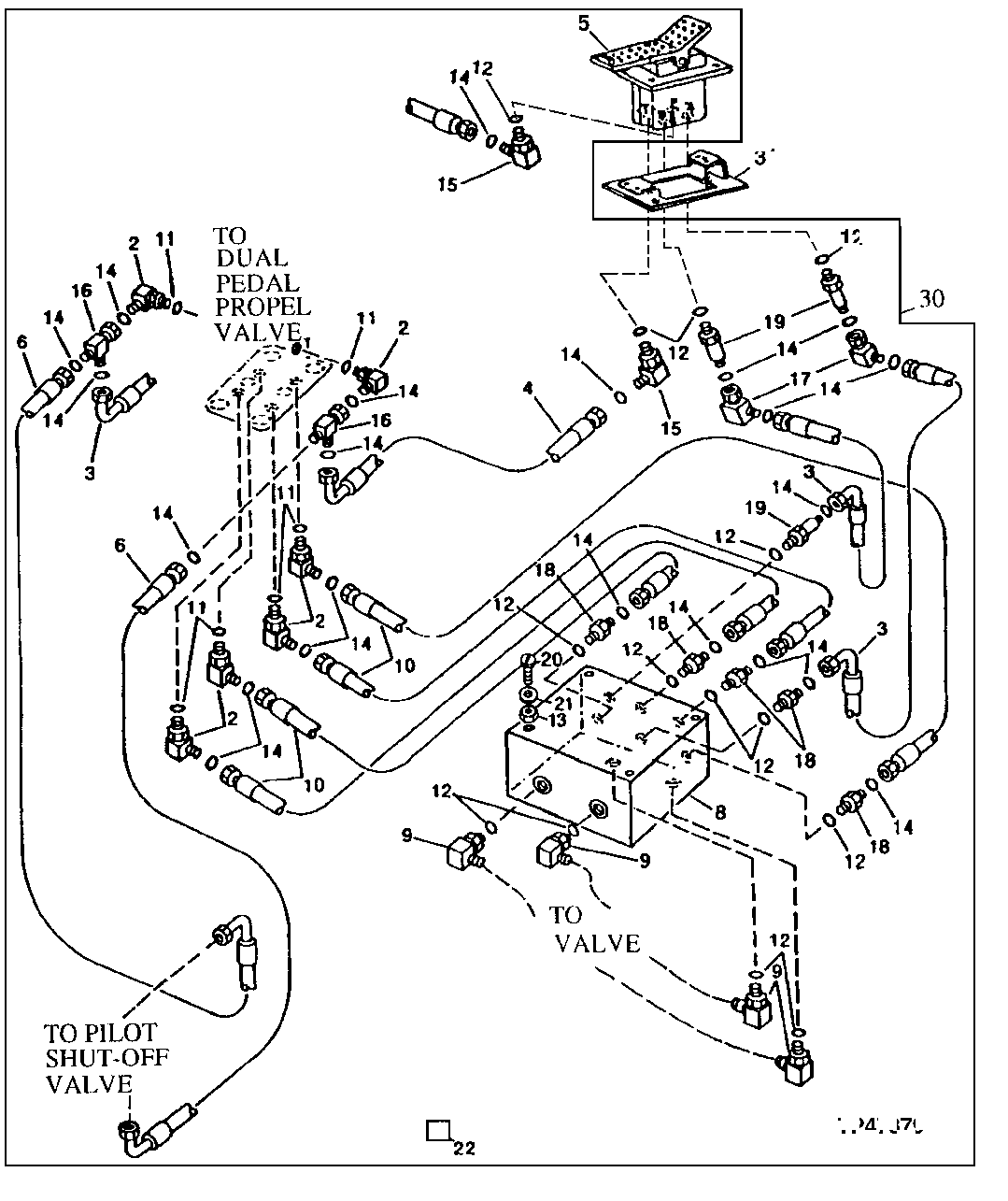

Схема запчастей John Deere 30LC - 271 - Single Pedal Propel Kit 3315 Controls Linkage

Артикул

Название

Примечание

Количество

2

AT115002

Elbow Fitting

6шт.

3

AT133590

Hydraulic Hose

17.4752" X 405 mm (16") X 17.4752"

3шт.

4

AT151034

Hydraulic Hose

17.4752" X 575 mm (22-3/4") X 17.4752"

1шт.

5

AT152120

Valve

(FOOT)

1шт.

6

AT170455

Hydraulic Hose

9/16" X 1199 mm (47-1/4") X 17.4752"

2шт.

8

AT170459

Hyd Actuated Control Valve

INCLUDES (4) AT158988

1шт.

AT158988

Hydraulic Pressure Valve

4шт.

9

AT35121

Elbow Fitting

4шт.

10

AT72067

Hydraulic Hose

17.4752" X 583 mm (23") X 17.4752"

4шт.

11

M800650

Packing

6шт.

12

R26448

O-Ring

11.887 X 1.981 mm (0.468" X 5/64")

14шт.

13

14M7273

Nut

M8

4шт.

14

T77613

O-Ring

9.250 X 1.780 mm (0.364" X 0.070")

20шт.

15

38H1004

Elbow Fitting

2шт.

16

38H1030

Tee Fitting

2шт.

17

38H1094

Elbow Fitting

2шт.

18

38H1160

Adapter Fitting

6шт.

19

38H1212

Adapter Fitting

3шт.

20

19M8456

Cap Screw

M8 X 100

4шт.

21

24M7036

Washer

9 X 16 X 1.600 mm

4шт.

22

T153674

Label

(WITHOUT AUXILIARY HYDRAULICS) (LO WER FRONT OF RIGHT SIDE CAB WINDOW)

1шт.

T153676

Label

(WITH AUXILIARY HYDRAULICS) (LOWE R FRONT OF RIGHT SIDE CAB WINDOW)

1шт.

30

Kit

WHOLEGOODS (SINGLE PEDAL CONTROL) (ALSO OR DER AT115535 SUPPORT PEDAL) ( AT170399 NLA)

1шт.

31

AT115535

Support

1шт.

Выбрано товаров: 24
