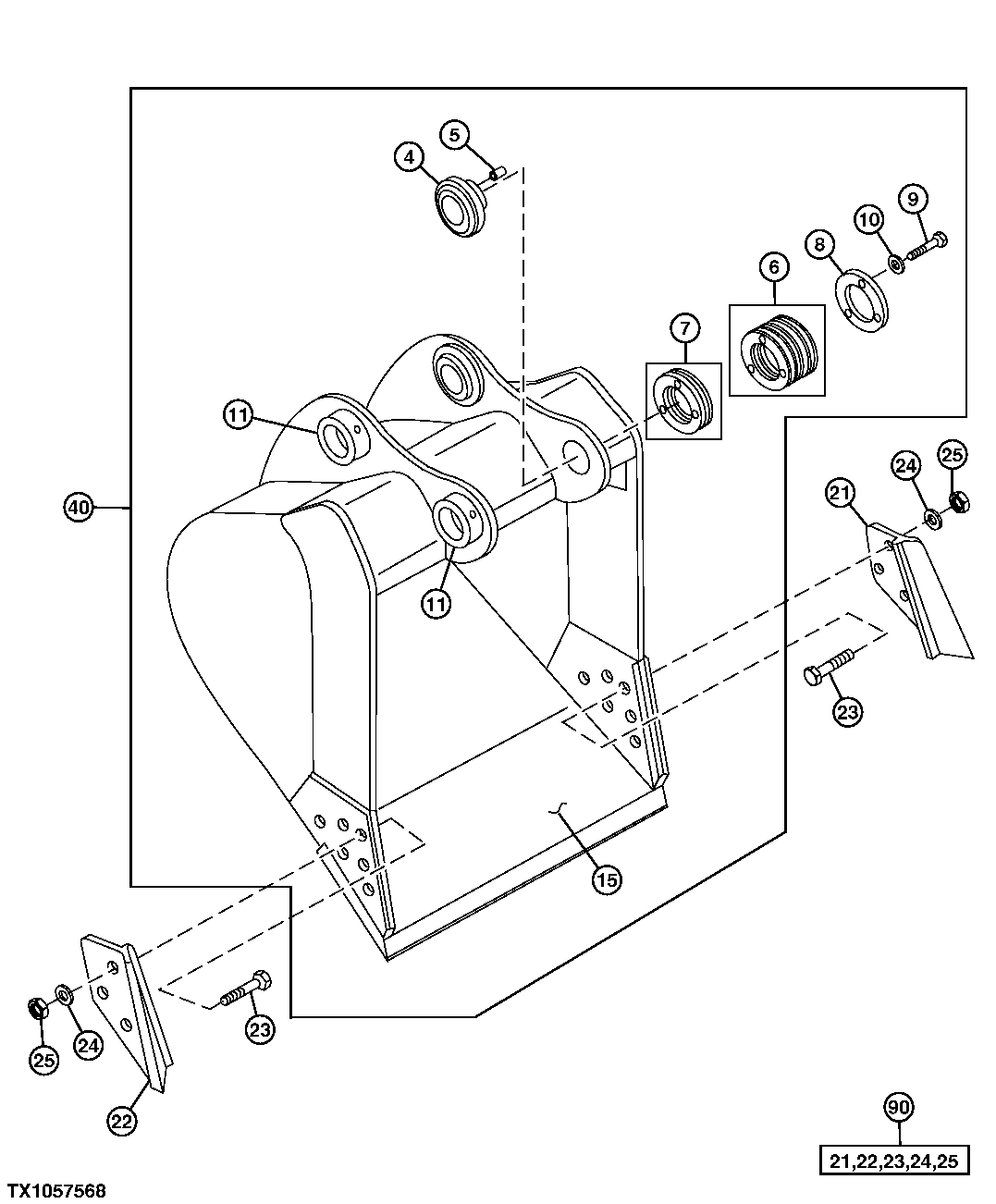

Запчасти John Deere 30LC 239 - Heavy Duty High Capacity Bucket (48 in.) (Also Order Bucket Tooth Assemblies) 3302 Bucket With Teeth

4

AT131084

Bushing

1шт.

5

R48685

Dowel Pin

1шт.

6

TH102460

Washer

6шт.

7

TH102461

Shim

2шт.

8

Plate

(SUB FOR AT185646)( TH102463 NLA)

1шт.

9

19H2706

Cap Screw

5/8" X 2"

3шт.

10

12H294

Lock Washer

5/8"

3шт.

11

TH102409

Bushing

2шт.

15

AT131097

Dura-Max Cutting Edge

(CUT TO LENGTH)

1шт.

21

Cutting Edge

(SUB AT131085)

1шт.

22

Cutting Edge

(SUB AT131085)

1шт.

23

09H1771

Bolt

7/8" X 3"

6шт.

24

12H245

Lock Washer

7/8"

6шт.

25

14H1077

Nut

7/8"

6шт.

40

Excavator Bucket

(SUB AT332713)(WHOLEGOODS) (48 INCH - 2.03 C UBIC YARD) (REQUIRES 6 TEETH) (AT185645 NLA)

1шт.

90

End Bit

( AT131085 NLA) (SIDE CUTTER KIT)

1шт.
