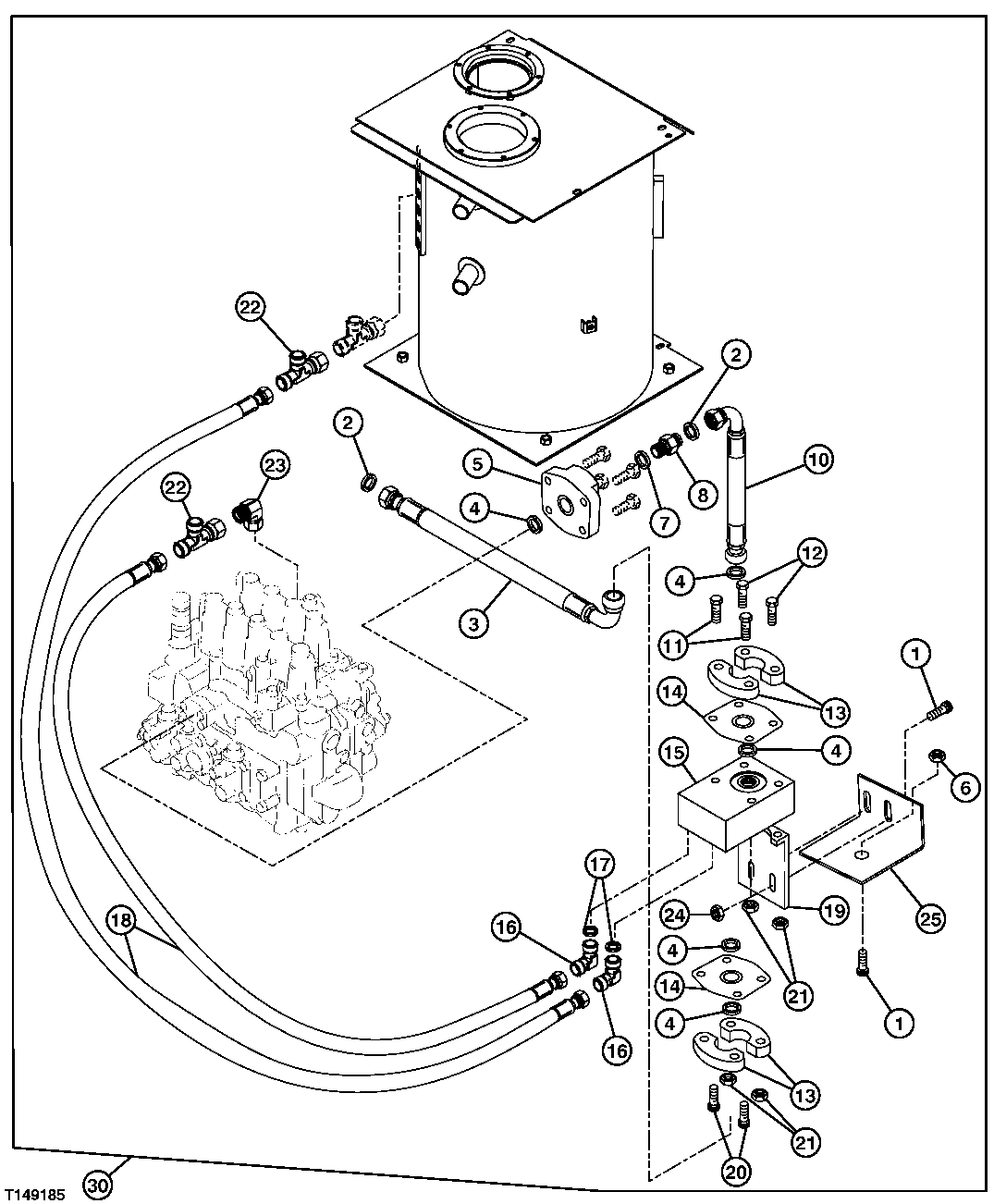

Запчасти John Deere 30LC 234 - Arm Anti-Drift Kit 2160 Vehicle Hydraulics

1

19M7403

Cap Screw

M12 X 35

3шт.

2

T76938

O-Ring

23.520 X 1.780 mm (0.926" X 0.070")

1шт.

3

AT197052

Hydraulic Hose

1шт.

4

T59014

O-Ring

24.994 X 3.531 mm (63/64" X 0.139")

4шт.

5

T183797

Adapter Fitting

1шт.

6

14M7275

Nut

M12

1шт.

7

U12547

O-Ring

23.470 X 2.946 mm (0.924" X 0.116")

1шт.

8

38H1179

Adapter Fitting

1шт.

10

AT183796

Hydraulic Hose

1шт.

11

T111207

Bolt

M12 X 140

2шт.

12

19M8519

Screw

M12 X 120

2шт.

13

T107068

Flange Fitting

4шт.

14

T145378

Fitting

2шт.

15

AT152186

Hyd Actuated Control Valve

1шт.

16

AT35121

Elbow Fitting

2шт.

17

R26448

O-Ring

2шт.

18

AT126601

Hydraulic Hose

2шт.

19

T164046

Bracket

1шт.

20

19M8395

Screw

M12 X 40

2шт.

21

14M7275

Nut

M12

6шт.

22

AT36921

Tee Fitting

2шт.

23

AE24616

Elbow Fitting

1шт.

25

T164047

Bracket

1шт.

26

12H301

Lock Washer

1/2" (NOT ILLUSTRATED)

4шт.

27

T78313

O-Ring

(NOT ILLUSTRATED)

ARшт.

30

Kit

( AT196906 NLA) (SUB FOR AT1851 98 WHOLEGOODS (ARM ANTI-DRIFT))

1шт.
