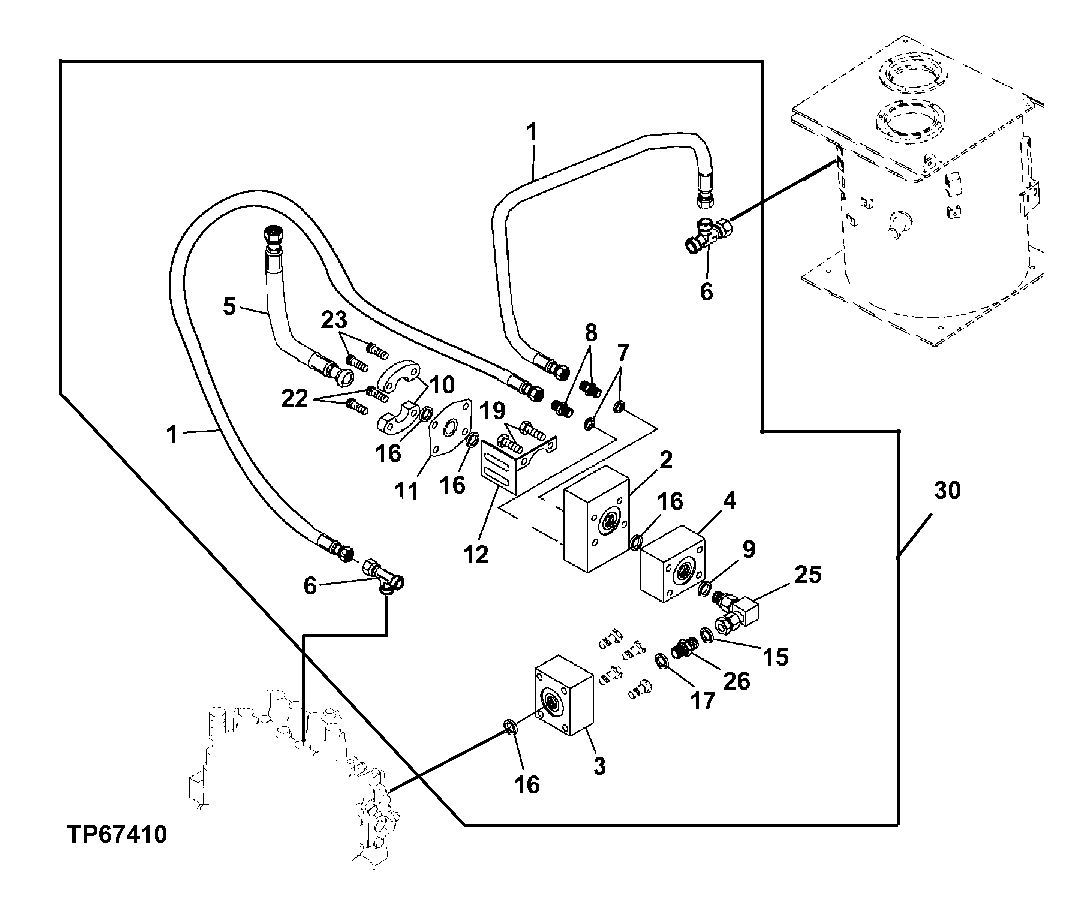

Запчасти John Deere 30LC 231 - ANTI-DRIFT KIT 2160 Vehicle Hydraulics

1

AT126601

Hydraulic Hose

2шт.

2

AT152186

Hyd Actuated Control Valve

1шт.

3

AT183797

Adapter Fitting

1шт.

4

AT183798

Junction Block

1шт.

5

AT183269

Hydraulic Hose

1шт.

6

AT36921

Tee Fitting

2шт.

7

R26448

O-Ring

11.887 X 1.981 mm (0.468" X 5/64")

2шт.

8

R27212

Fitting

2шт.

9

R29936

O-Ring

29.743 X 2.946 mm (1.171" X 0.116")

1шт.

10

T107068

Flange Fitting

2шт.

11

T145378

Fitting

1шт.

12

T164048

Bracket

1шт.

15

T76938

O-Ring

1шт.

16

T78313

O-Ring

4шт.

17

U12547

O-Ring

1шт.

19

19M7349

Cap Screw

M12 X 95

2шт.

24M7047

Washer

13 X 24 X 2.500 mm

2шт.

22

19M8395

Screw

M12 X 40 (NOT ILLUSTRATED)

2шт.

24M7047

Washer

13 X 24 X 2.500 mm

2шт.

23

19M8519

Screw

M12 X 120

2шт.

24M7047

Washer

13 X 24 X 2.500 mm

2шт.

25

38H1086

Elbow Fitting

1шт.

26

38H1179

Adapter Fitting

1шт.

30

Kit

( AT185198 NO LONGER AVAILABLE) WHOLEGOO DS (ANTI-DRIFT) (CONTAINS ALL ITEMS ON THI S PAGE - ADDITIONAL COMPONENTS LISTED ON F OLLOWING PAGE) (ALSO ORDER AT147237 HOSE)

1шт.
