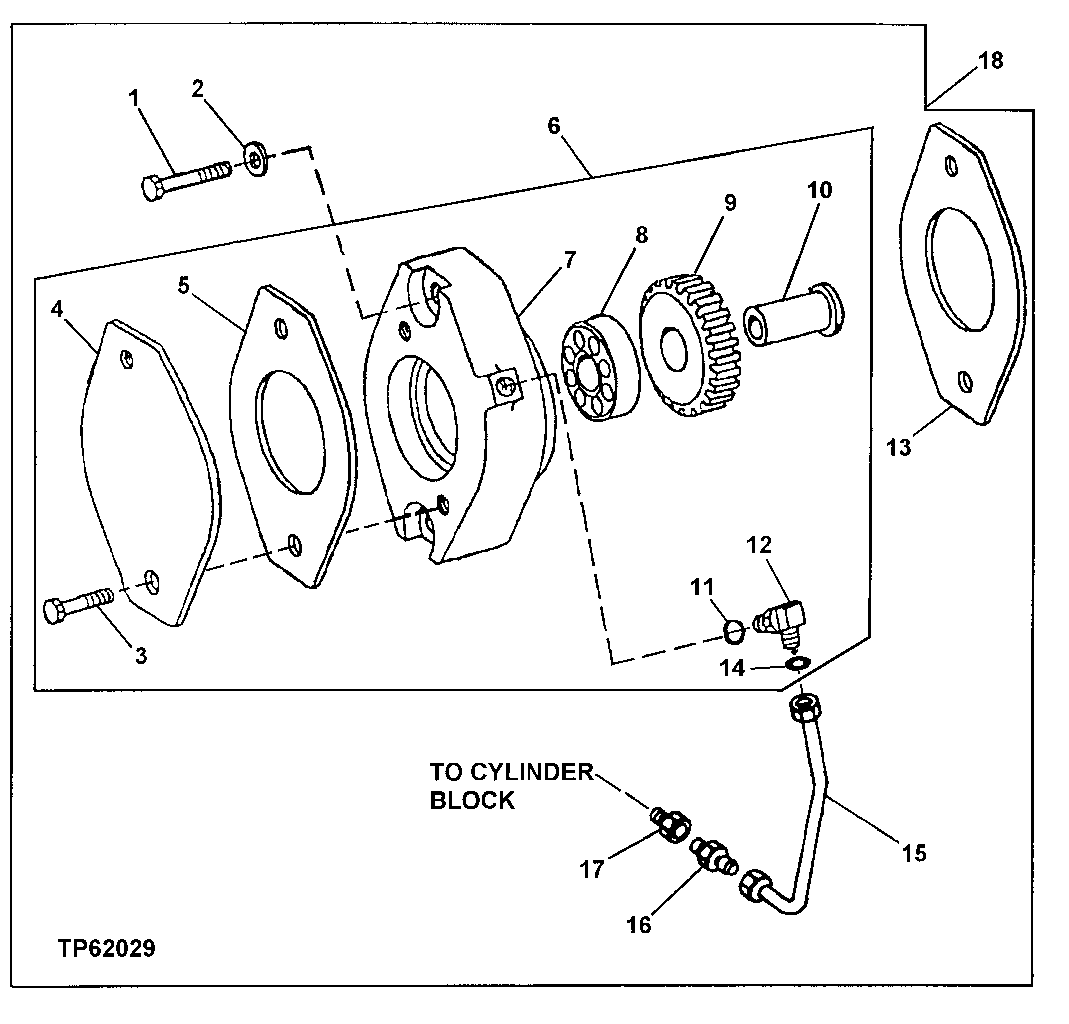

Запчасти John Deere 30LC 230 - Auxiliary Drive Gear Adapter 2160 Vehicle Hydraulics

1

19M7753

Cap Screw

M12 X 70

2шт.

2

24M7047

Washer

13 X 24 X 2.500 mm

2шт.

3

19M7785

Screw

M10 X 25 (WITHOUT ACCESSORIES)

2шт.

4

R85145

Cover

(WITHOUT ACCESSORIES)

1шт.

5

R96935

Gasket

(WITHOUT ACCESSORIES)

1шт.

6

RE500825

Housing

(MARKED R135120)

1шт.

7

Housing

1шт.

8

Roller Bearing

1шт.

9

Gear

1шт.

10

Drive Shaft

1шт.

11

51M7040

O-Ring

9.300 X 2.200 mm

1шт.

12

Elbow Fitting

( 38H5015 NO LONGER AVAILABLE)

1шт.

13

R522690

Gasket

(SUB FOR R134465)

1шт.

14

T77814

O-Ring

1шт.

15

RE500718

Oil Line

1шт.

16

R110664

Coupling

1шт.

17

15H642

Pipe Bushing

1/4"

1шт.

18

RE500884

Adapter Fitting

(KIT)

1шт.
