Запчасти John Deere 30LC 227 - Delivery Lines (Hydraulic Pump To Control Valve) 2160 Vehicle Hydraulics

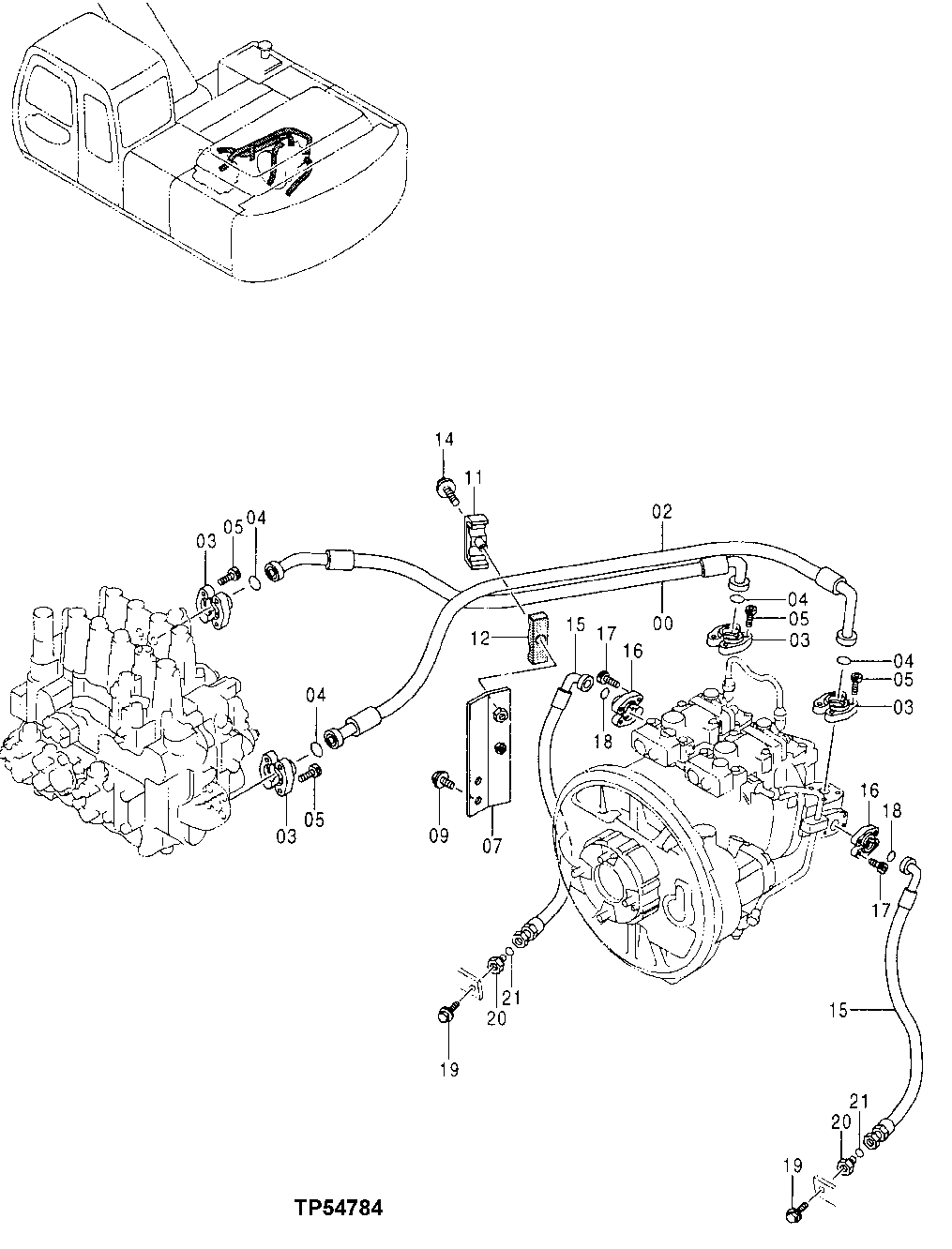

Схема запчастей John Deere 30LC - 227 - Delivery Lines (Hydraulic Pump To Control Valve) 2160 Vehicle Hydraulics

Артикул

Название

Примечание

Количество

0

4385692

Hydraulic Hose

(SUB FOR AT218172)

1шт.

2

4382711

Hydraulic Hose

(SUB FOR AT218173)

1шт.

3

4085560

Flange Fitting

(SUB FOR TH101960)

8шт.

4

T78313

O-Ring

32.920 X 3.530 mm (1.296" X 0.139")

4шт.

5

19M9163

Screw

M12 X 40 (SUB FOR J781240)

16шт.

7

8068994

Bracket

(SUB FOR AT218174)

1шт.

9

19M7402

Cap Screw

M10 X 25

2шт.

12M7066

Lock Washer

10 mm

2шт.

11

8061722

Clamp

(SUB FOR AT214442)

1шт.

AT219493

Clamp

1шт.

12

3072291

Isolator

(SUB FOR AT214427)

1шт.

AT219492

Half Clamp

1шт.

14

19M7403

Cap Screw

M12 X 35

1шт.

15

AT214431

Hydraulic Hose

2шт.

16

T107446

Flange Fitting

4шт.

17

19M8337

Screw

M10 X 30

8шт.

18

T59014

O-Ring

24.994 X 3.531 mm (63/64" X 0.139")

2шт.

19

19M7403

Cap Screw

M12 X 35

2шт.

12H301

Lock Washer

1/2"

2шт.

20

4204882

Fitting Plug

(SUB FOR TH109541)

2шт.

21

T77858

O-Ring

18.771 X 1.778 mm (0.739" X 0.070")

2шт.

Выбрано товаров: 21
