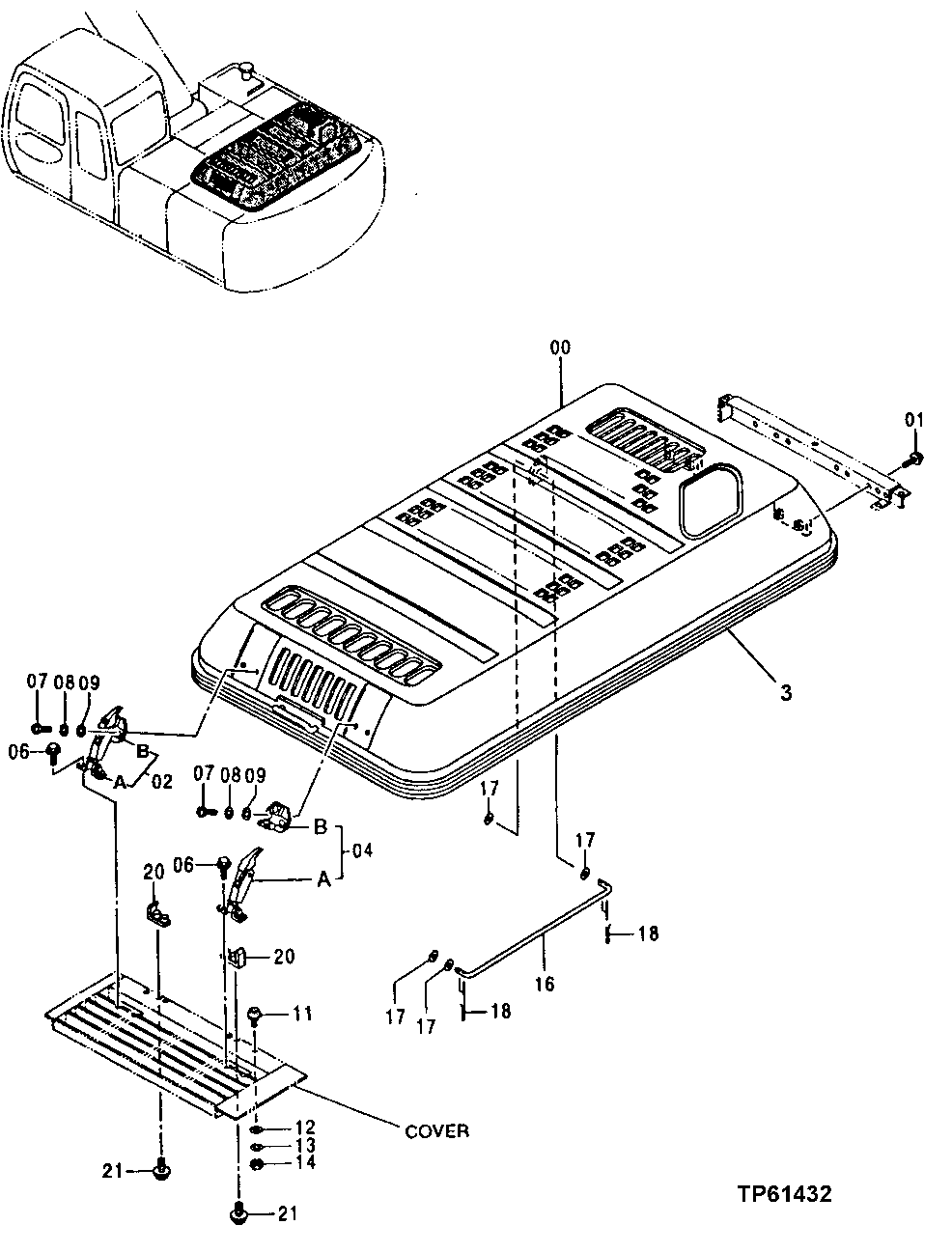

Запчасти John Deere 30LC 214 - Engine Cover 1910 Hood Or Engine Enclosure

0

5005726J

Cover

SUB FOR AT218209 OR 5005726

1шт.

1

19M7662

Cap Screw

M10 X 30

4шт.

12M7066

Lock Washer

10 mm

4шт.

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

2

4361455

Catch

SUB FOR AT215532; SUB FOR TH108769

1шт.

AT194969

Key

SUB FOR AT147803; H800; NOT ILLUSTRATED

1шт.

2A

3040904

Catch

SUB FOR AT126162

1шт.

2B

3021131

Anchor

SUB FOR TH102247

1шт.

3

4387043

Isolator

SUB FOR AT184355; CUT TO LENGTH OF 6120mm

1шт.

4

4361455

Catch

SUB FOR TH108769

1шт.

AT194969

Key

SUB FOR AT147803; H800; NOT ILLUSTRATED

1шт.

4A

3040904

Catch

SUB FOR AT126162

1шт.

4B

3021131

Anchor

SUB FOR TH102247

1шт.

6

19M7881

Screw

M8 X 20

4шт.

Washer

12M7065 NLA

4шт.

7

21M7397

Screw

M8 X 25

4шт.

8

Washer

12M7065 NLA

4шт.

9

24M7055

Washer

8.400 X 16 X 1.600 mm

4шт.

11

4294508

Bumper

SUB FOR AT201032

2шт.

12

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

13

12M7066

Lock Washer

10 mm

2шт.

14

14M7274

Nut

M10

2шт.

16

4278783

Bracket

SUB FOR AT201025

1шт.

17

24M7053

Washer

17 X 30 X 3 mm

4шт.

18

M40461

Spring Locking Pin

4шт.

20

AT307244

Bracket

SUB FOR AT171615 OR 9743889

2шт.

21

19M7402

Cap Screw

M10 X 25

4шт.

12M7066

Lock Washer

10 mm

4шт.

24M7028

Washer

10.500 X 20 X 2 mm

4шт.
