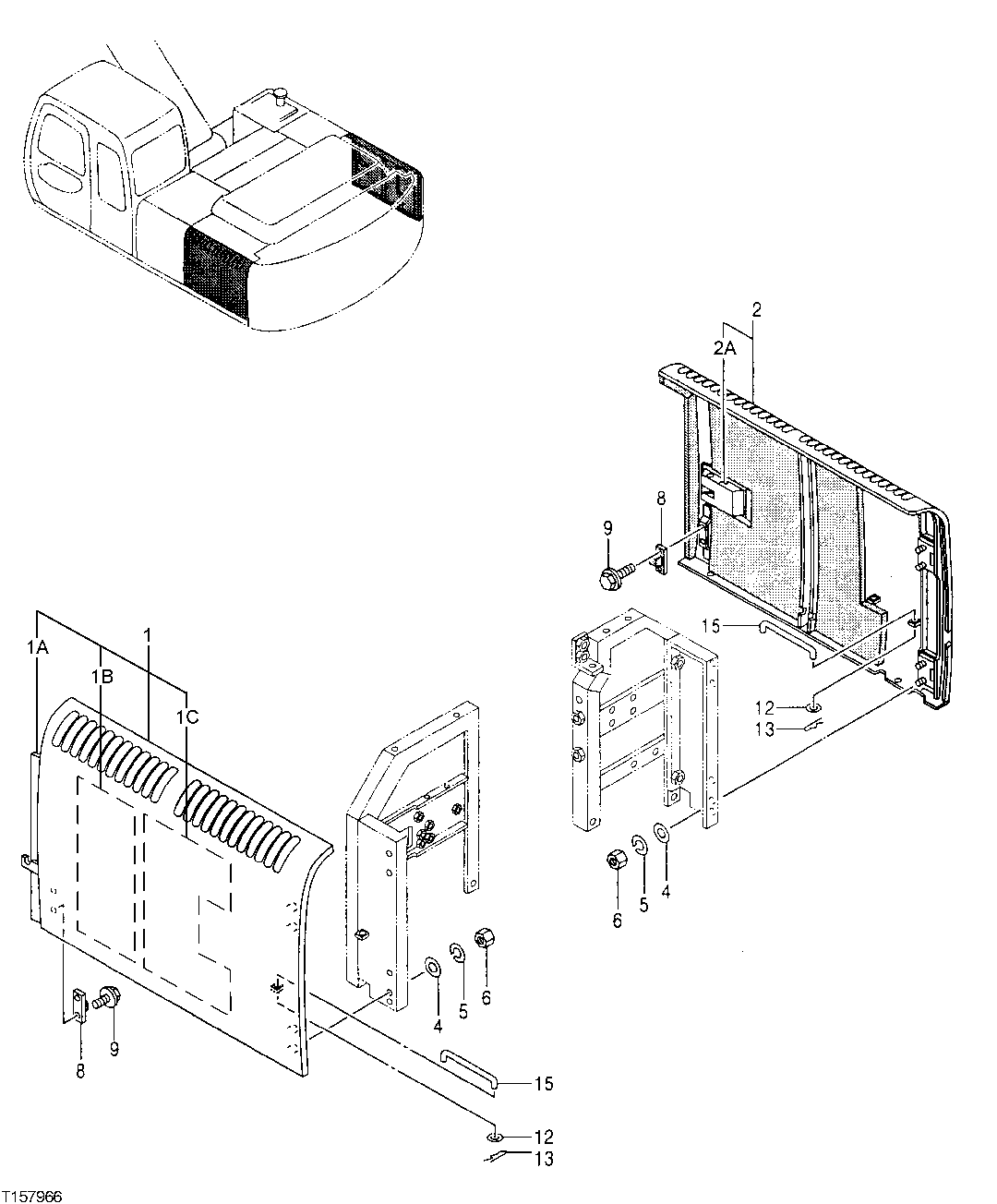

Запчасти John Deere 30LC 211 - Cover 1910 Hood Or Engine Enclosure

1

5004714

Door

(SUB FOR AT217842)

1шт.

1A

4380815

Isolator

1шт.

1B

4380237

Isolator

1шт.

1C

4380236

Isolator

1шт.

2

5005678

Door

(SUB FOR AT218208)

1шт.

2A

4361763

Lock

(SUB FOR AT214010)

1шт.

AT194969

Key

(SUB FOR AT147803)

1шт.

4

24M7028

Washer

10.500 X 20 X 2 mm

8шт.

5

12M7066

Lock Washer

10 mm

8шт.

6

14M7274

Nut

M10

8шт.

8

4175254

Stop

(SUB FOR AT154916)

2шт.

9

19M7923

Cap Screw

M6 X 12

4шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

4шт.

12M7006

Lock Washer

6 mm

4шт.

12

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

13

H132922

Cotter Pin

2шт.

15

4385171

Pin Fastener

(SUB FOR AT217838)

2шт.
